Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

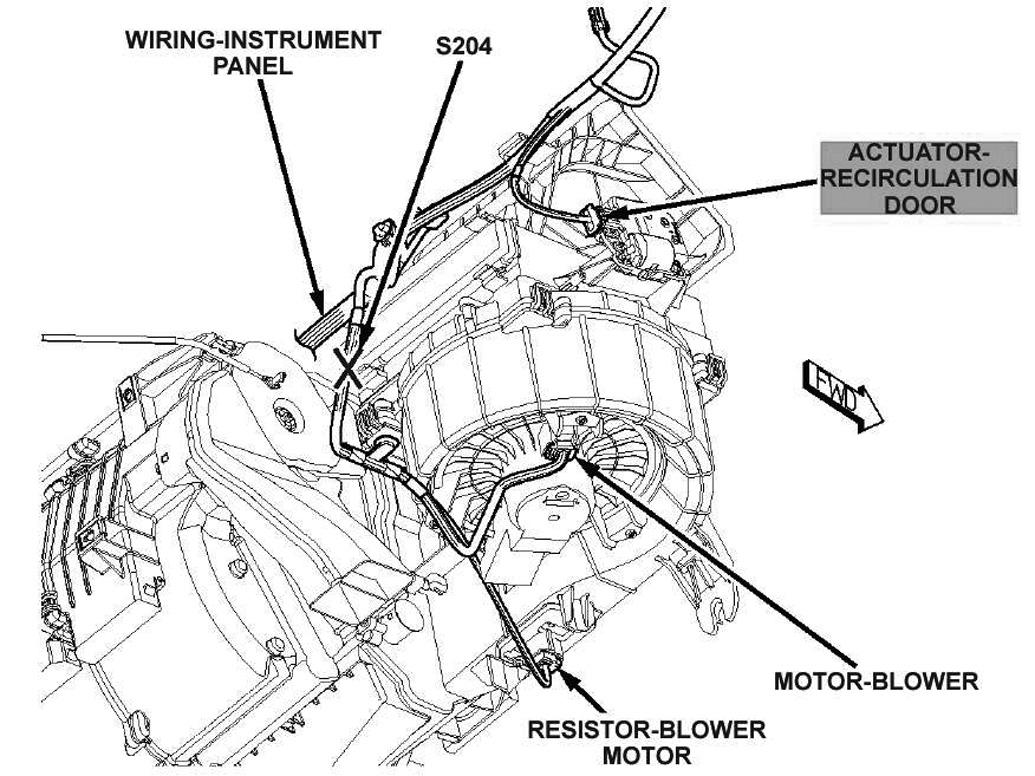

Fig 1: Under Right Side Of Dash

G00459082

Courtesy of CHRYSLER LLC

Fig 2: Left Side Of Dash

G00459083

Courtesy of CHRYSLER LLC

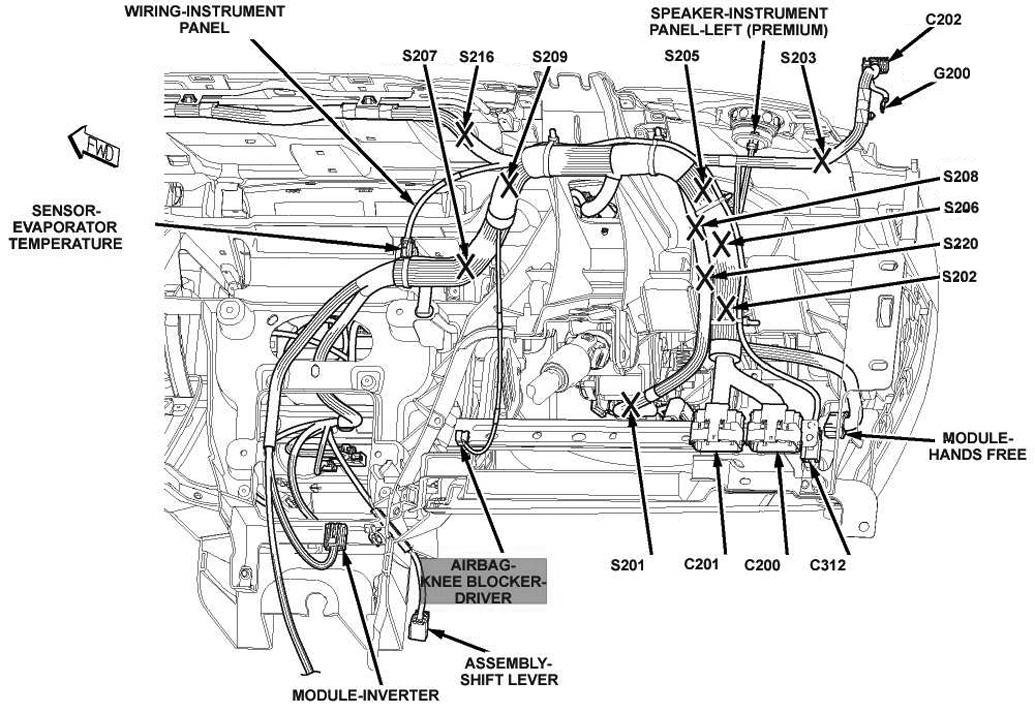

Fig 3: Behind Left Side Of Dash

G00459084

Courtesy of CHRYSLER LLC

Fig 4: Behind Left End Of Dash & Kick Panel

G00459087

Courtesy of CHRYSLER LLC

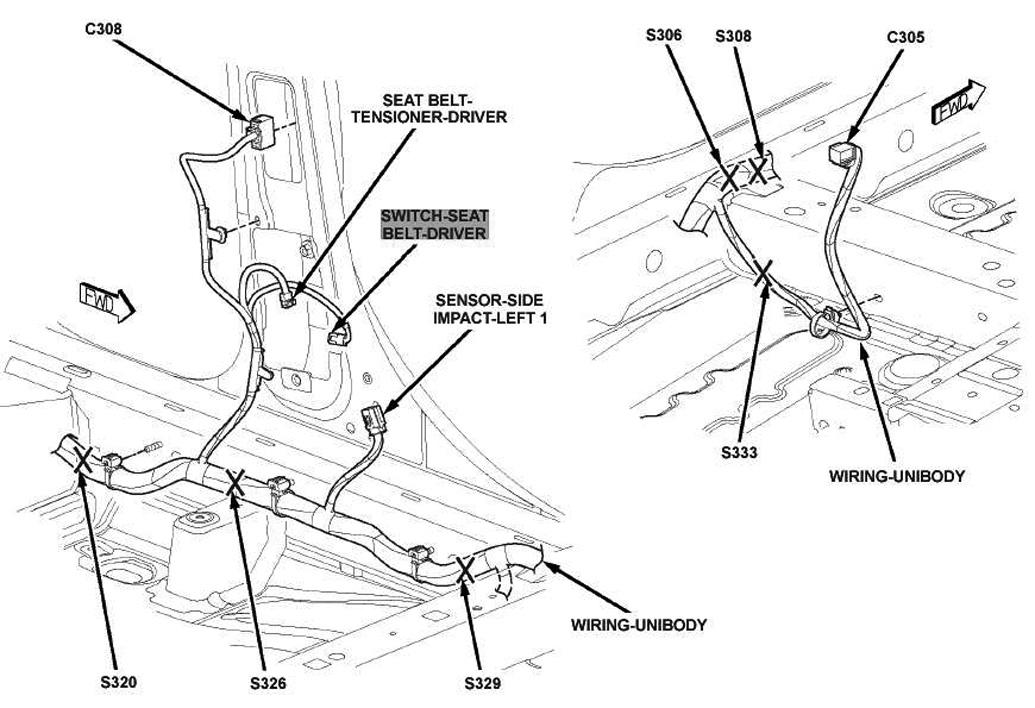

Fig 5: Left "B" Pillar

G00459081

Courtesy of CHRYSLER LLC

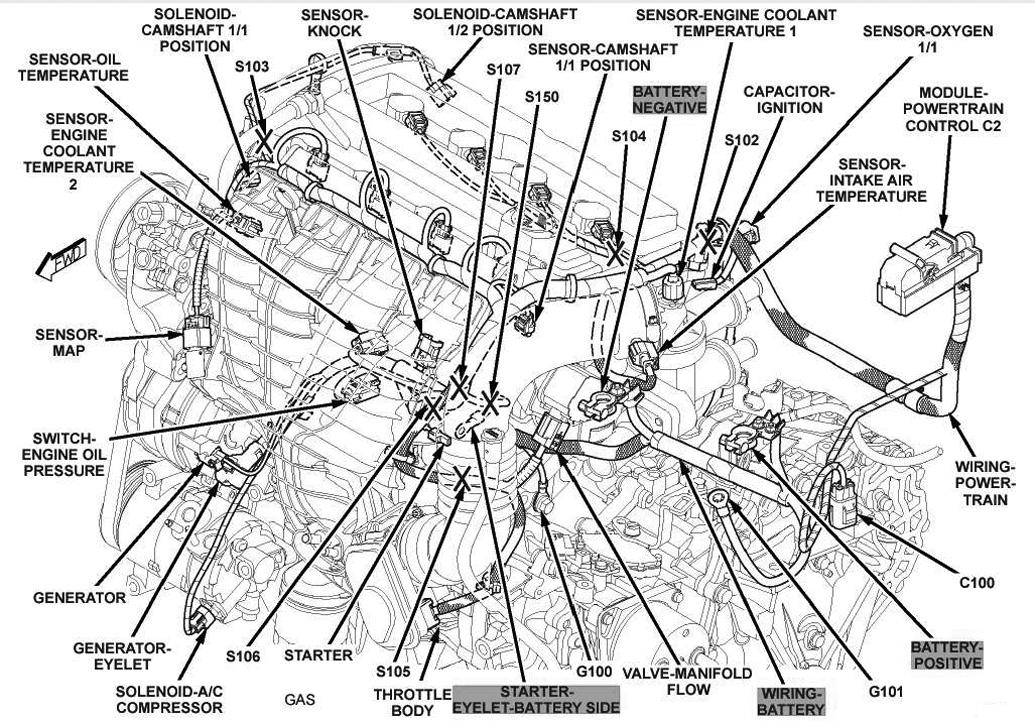

Fig 6: Engine (Except Turbo)

G00459090

Courtesy of CHRYSLER LLC

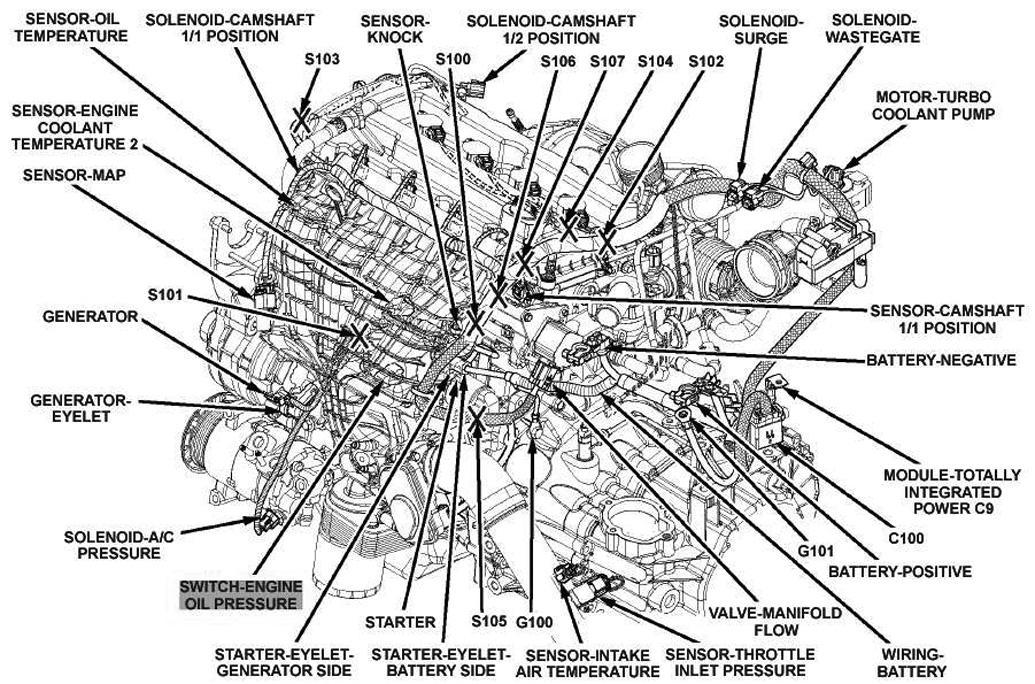

Fig 7: Engine (Turbo)

G00459224

Courtesy of CHRYSLER LLC

Fig 8: Under Rear Of Vehicle

G00459225

Courtesy of CHRYSLER LLC

Fig 9: Left Side Of Engine Compartment

G00459226

Courtesy of CHRYSLER LLC

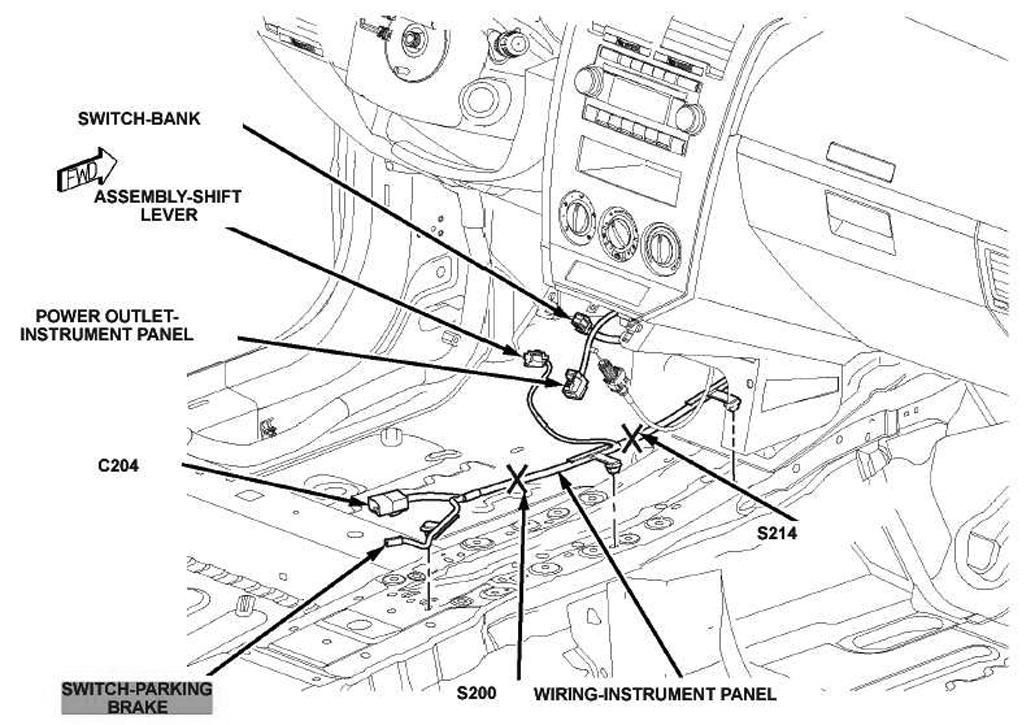

Fig 10: Under Center Console

G00459227

Courtesy of CHRYSLER LLC

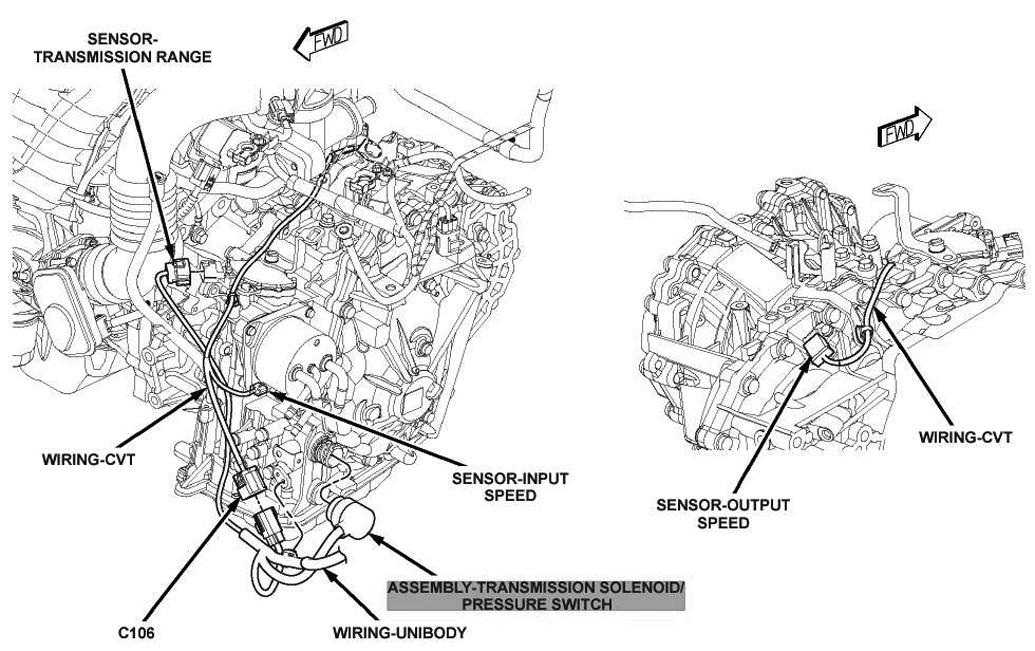

Fig 11: Transmission

G00459088

Courtesy of CHRYSLER LLC

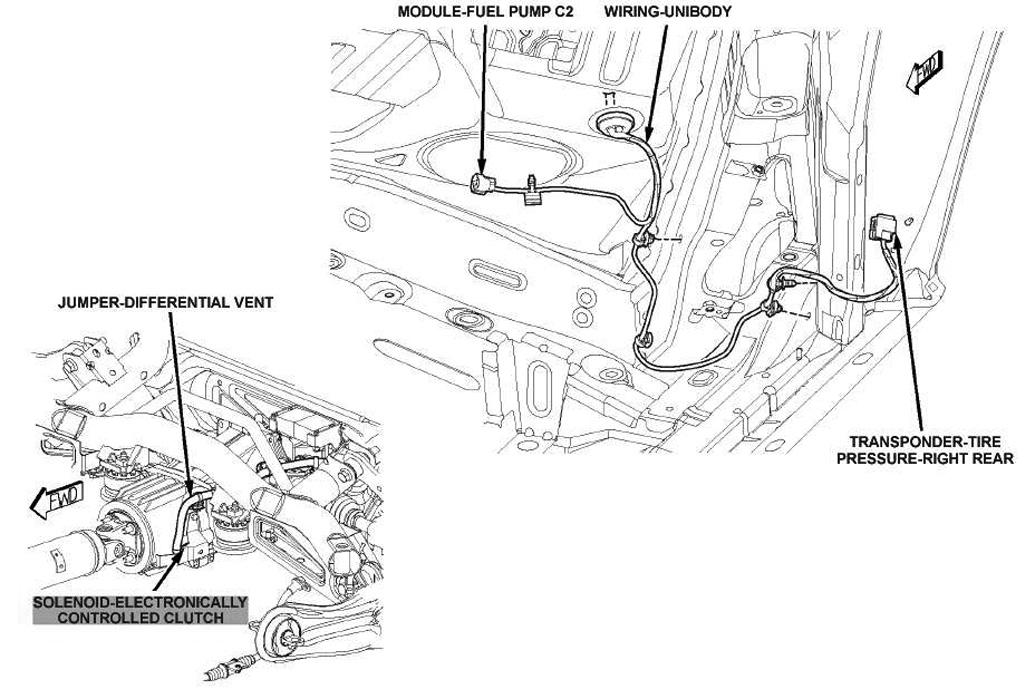

Fig 12: Under Rear Of Vehicle

G00459228

Courtesy of CHRYSLER LLC

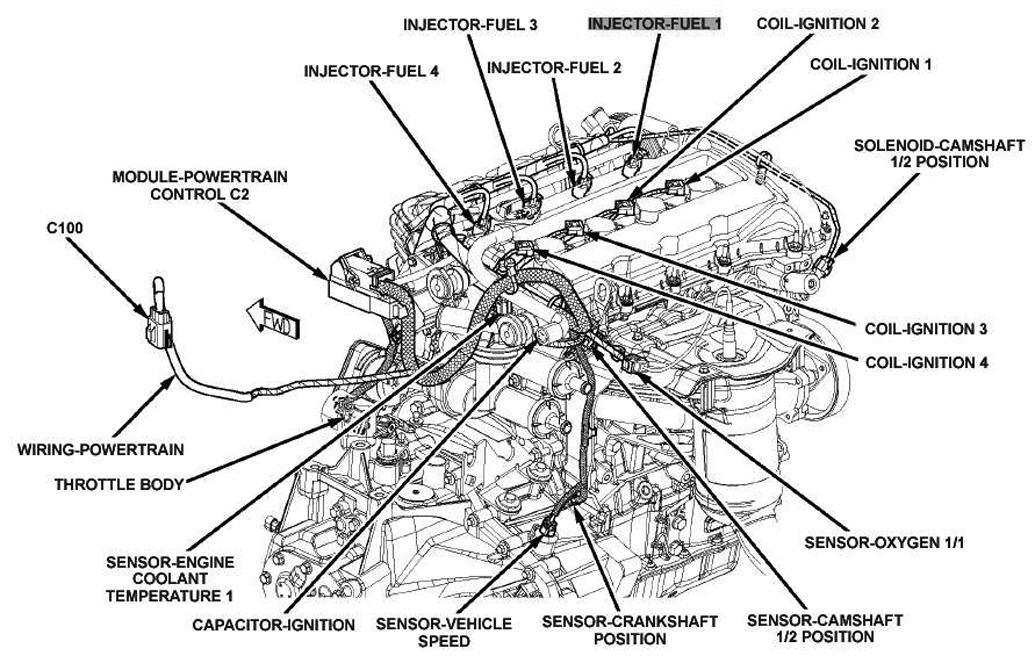

Fig 13: Top Of Engine

G00459229

Courtesy of CHRYSLER LLC

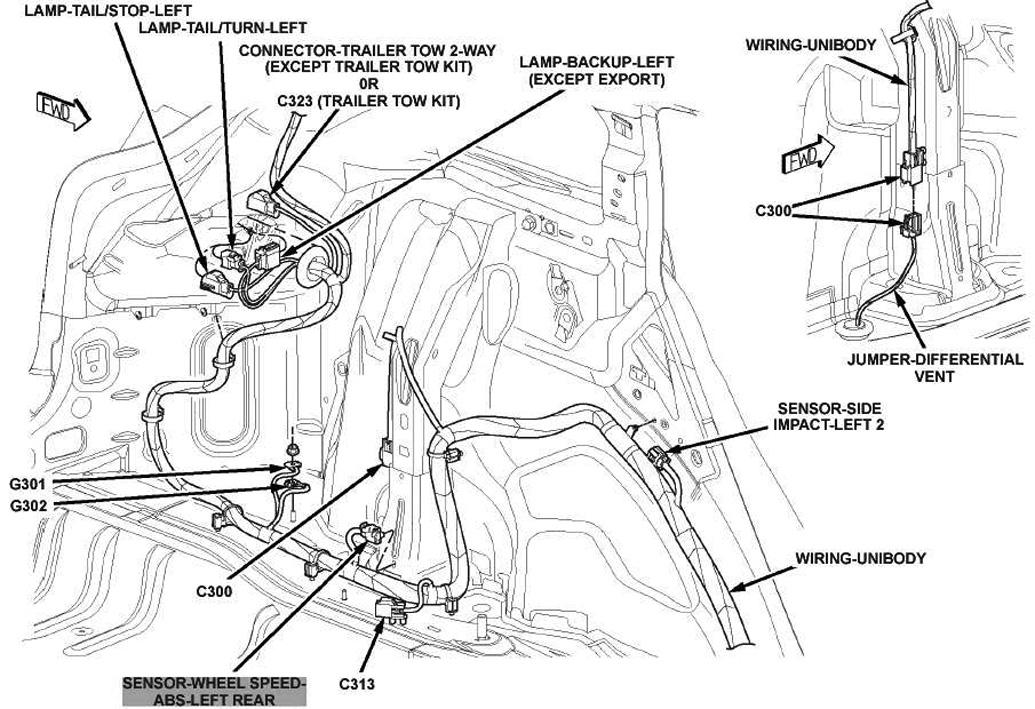

Fig 14: Left Rear Of Vehicle

G00459230

Courtesy of CHRYSLER LLC

Fig 15: Right Side Of Engine Compartment

G00459231

Courtesy of CHRYSLER LLC

Fig 16: Overhead Console

G00459232

Courtesy of CHRYSLER LLC

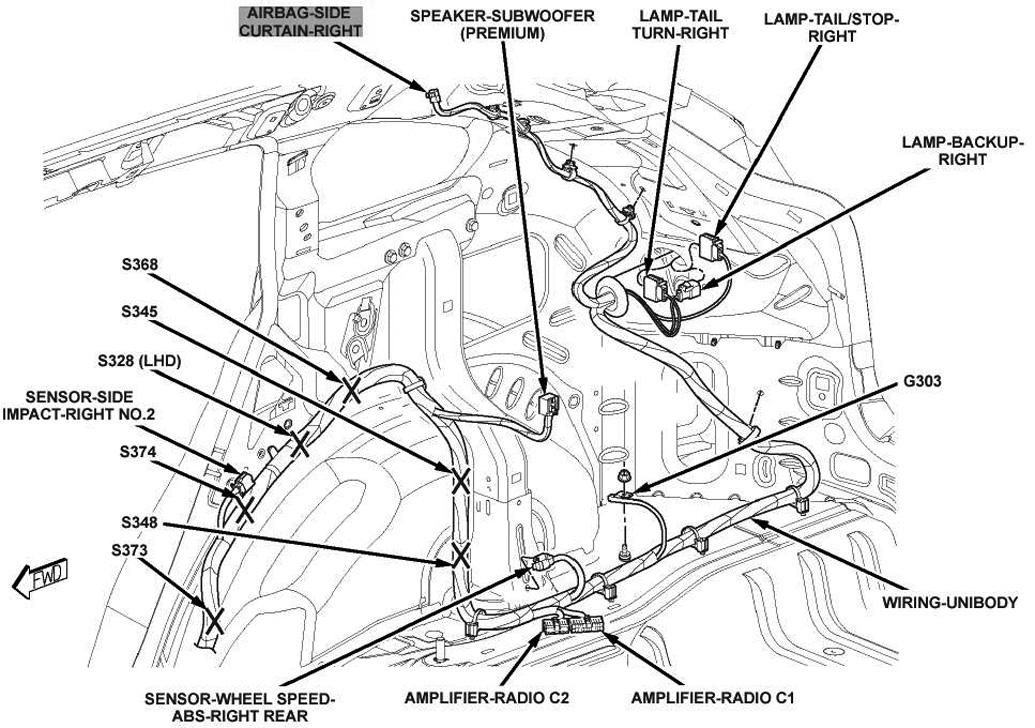

Fig 17: Right Rear Of Vehicle

G00459086

Courtesy of CHRYSLER LLC

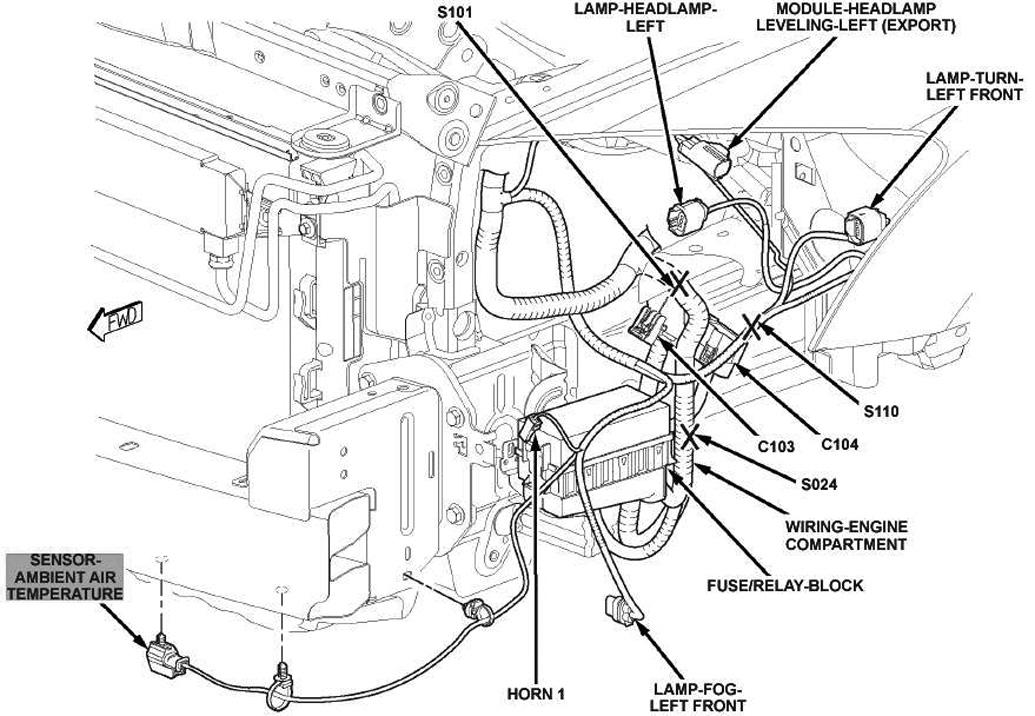

Fig 18: Left Front Of Engine Compartment

G00459233

Courtesy of CHRYSLER LLC

Fig 19: Center & Right Side Of Dash

G00459234

Courtesy of CHRYSLER LLC

Fig 20: Front Of Engine Compartment

G00459235

Courtesy of CHRYSLER LLC

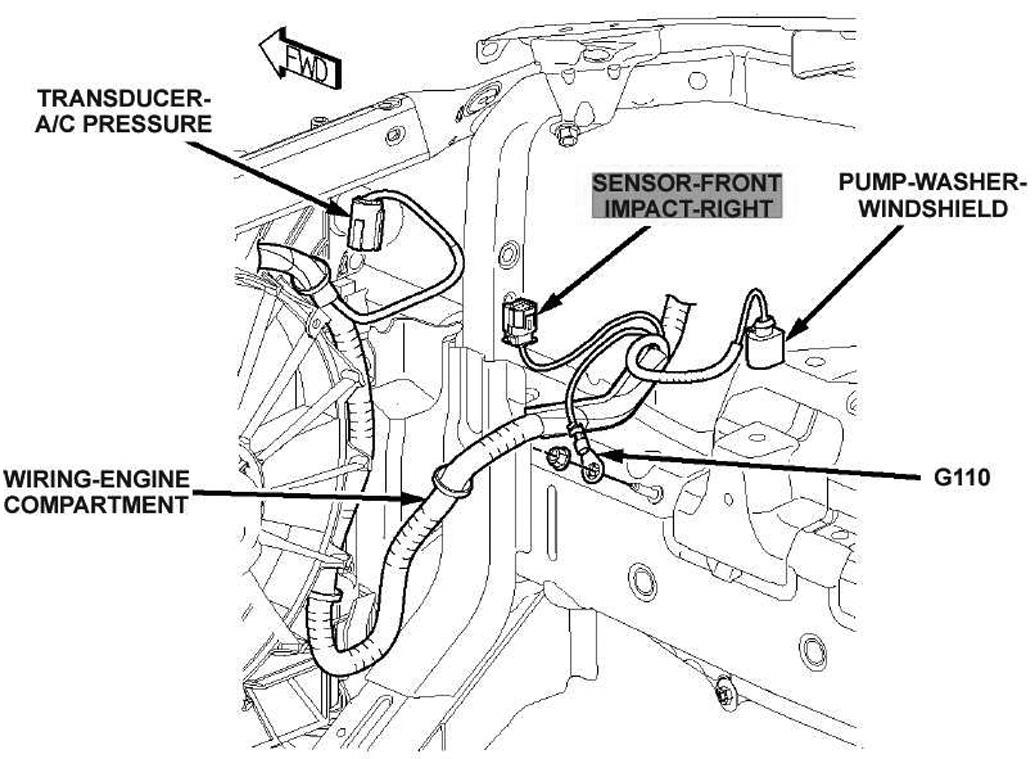

Fig 21: Right Front Of Engine Compartment

G00459236

Courtesy of CHRYSLER LLC

Fig 22: Under Driver's Seat

G00459237

Courtesy of CHRYSLER LLC

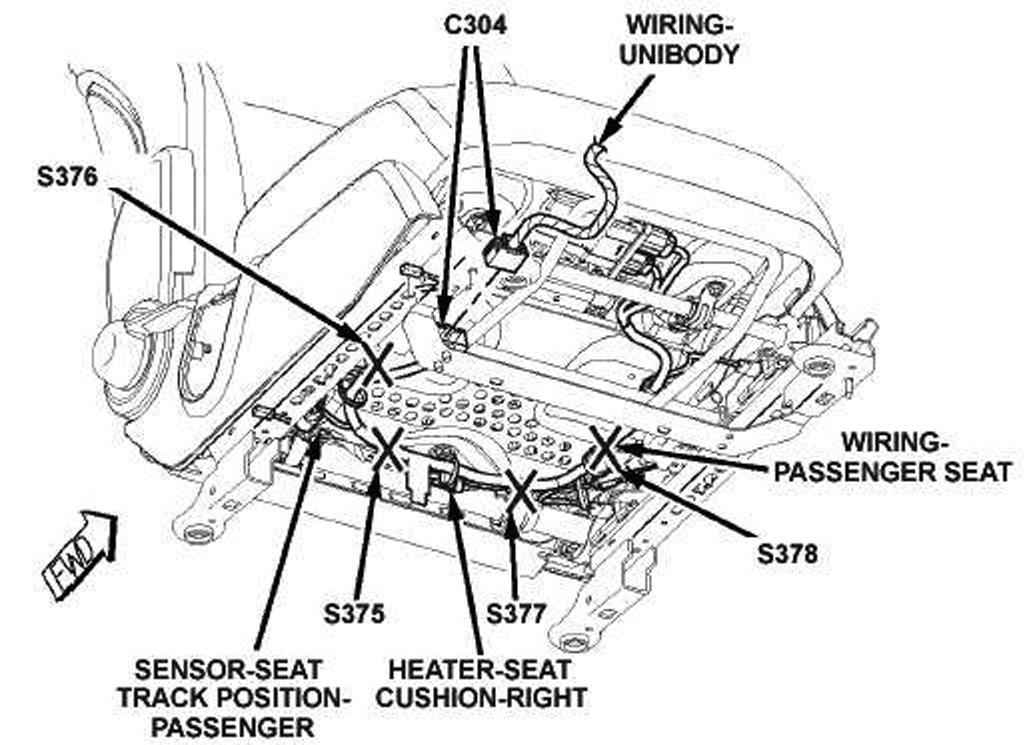

Fig 23: Under Front Passenger's Seat

G00459238

Courtesy of CHRYSLER LLC

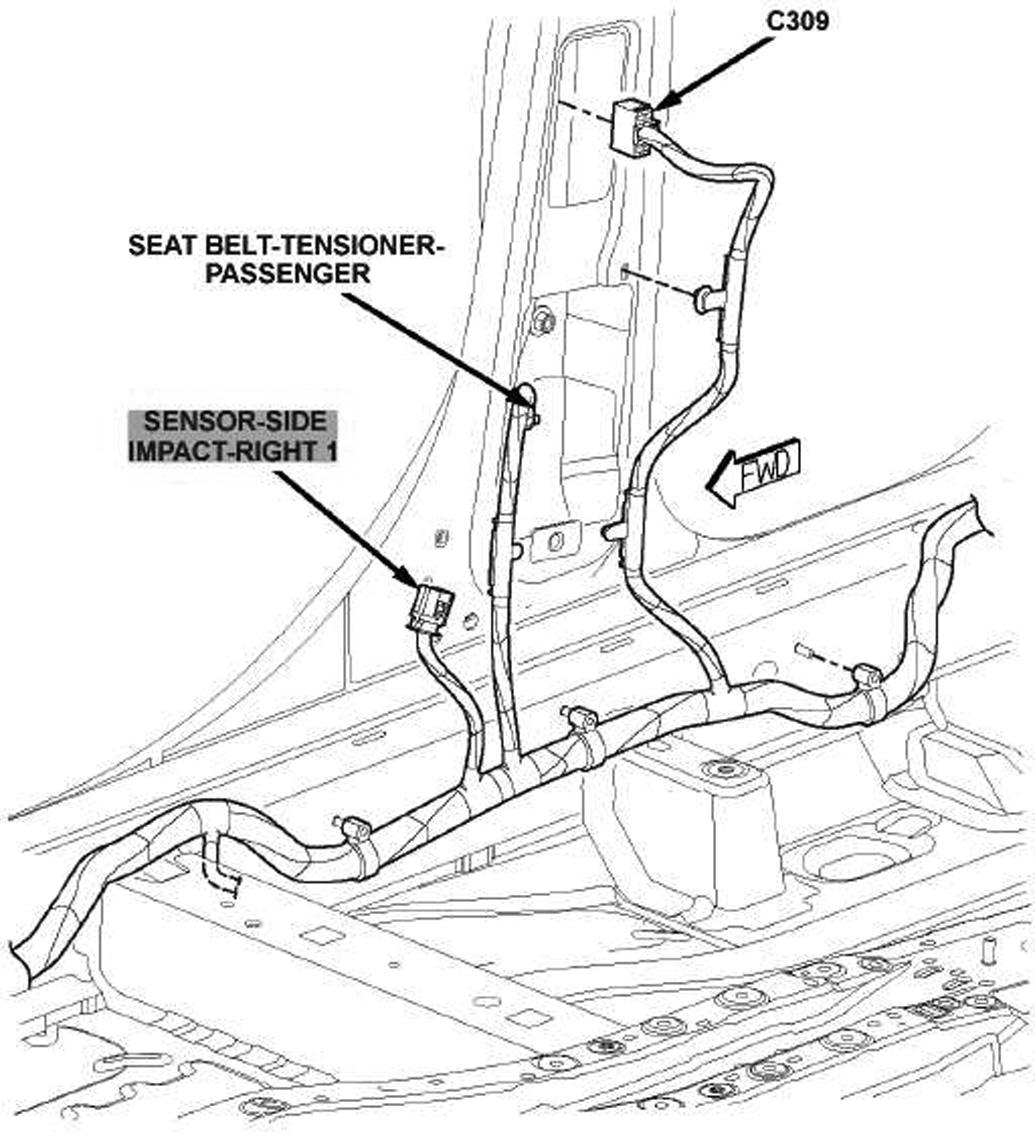

Fig 24: Right "B" Pillar

G00459239

Courtesy of CHRYSLER LLC

Fig 25: Steering Column

G00459240

Courtesy of CHRYSLER LLC

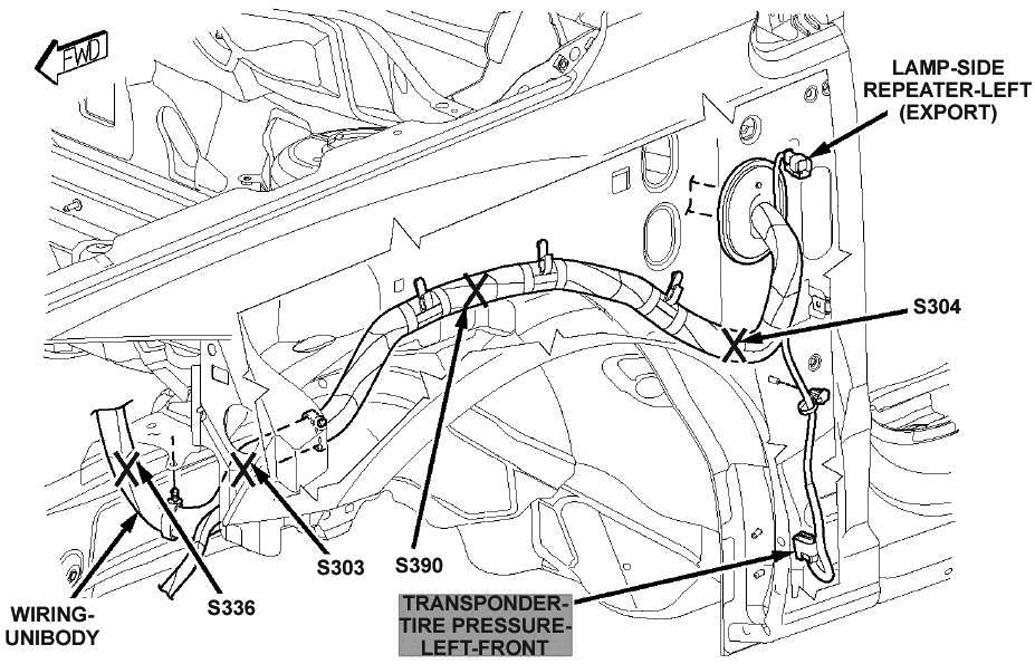

Fig 26: Left Front Wheelwell

G00459241

Courtesy of CHRYSLER LLC

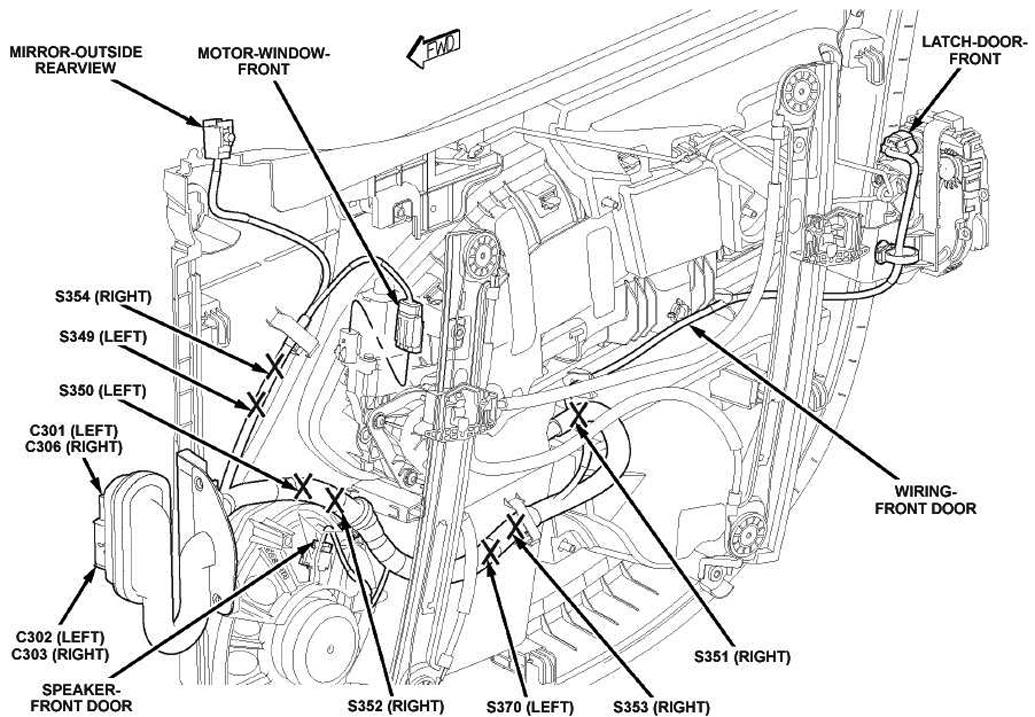

Fig 27: Front Doors

G00459242

Courtesy of CHRYSLER LLC

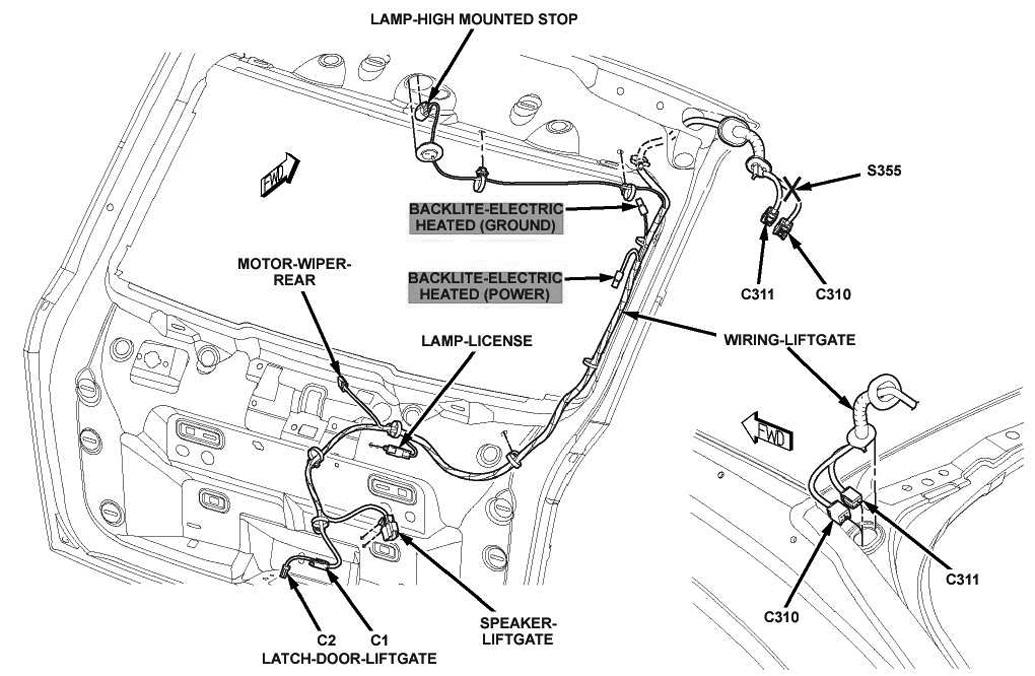

Fig 28: Liftgate

G00459089

Courtesy of CHRYSLER LLC

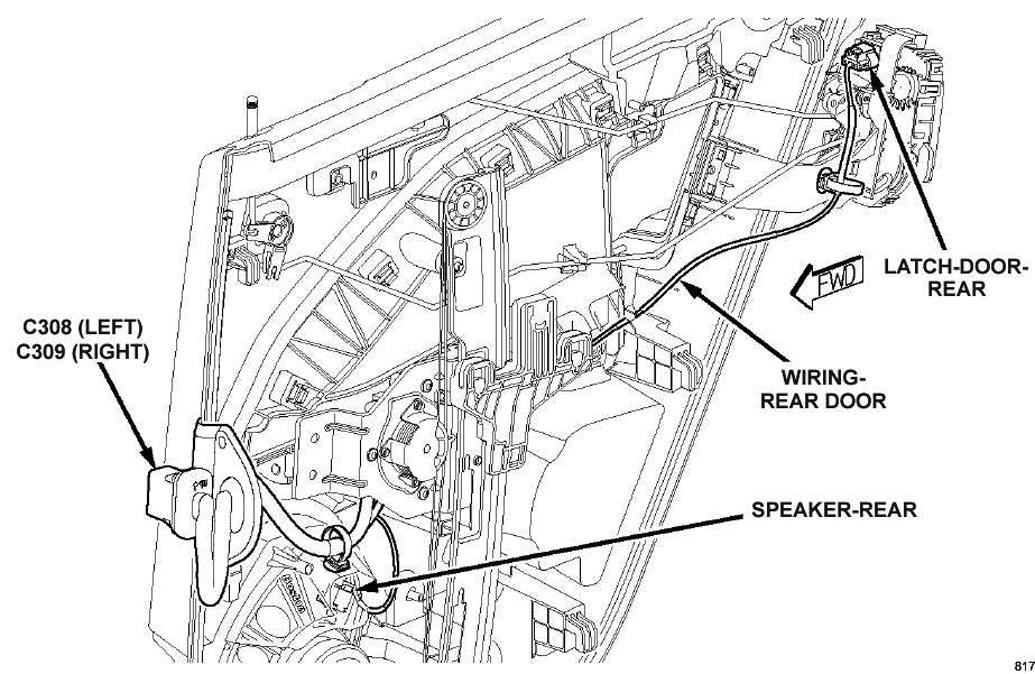

Fig 29: Rear Doors

G00459243

Courtesy of CHRYSLER LLC

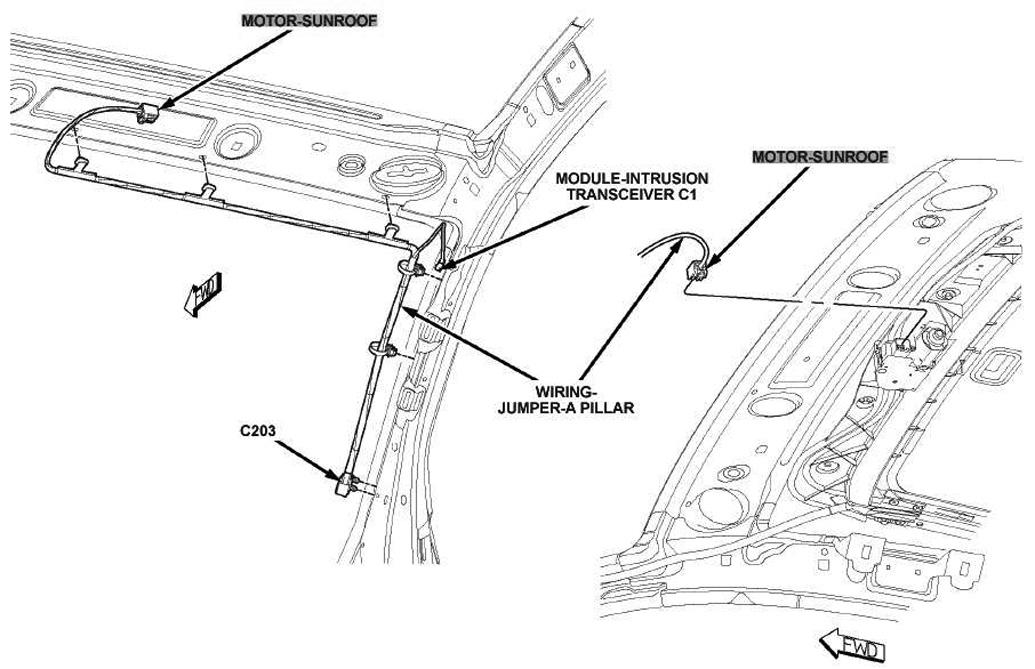

Fig 30: Roof

G00459244

Courtesy of CHRYSLER LLC

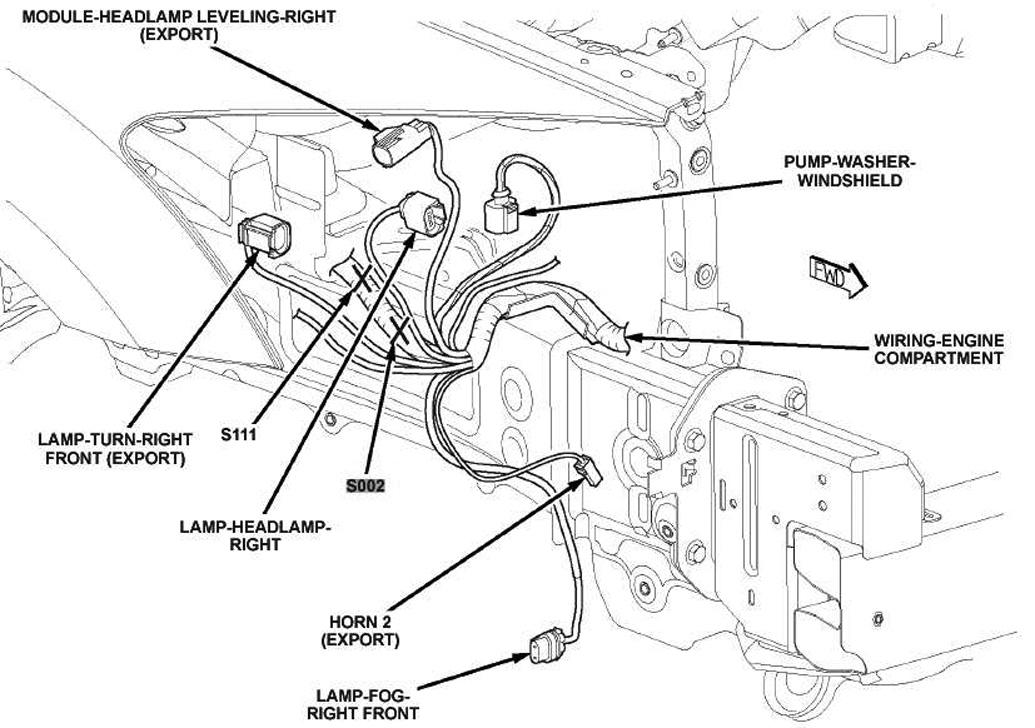

Fig 31: Right Front Of Engine Compartment

G00459245

Courtesy of CHRYSLER LLC

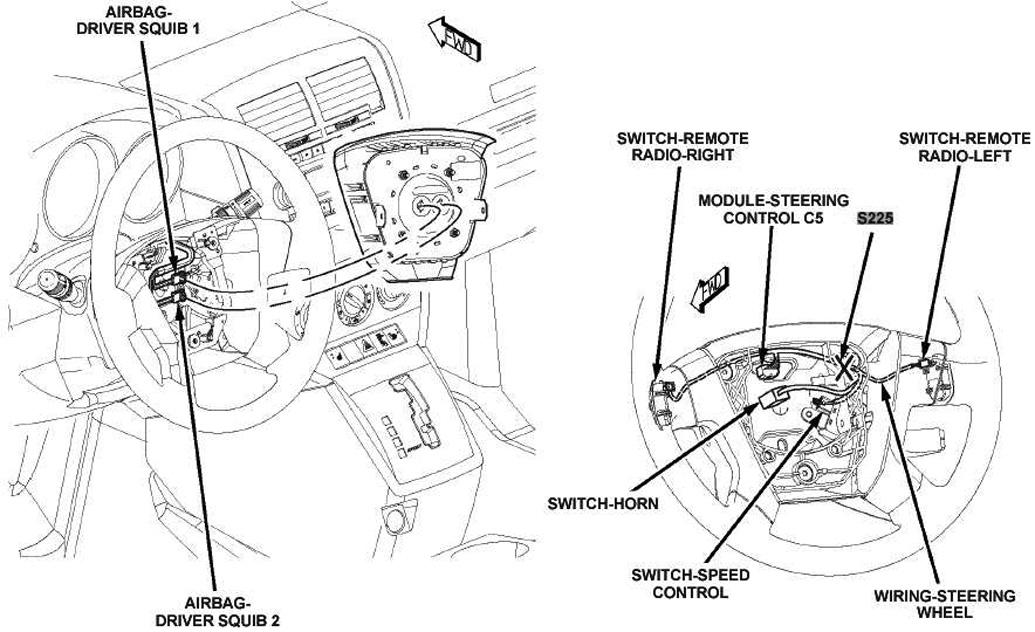

Fig 32: Steering Wheel

G00459246

Courtesy of CHRYSLER LLC

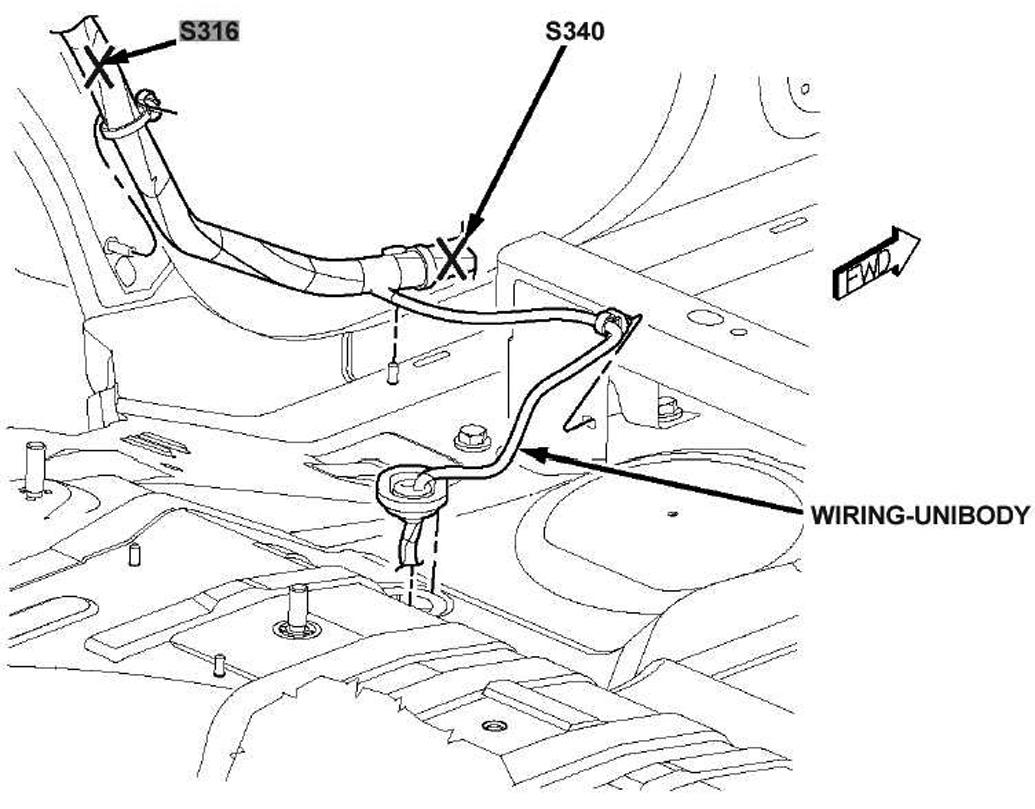

Fig 33: Near Base Of Left "C" Pillar

G00459247

Courtesy of CHRYSLER LLC

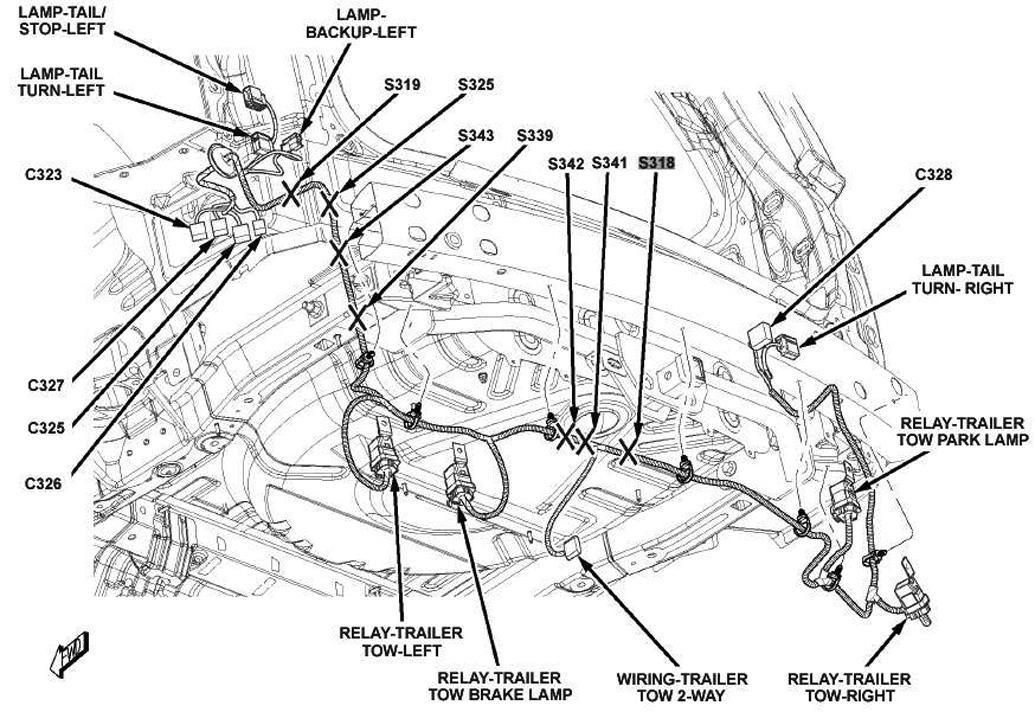

Fig 34: Under Rear Of Vehicle

G00459248

Courtesy of CHRYSLER LLC

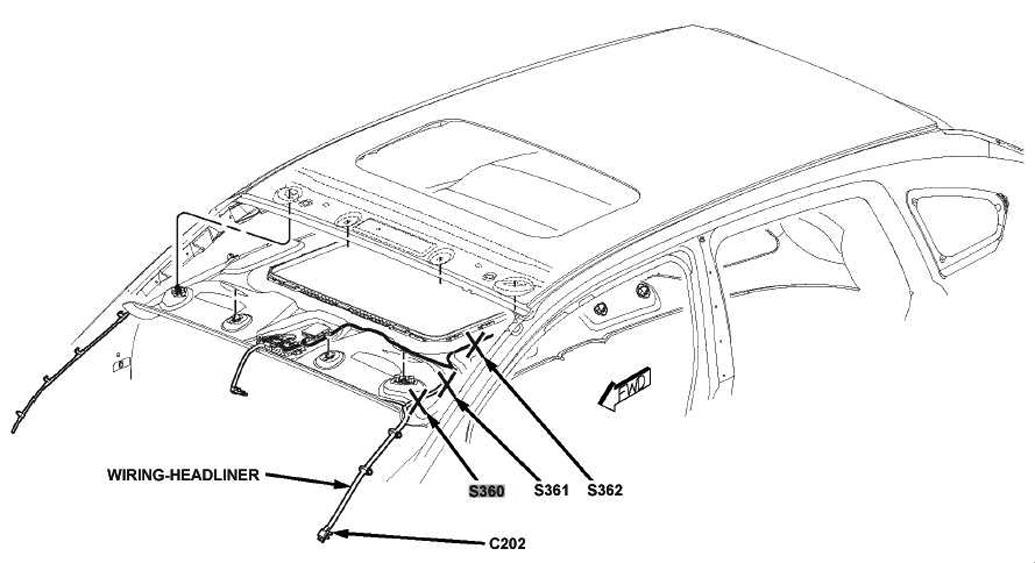

Fig 35: Front Of Roof

G00459249

Courtesy of CHRYSLER LLC

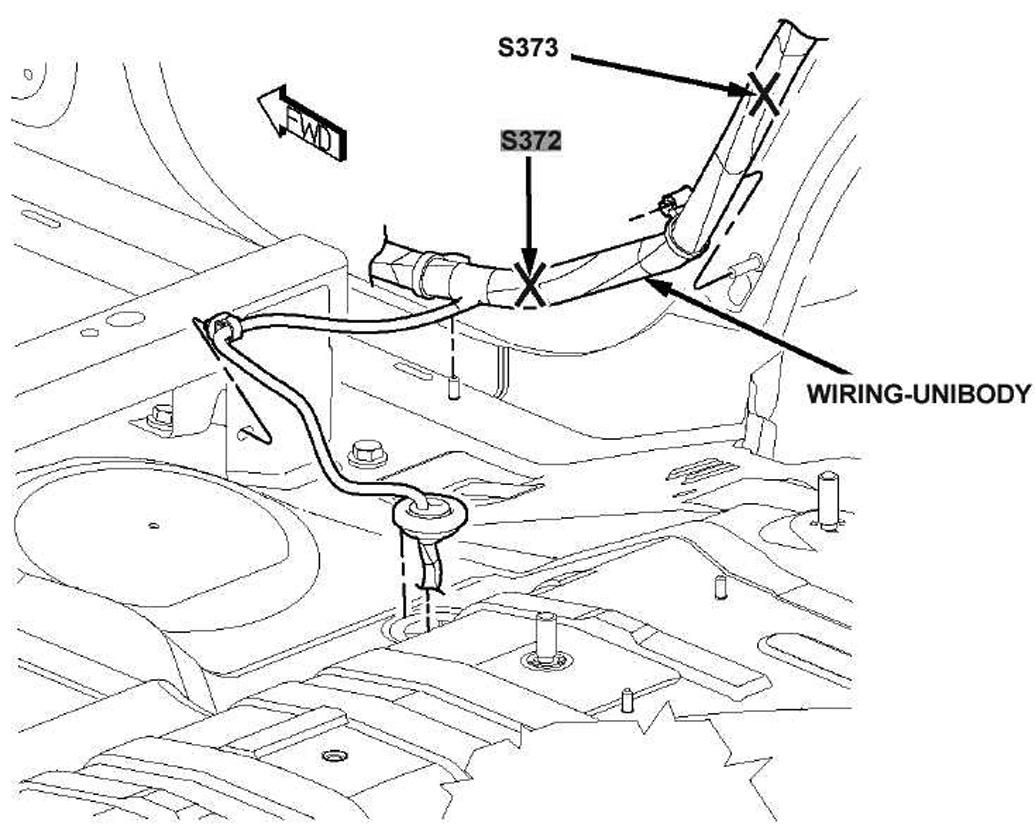

Fig 36: Near Base Of Right "C" Pillar

G00459250

Courtesy of CHRYSLER LLC

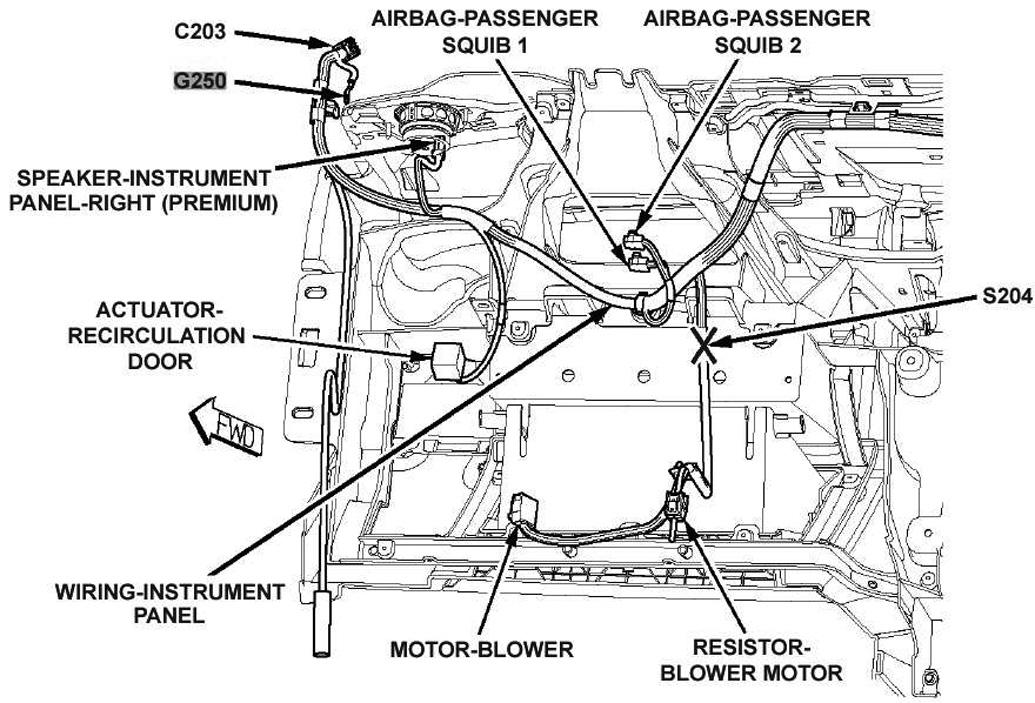

Fig 37: Behind Right Side Of Dash

G00459251

Courtesy of CHRYSLER LLC

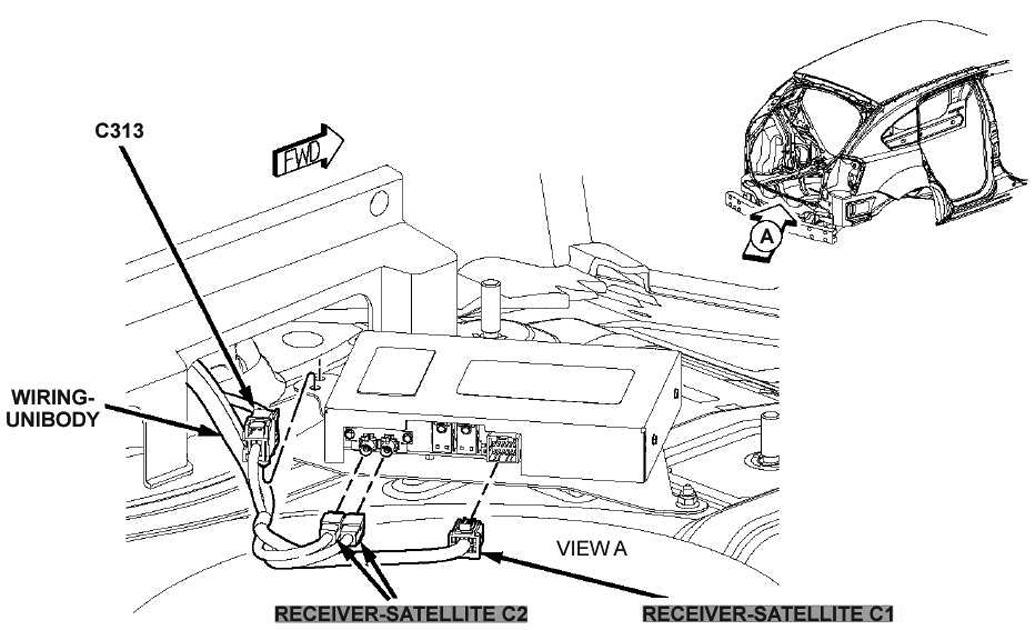

Fig 38: Left Side Of Luggage Compartment

G00459252

Courtesy of CHRYSLER LLC

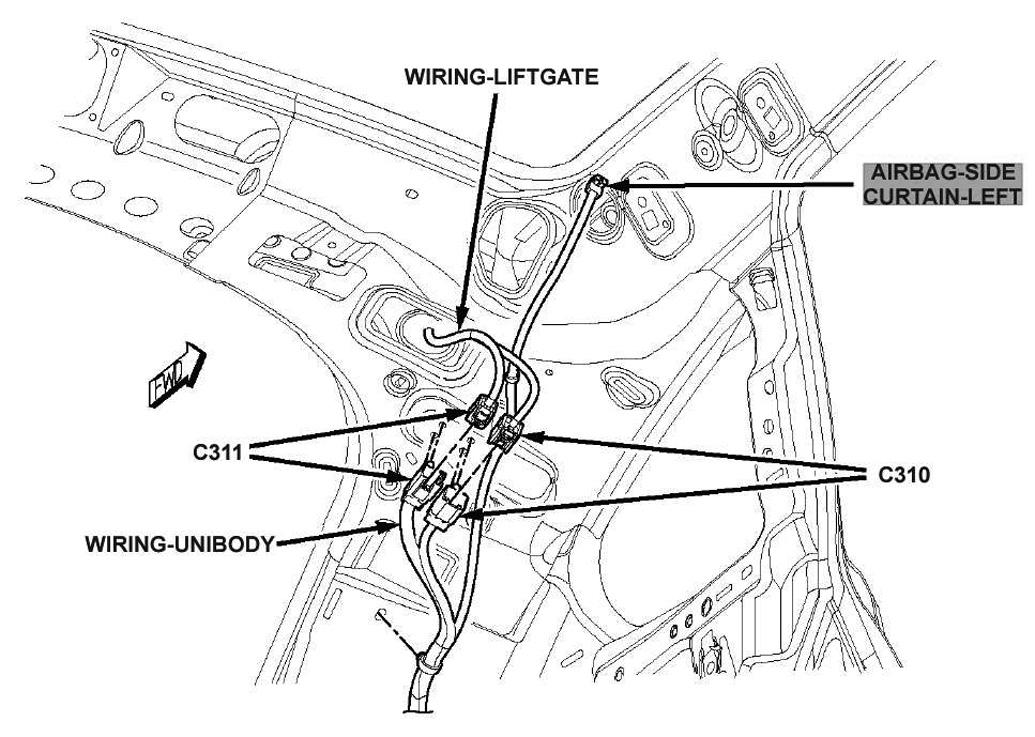

Fig 39: Top Of Left "D" Pillar

G00459085

Courtesy of CHRYSLER LLC

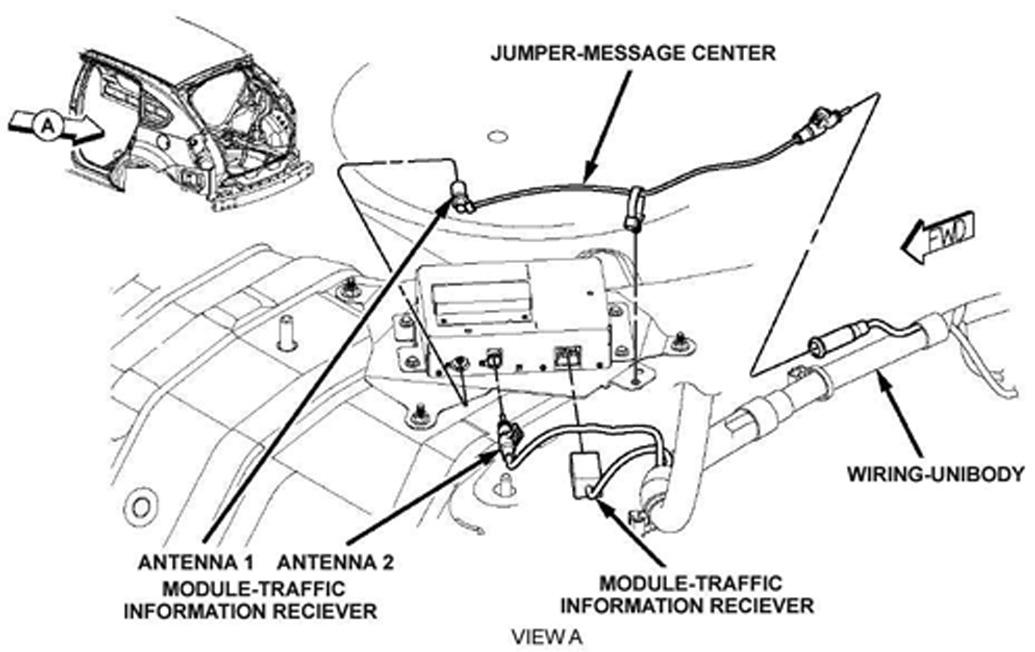

Fig 40: Under Left Side Of Rear Seats

G00459253

Courtesy of CHRYSLER LLC

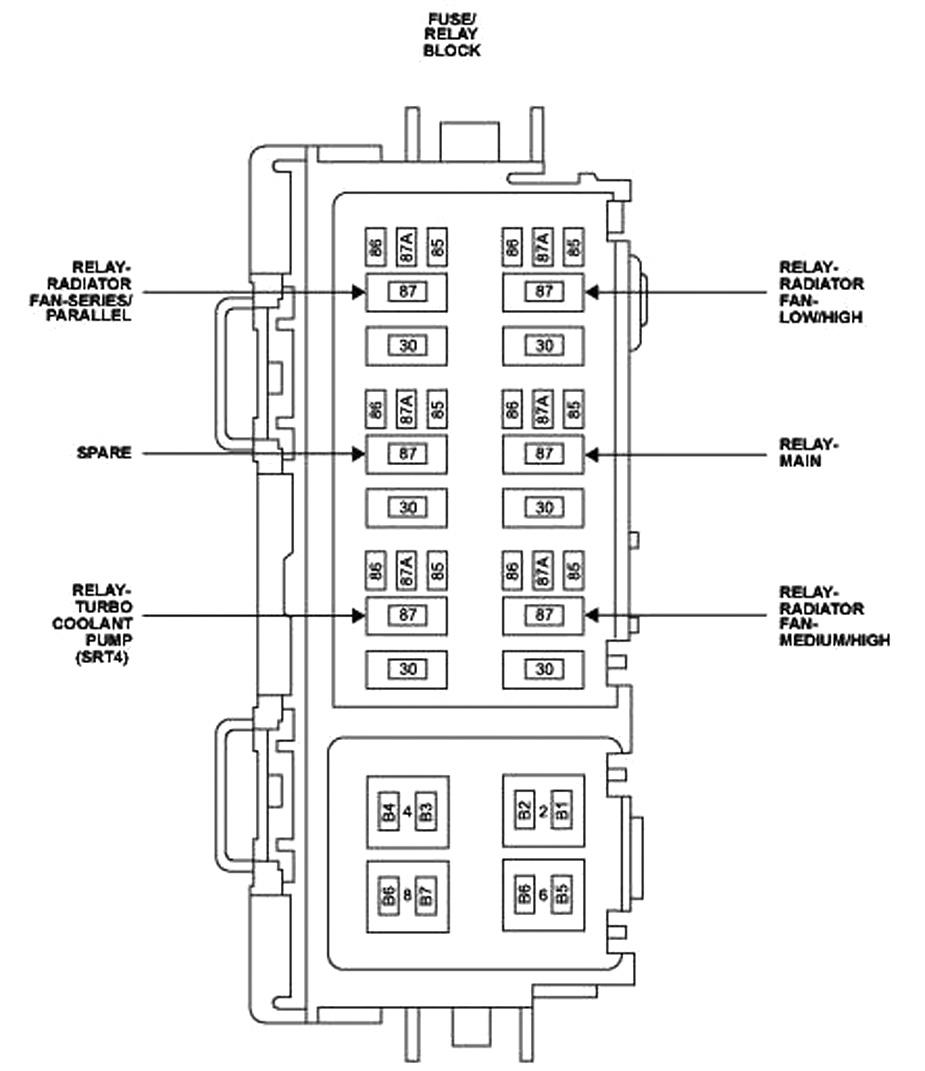

Fig 41: Fuse/Relay Block

G00459254

Courtesy of CHRYSLER LLC
