Power Distribution: Relay: Installation

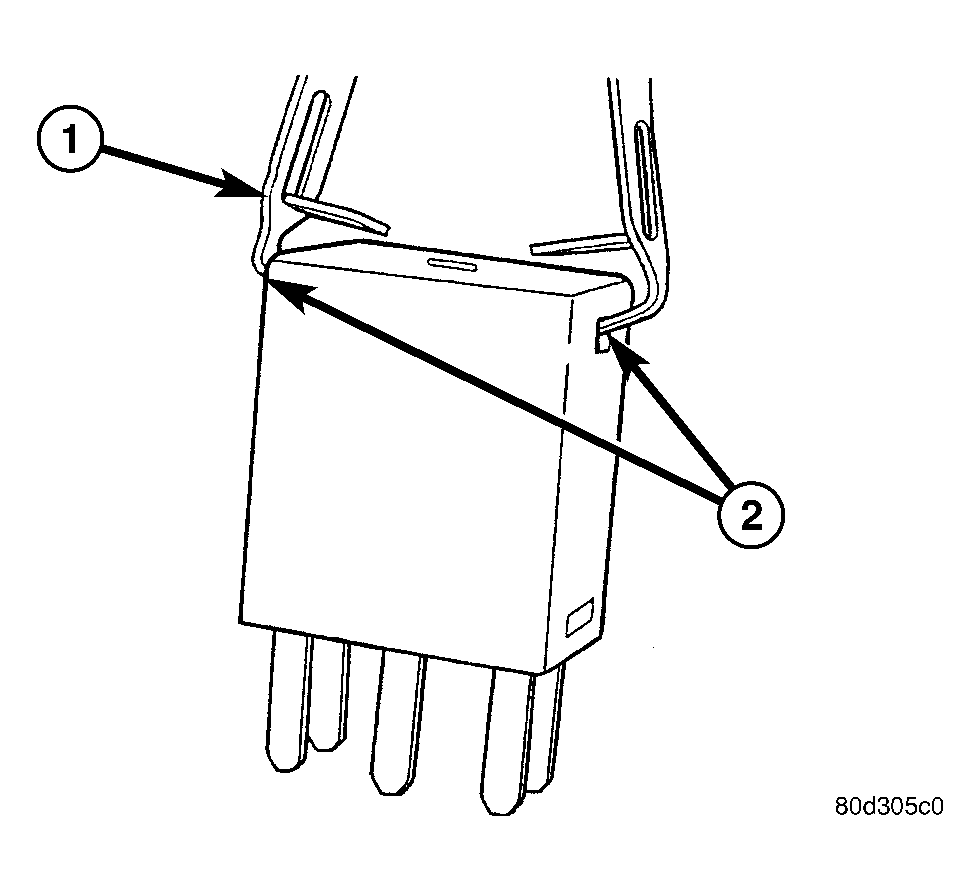

Fig 1: Special Tool C-4817 & Relay
GC0023112Courtesy of CHRYSLER LLC
  1. Align relay (2) with Totally Integrated Power Module (TIPM) and press into position.
  2. Install cover to TIPM.
  3. Connect battery negative cable.
