Power Instrument Panel Outlet Connector End View

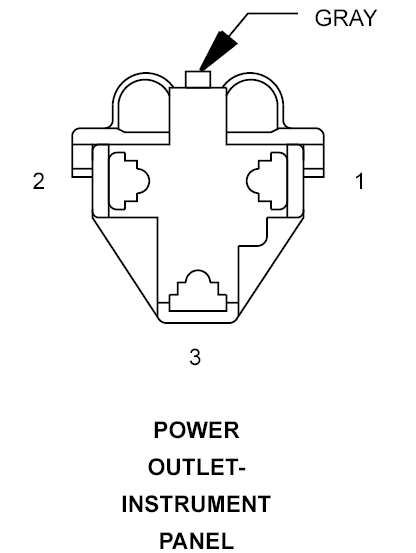

POWER OUTLET-INSTRUMENT PANEL - GRAY 3-WAY

GPM880230Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F986 20PK/BK FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 - -
3 Z940 20BK/LG GROUND
