Caliber R/T, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
License Lamp Connector End View
License Lamp Connector End View

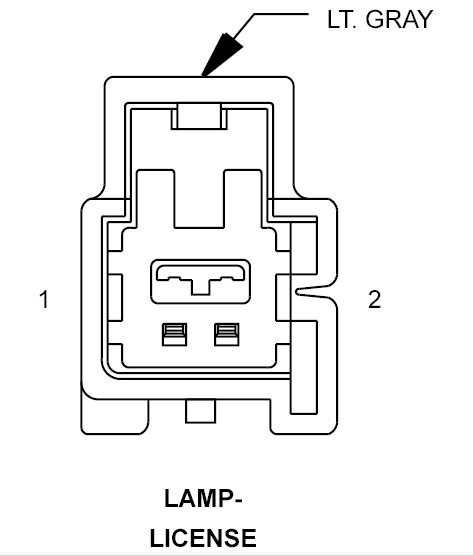

LAMP-LICENSE - LT. GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z960 18BK/LB
GROUND
2
L217 20WT/VT
PARK LAMP CONTROL OUTPUT
Courtesy of CHRYSLER CORP.
