Left Front Fog Lamp Connector End View

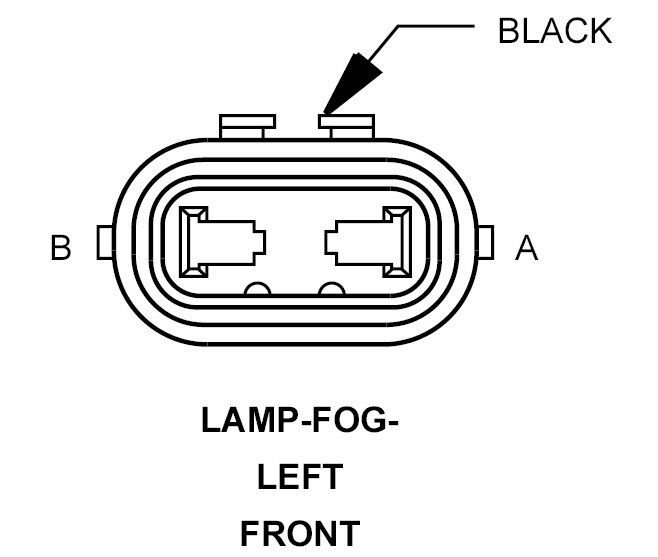

LAMP-FOG-LEFT FRONT - BLACK 2-WAY

GPM880139Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L89 20WT/YL FRONT FOG LAMP CONTROL OUTPUT
B Z904 20BK/LG GROUND
