Left Backup Lamp Connector End View
Left Backup Lamp Connector End View

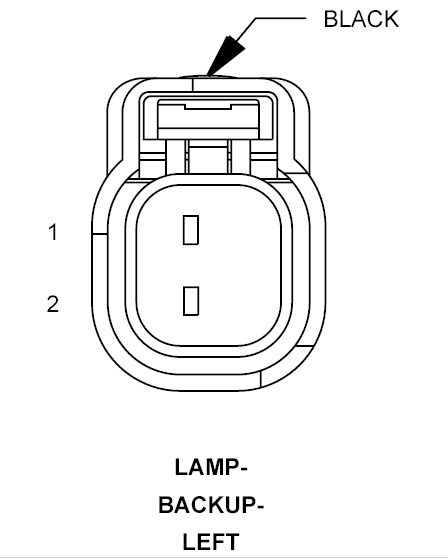

LAMP-BACKUP-LEFT - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z960 18BK/LB
GROUND
2
L1 20WT/LG
BACKUP LAMP SWITCH OUTPUT
Courtesy of CHRYSLER CORP.
