Horn Switch Connector End View

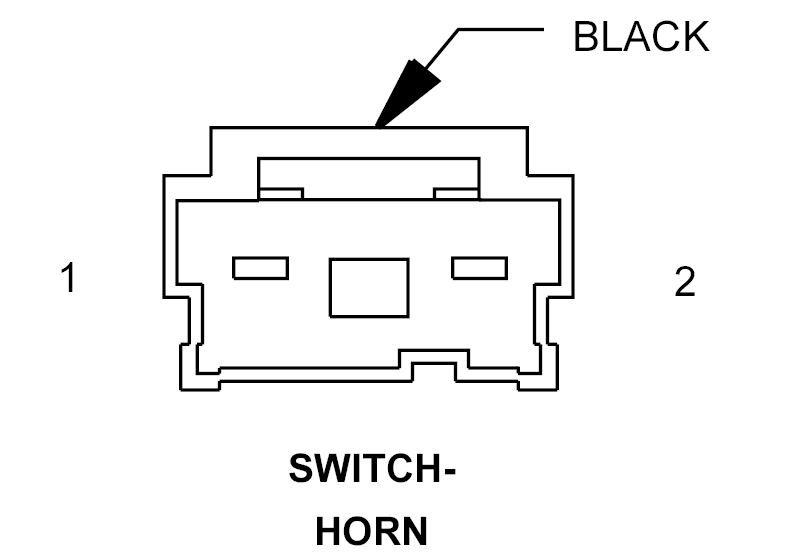

SWITCH-HORN - BLACK 2-WAY

GPM880308Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 X3 20DB HORN SWITCH SENSE
2 Y13 20BK RADIO CONTROL RETURN
