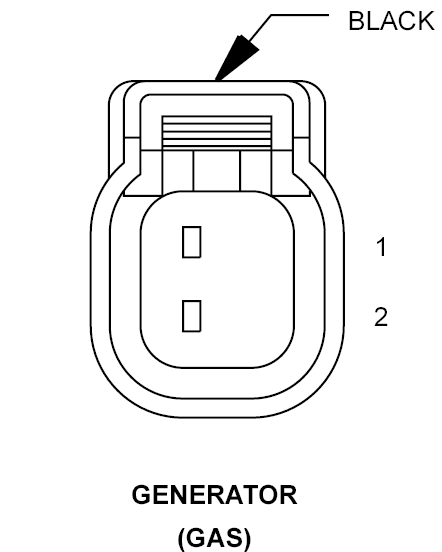

Generator (Gas) Connector End View
Generator (Gas) Connector End View
GENERATOR - BLACK 2-WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K20 20BR/GY
GEN FIELD CONTROL
2
A804 20RD/GY
GEN SENSE
