Cargo Lamp Connector End View

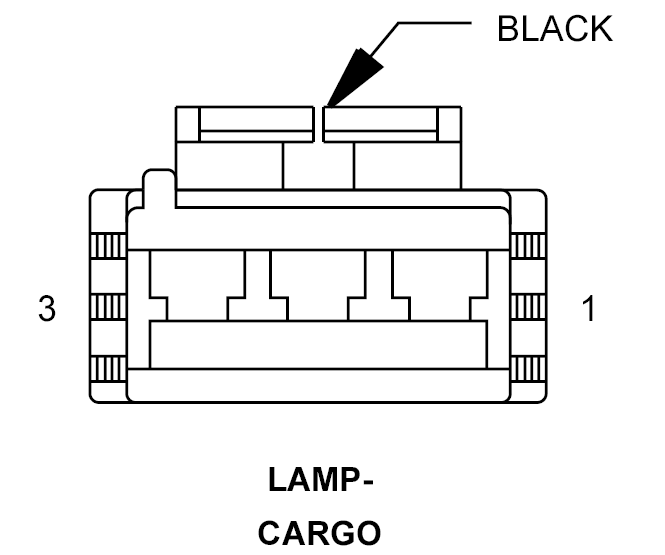

LAMP-CARGO - BLACK 3-WAY

GPM880135Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 Z936 20BK/LB GROUND
