Circuit Schematic

WARNING: This page is about a different car, the 2008 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

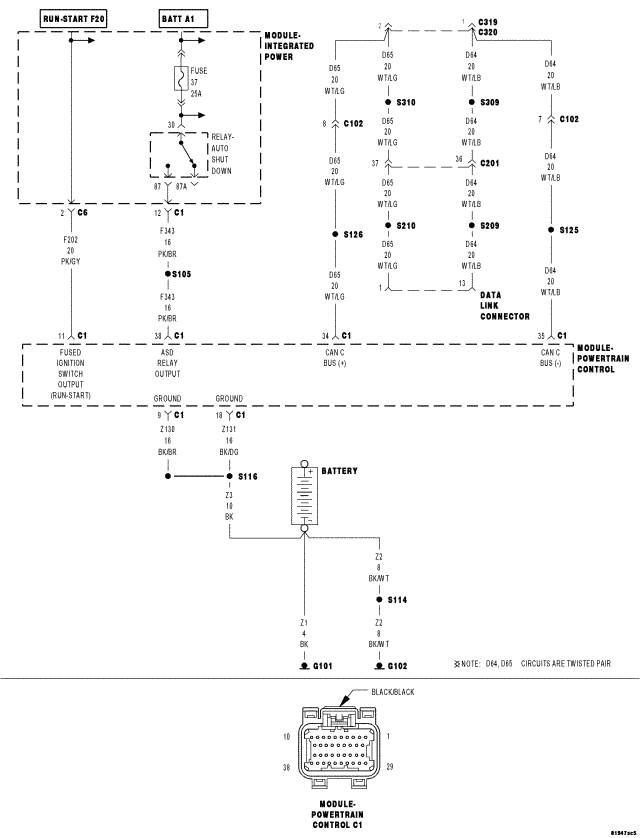

Fig 1: Powertrain Control Module Circuit Schematic
GC0048659Courtesy of CHRYSLER LLC
