Engine Cooling System: Engine: Pump-Water: Installation: Installation-4.0L

Fig 1: Timing Belt Rear Cover Fasteners

Courtesy of CHRYSLER LLC

1 - M8 FASTENERS (APPLY THREAD SEALANT)

2 - M10 FASTENERS

3 - M6 FASTENERS

4 - M10 FASTENERS (STUD/NUT)

1. Position water pump and new gasket.
2. Install water pump mounting bolts.Tighten to 12 N.m (105 in. lbs.).
3. Install engine timing belt. Refer to INSTALLATION .
4. Install accessory drive bracket. Tighten bolts to Tighten to 54 N.m (40 ft. lbs.).

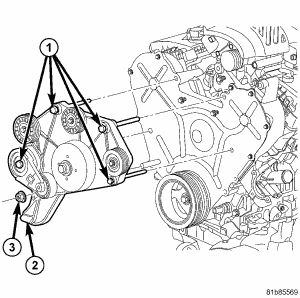

   Fig 2: Removing/Installing A/C Compressor Mounting

   Courtesy of CHRYSLER LLC
5. Install front A/C compressor mounting studs and nuts. Tighten studs to
6. Install A/C compressor mounting nuts. Tighten nuts to 28 N.m (21 ft. lbs.).
7. Lower engine and install RH engine mount through bolt. Tighten bolt to 54 N.m (40 lbs. ft.).
8. Install accessory drive belt. See INSTALLATION .
9. Install viscous radiator fan. See INSTALLATION .
10. Install coolant recover container. See INSTALLATION .
11. Install air filter assembly. Refer to INSTALLATION .
12. Connect negative battery cable.
13. Fill cooling system. See STANDARD PROCEDURE .
