Engine Cooling System: Engine: Fan-Radiator-Electric: Description: Description

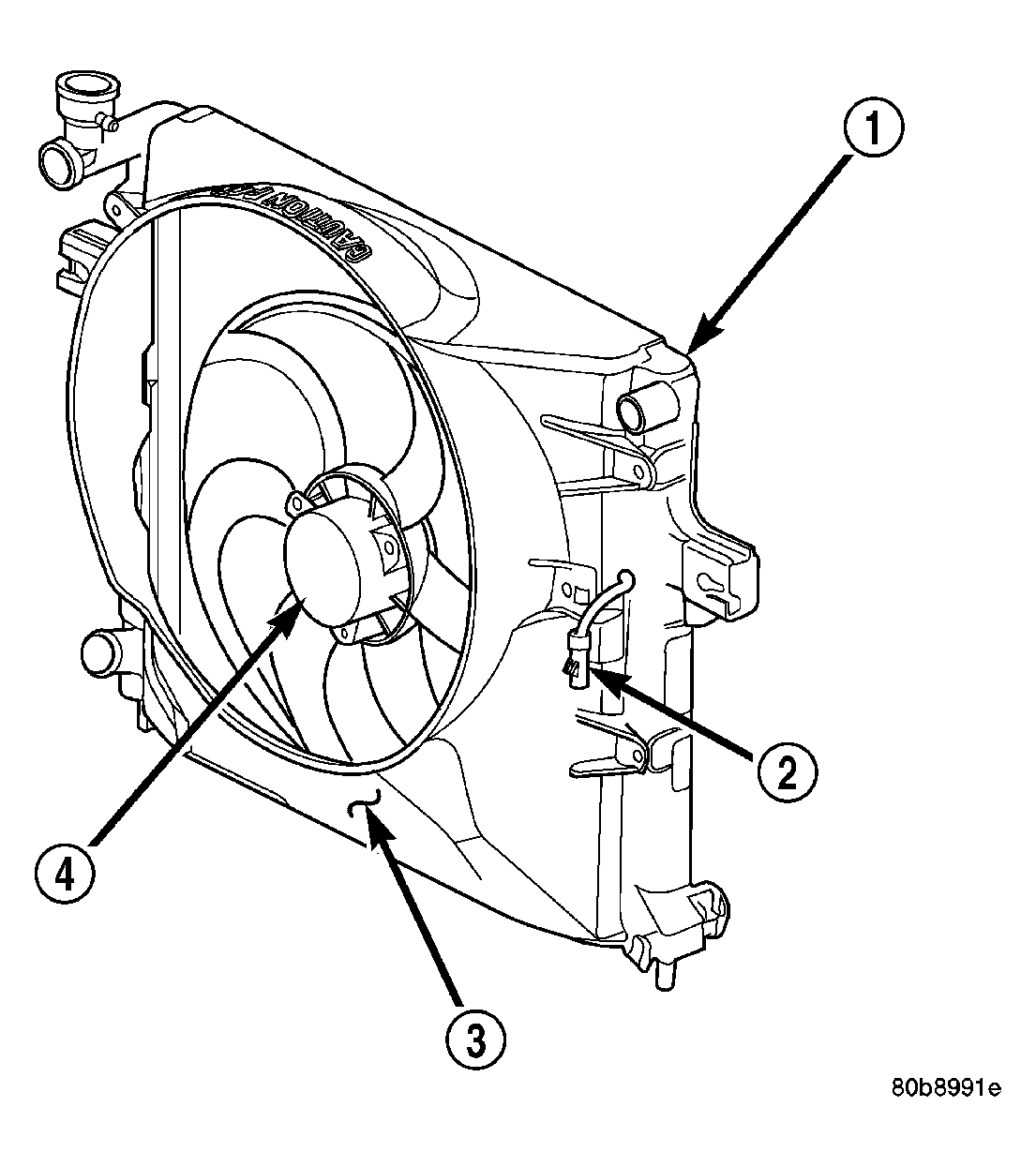

Fig 1: Identifying Radiator, Electric Cooling Fan Connector, Fan Shroud & 2 Speed Electric Cooling Fan
| 1 - RADIATOR |
| 2 - ELECTRIC COOLING FAN CONNECTOR |
| 3 - FAN SHROUD |
| 4 - 2 SPEED ELECTRIC COOLING FAN |
The fan (4) is electrically controlled by the Powertrain Control Module (PCM) through the fan control relays. The relays are located in the PDC in the engine compartment.
