Installation-Non Pressure System

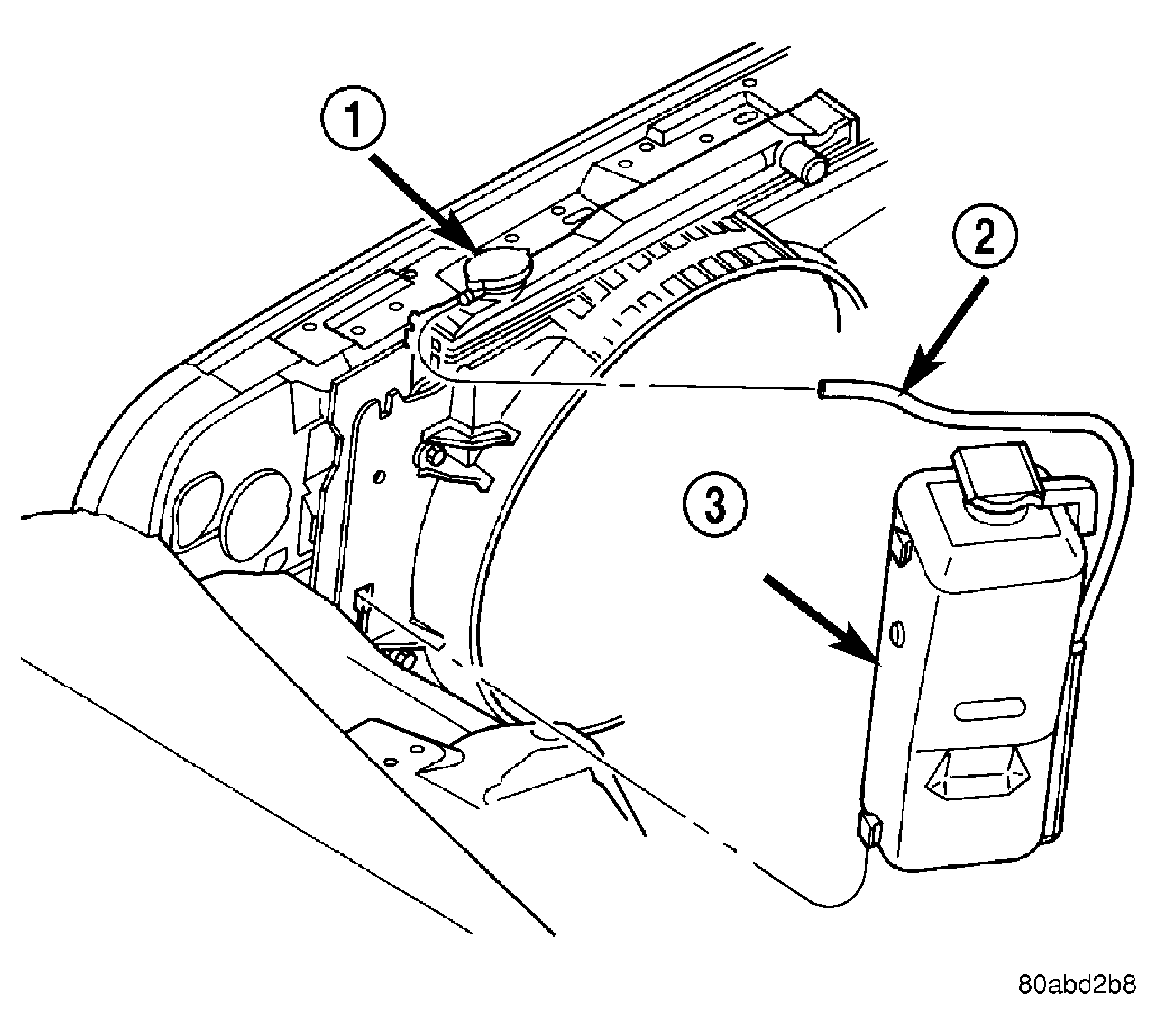

Fig 1: Identifying Radiator Pressure Cap, Hose & Coolant Recovery Bottle
GC0025171Courtesy of CHRYSLER LLC
1 - RADIATOR PRESSURE CAP
2 - HOSE
3 - COOLANT RECOVERY BOTTLE
  1. Position coolant recovery container (3).
  2. Install coolant recovery container mounting bolts.
  3. Install hose (2).
