Water-In-Fuel (WIF) Sensor - ECM Input

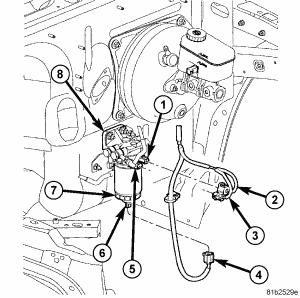

Fig 1: Water-In-Fuel (WIF) Sensor components
GC0062736Courtesy of CHRYSLER LLC

The combination drain valve/Water-In-Fuel (WIF) sensor (6) is located on the bottom of the fuel filter/water separator filter canister.
