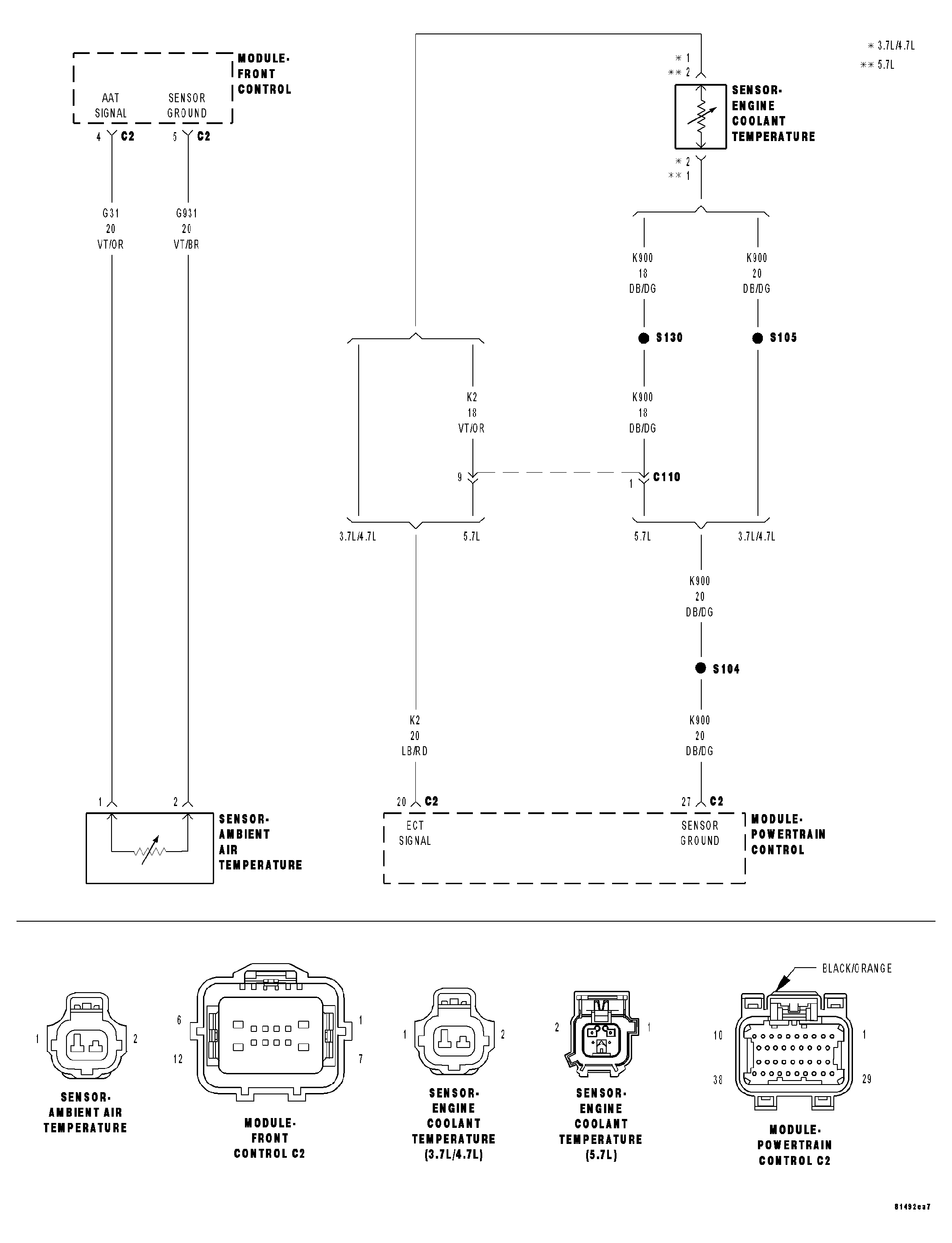

Home >> Dodge and Ram >> 2007 >> Durango 4.7 N, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0645 To P1572 >> P1115-General Temperature Rationality >> Circuit Schematic
