Suspension System: Front: Hub/Bearing: Installation: Hub/Bearing

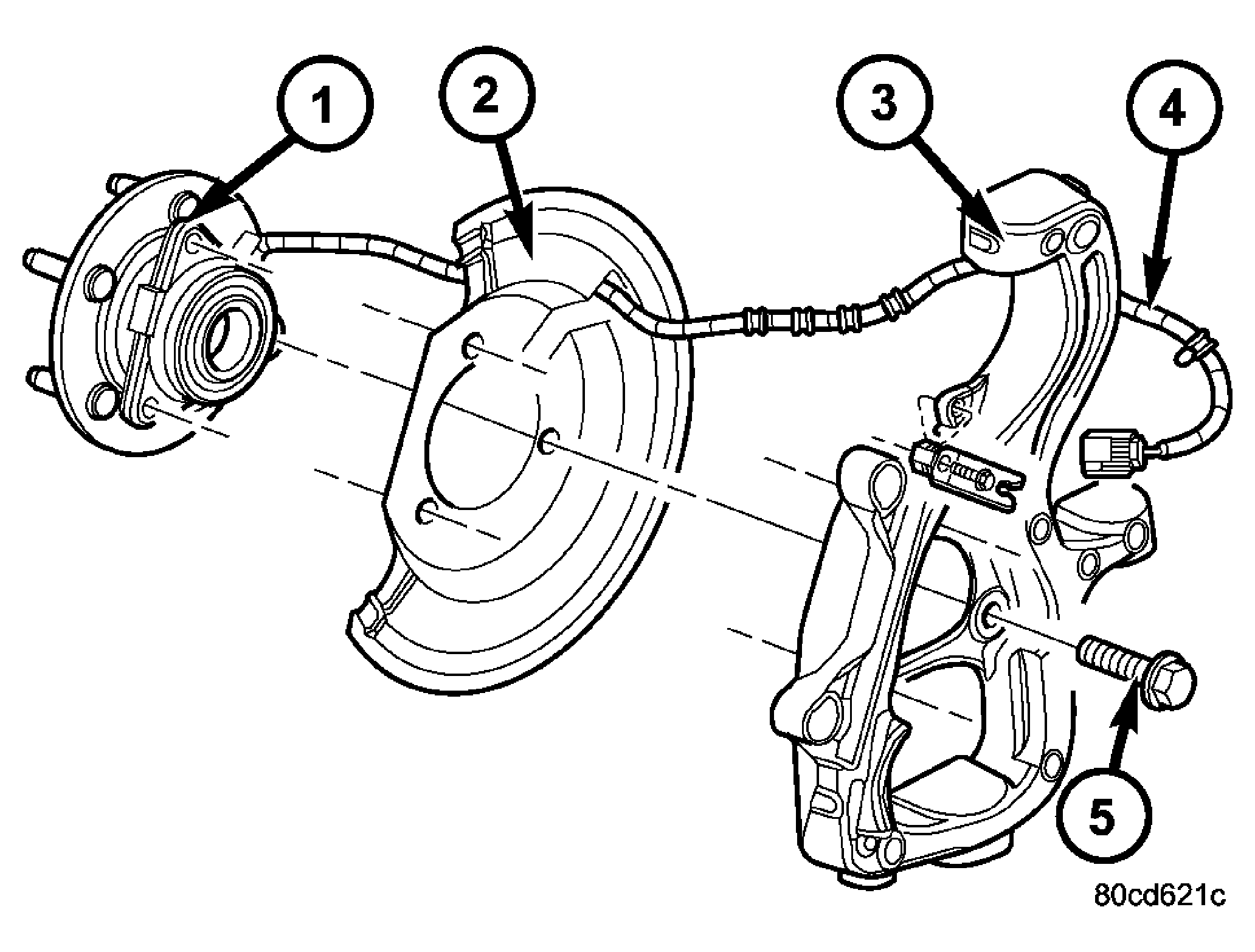

Fig 1: Brake Dust Shield, Hub/Bearing Assembly (4X4) & Spindle

Courtesy of CHRYSLER LLC

1. Install the brake dust shield (2).
2. Install the hub/bearing (1) into the steering knuckle (3) and tighten the bolts (5) to 163 N.m (120 ft. lbs.).
3. Install the brake rotor and caliper. Refer to INSTALLATION .
4. Install the ABS wheel speed sensor (4) if equipped. Refer to INSTALLATION .
5. Install the upper ball joint nut to the steering knuckle and tighten to 75 N.m (55 ft. lbs.).
6. Install the tie rod end nut to the steering knuckle and tighten to 75 N.m (55 ft. lbs.).
7. Install the halfshaft nut and tighten to 251 N.m (185 ft. lbs.) 4X4 only  .
8. Install the wheel and tire assembly. Refer to STANDARD PROCEDURE .
9. Remove the support and lower vehicle.
