Overhead Console

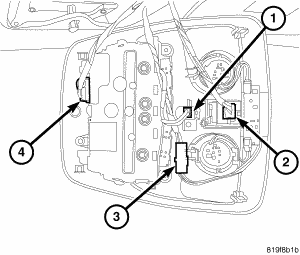

Fig 1: Overhead Console Wire Harness Connectors
GC0057981Courtesy of CHRYSLER LLC
  1. Position the overhead console near the mounting location on the headliner.
  2. Connect the infrared temperature sensor wire harness connector (1) (if equipped).
  3. Connect the power sunroof/power liftgate switch wire harness connector (2) (if equipped).
  4. Connect the reading lamp wire harness connector (3) (if equipped).
  5. Connect the Electronic Vehicle Information Center (EVIC) module wire harness connector (4) (if equipped).

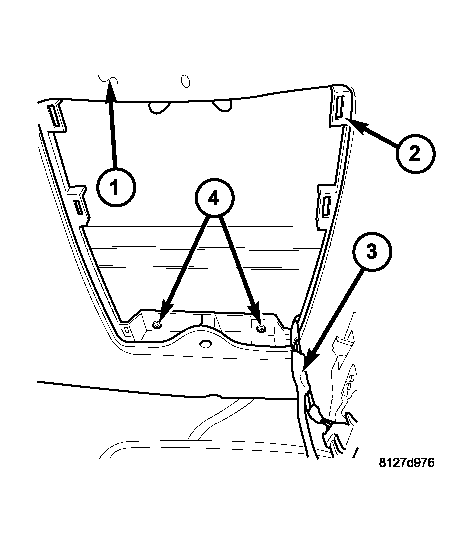

    Fig 2: Overhead Console Bracket
    GC0010254Courtesy of CHRYSLER LLC
  6. Align the snap clips on the overhead console housing with their receptacles in the overhead console bracket (2).

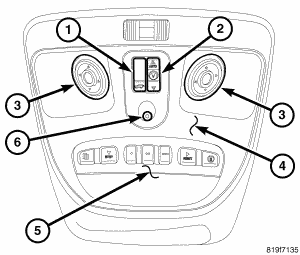

    Fig 3: Overhead Console Components
    GC0057980Courtesy of CHRYSLER LLC
  7. Push upward firmly and evenly on the sides of the overhead console housing (4) over the snap clip locations until the snap clips are fully engaged with the overhead console bracket.
  8. Reconnect the battery negative cable.
