SP/Manual Latch Release

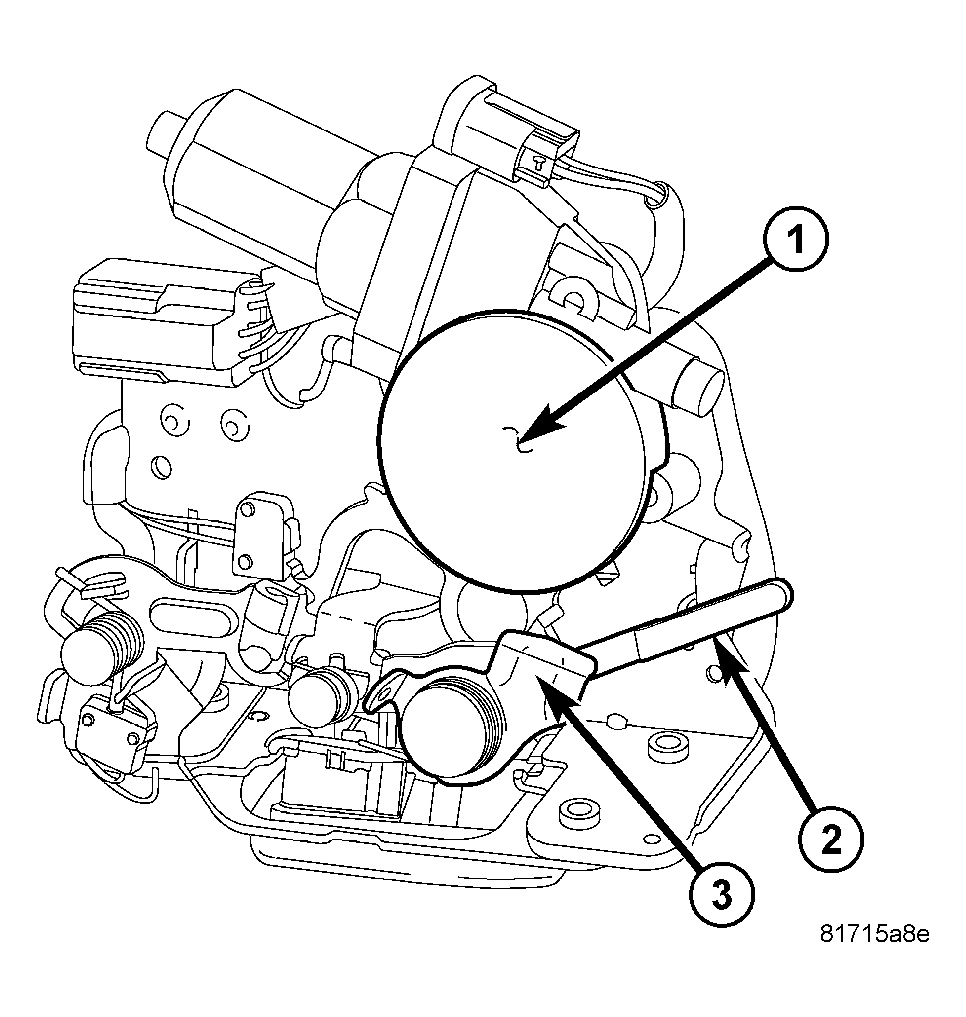

Fig 1: View Of Power Liftgate Latch Assembly
GC0044282Courtesy of CHRYSLER LLC
NOTE: The liftgate may be opened manually by raising the latch release lever (3) in the event the power liftgate latch assembly (1) becomes inoperative. If the latch assembly (1) becomes stuck during a cinch command the cinch function may be overridden by pushing down on the cinch override lever (2).
  1. Remove the access door from the middle of the lower liftgate trim panel.
  2. Reaching around to the back of the latch assembly (1) move the appropriate lever for the current condition.
