Tandem Fuel Pump: Installation

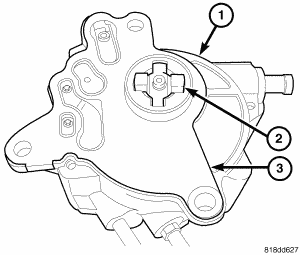

Fig 1: PUMP AND GASKET
GC0057626Courtesy of CHRYSLER LLC
  1. Place new gasket (3) on pump (1).
  2. Align pump drive (2) on pump.

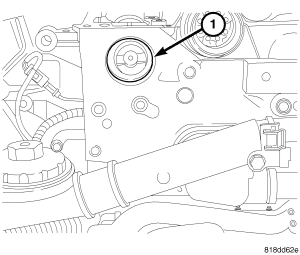

    Fig 2: FUEL PUMP DRIVE
    GC0057627Courtesy of CHRYSLER LLC
  3. Insert pump drive into slot on camshaft (1).

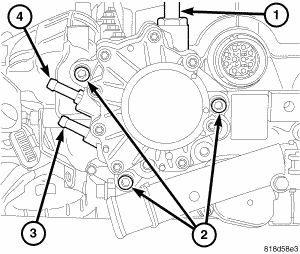

    Fig 3: FUEL PUMP
    GC0057628Courtesy of CHRYSLER LLC
  4. Install pump retaining bolts (2) and tighten.
  5. Install fuel feed line (4).
  6. Install fuel return line (3).
