T355 Manual Transmission (Service Information): Disassembly

Fig 1: Removing/Installing Concentric Slave Cylinder

Courtesy of CHRYSLER LLC

Remove bolts from slave cylinder-to-clutch bellhousing and remove slave cylinder (1) from transaxle.

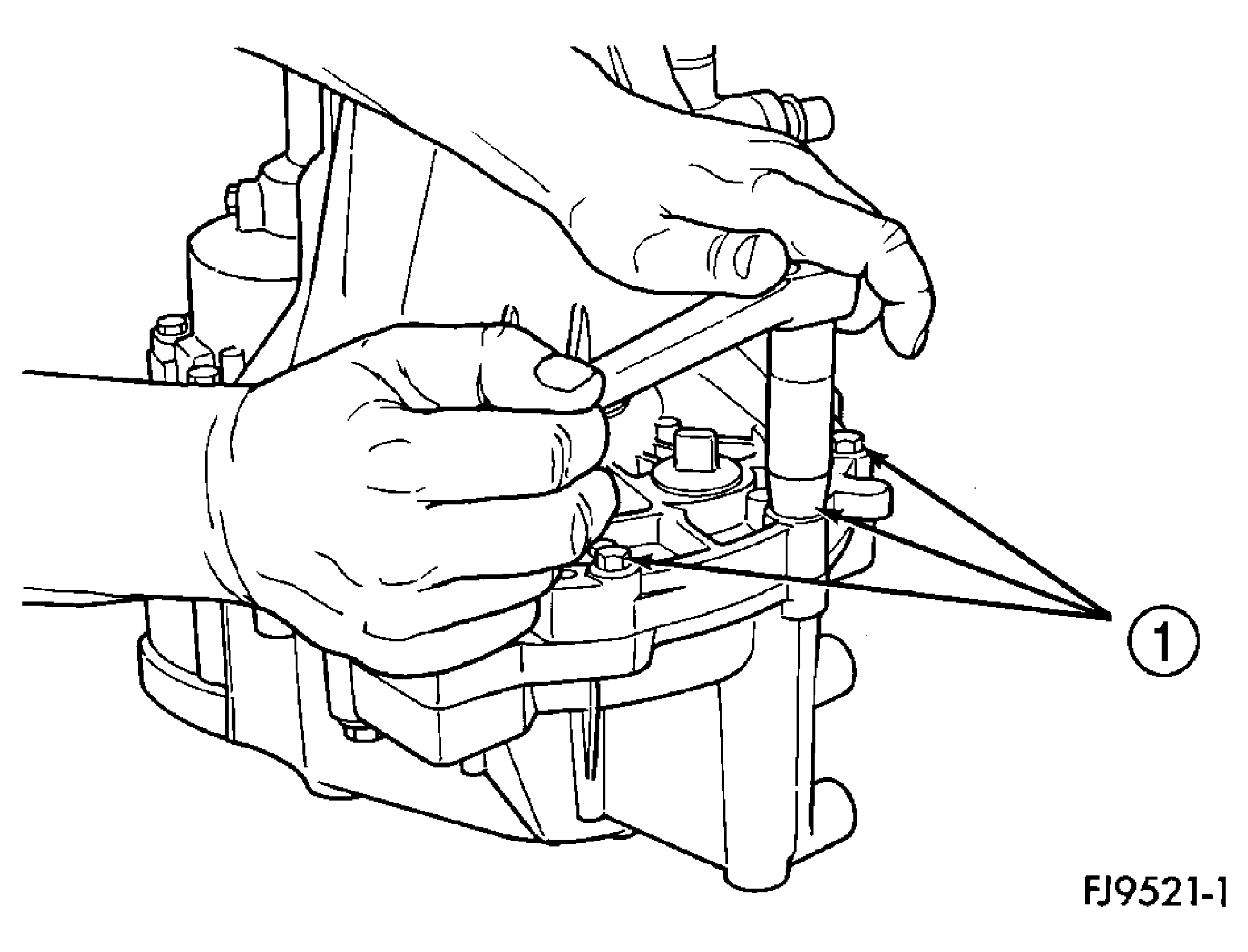

Fig 2: Case Bolts
Courtesy of CHRYSLER LLC

1 - CASE BOLTS

The T355 transaxle internal components can be serviced only by separating the gear case from the bellhousing case.

CAUTION: The transaxle output shaft is serviced as a unit. No disassembly and reassembly is possible. Damage to the transaxle may result.
Place transaxle on bench.
Remove transaxle case half bolts (1).

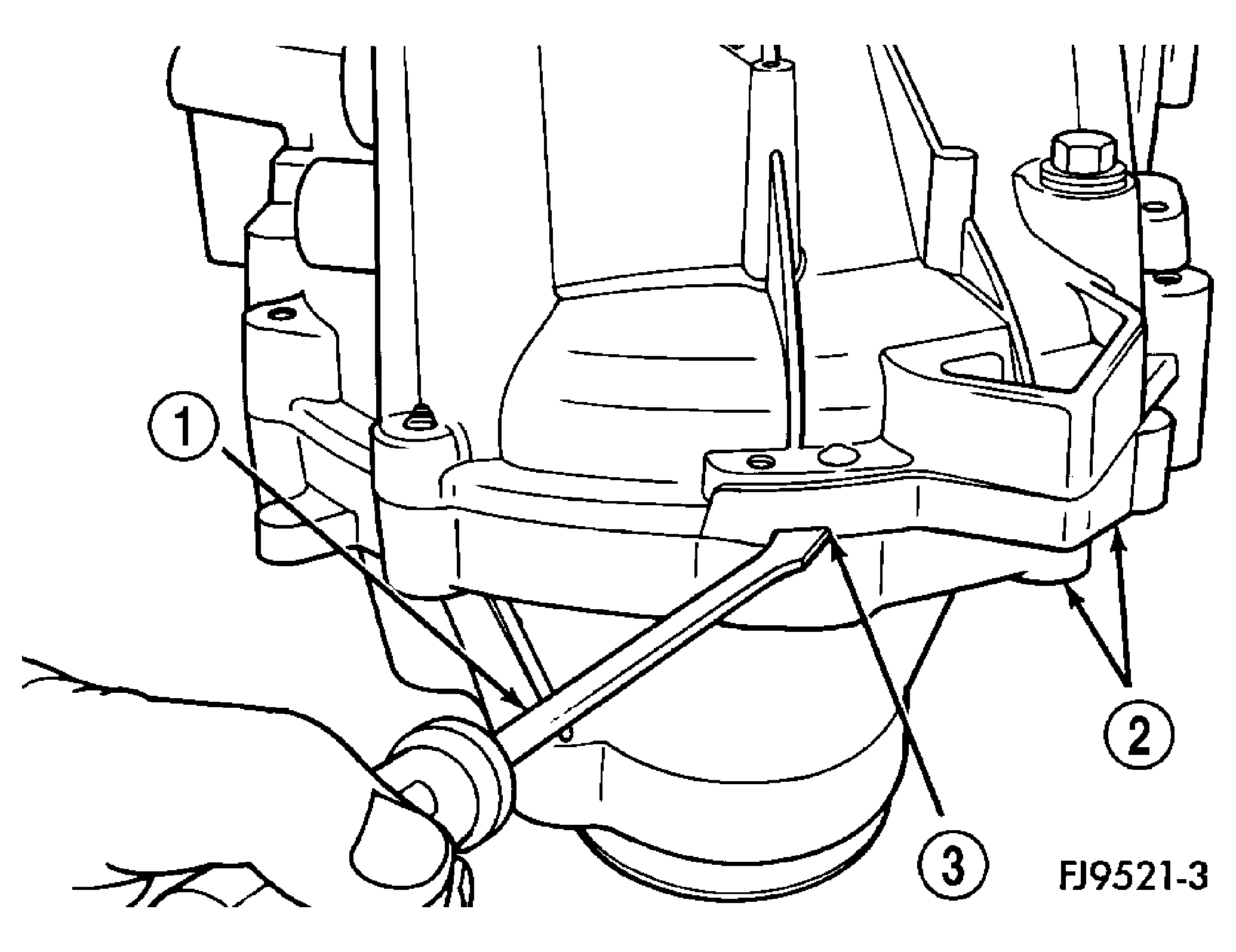

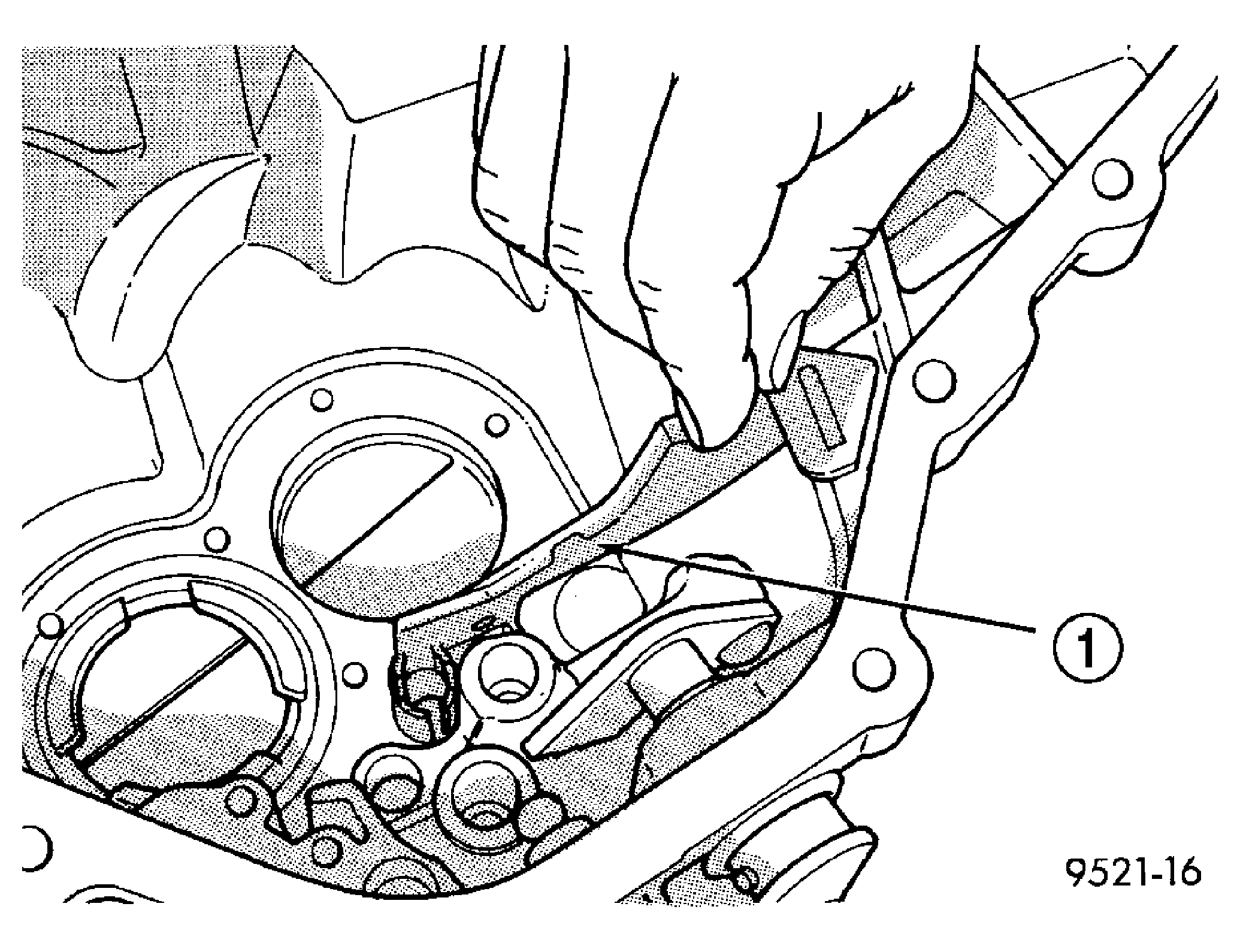

Fig 3: Separate Case Halves
Courtesy of CHRYSLER LLC

1 - PRY TOOL

2 - CASE HALVES

3 - PRY SLOT

Place two screwdrivers (1) into the slots (3) provided in the case halves (2) near the dowels. Separate the case halves. See Fig 3.

Fig 4: Bellhousing Case Half Removed

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - OUTPUT SHAFT

3 - DIFFERENTIAL ASSEMBLY

4 - GEARTRAIN HOUSING

Remove bellhousing half from gear case half (4). See Fig 4.

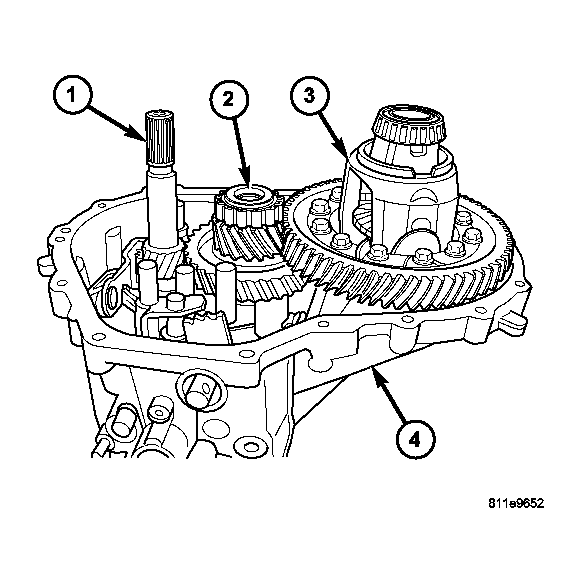

Fig 5: Removing/Installing Differential

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - OUTPUT SHAFT

3 - DIFFERENTIAL ASSEMBLY

4 - GEARTRAIN HOUSING

Remove differential assembly (3) from housing (4). See Fig 5.

Fig 6: Locating Reverse Idler Shaft & Bolt

Courtesy of CHRYSLER LLC

1 - CASE

2 - REVERSE IDLER SHAFT

3 - REVERSE IDLER SHAFT BOLT

Remove reverse idler shaft bolt (3).

Fig 7: Removing/Installing Reverse Idler Shaft
Courtesy of CHRYSLER LLC

1 - REVERSE IDLER SHAFT

2 - SPACER
Remove reverse idler shaft (1). See Fig 7.

Fig 8: Reverse Idler Gear & Spacer
Courtesy of CHRYSLER LLC

1 - SPACER

2 - REVERSE IDLER GEAR
Remove reverse idler gear (2) and spacer (1). See Fig 8.

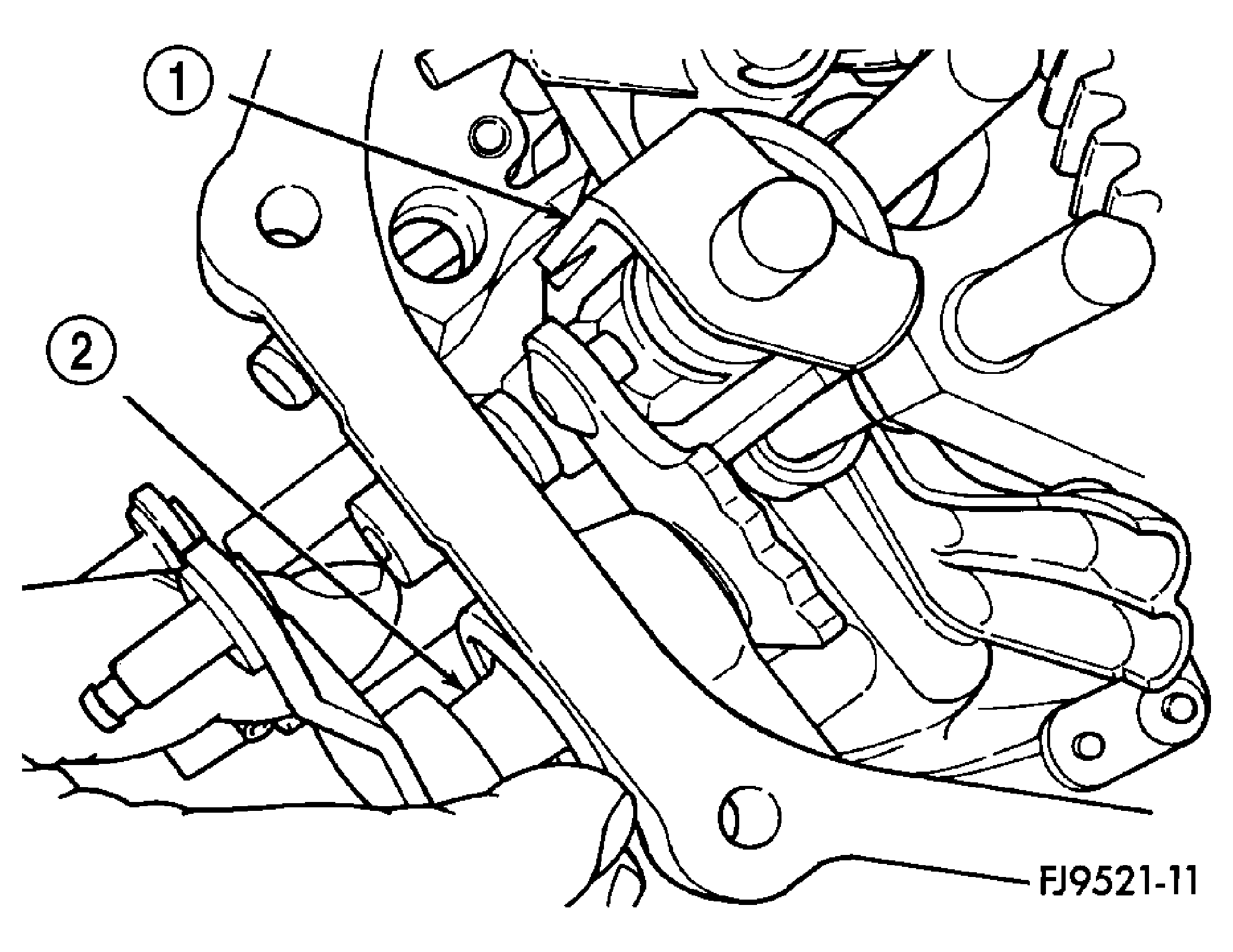

Fig 9: LINKAGE TIE BAR CLIPS
Courtesy of CHRYSLER LLC
Remove the clips (1) at the linkage tie bar (2).

Fig 10: LINKAGE TIE BAR
Courtesy of CHRYSLER LLC
Remove the linkage tie bar (1).
Remove the plug (3) at the selector shaft (2).

Fig 11: Locating Screws Retaining Reverse Fork Bracket
Courtesy of CHRYSLER LLC

1 - SCREWS (2)

2 - REVERSE FORK BRACKET

Remove two screws (1) retaining reverse fork bracket (2). See Fig 11.

Fig 12: Removing Reverse Fork Bracket & Cam Blockout Assembly

Courtesy of CHRYSLER LLC

1 - REVERSE FORK BRACKET

2 - REVERSE CAM BLOCKOUT

3 - SHIFT BLOCKER ASSEMBLY

Remove reverse fork bracket (1) and reverse cam block-out assembly (2). See Fig 12.

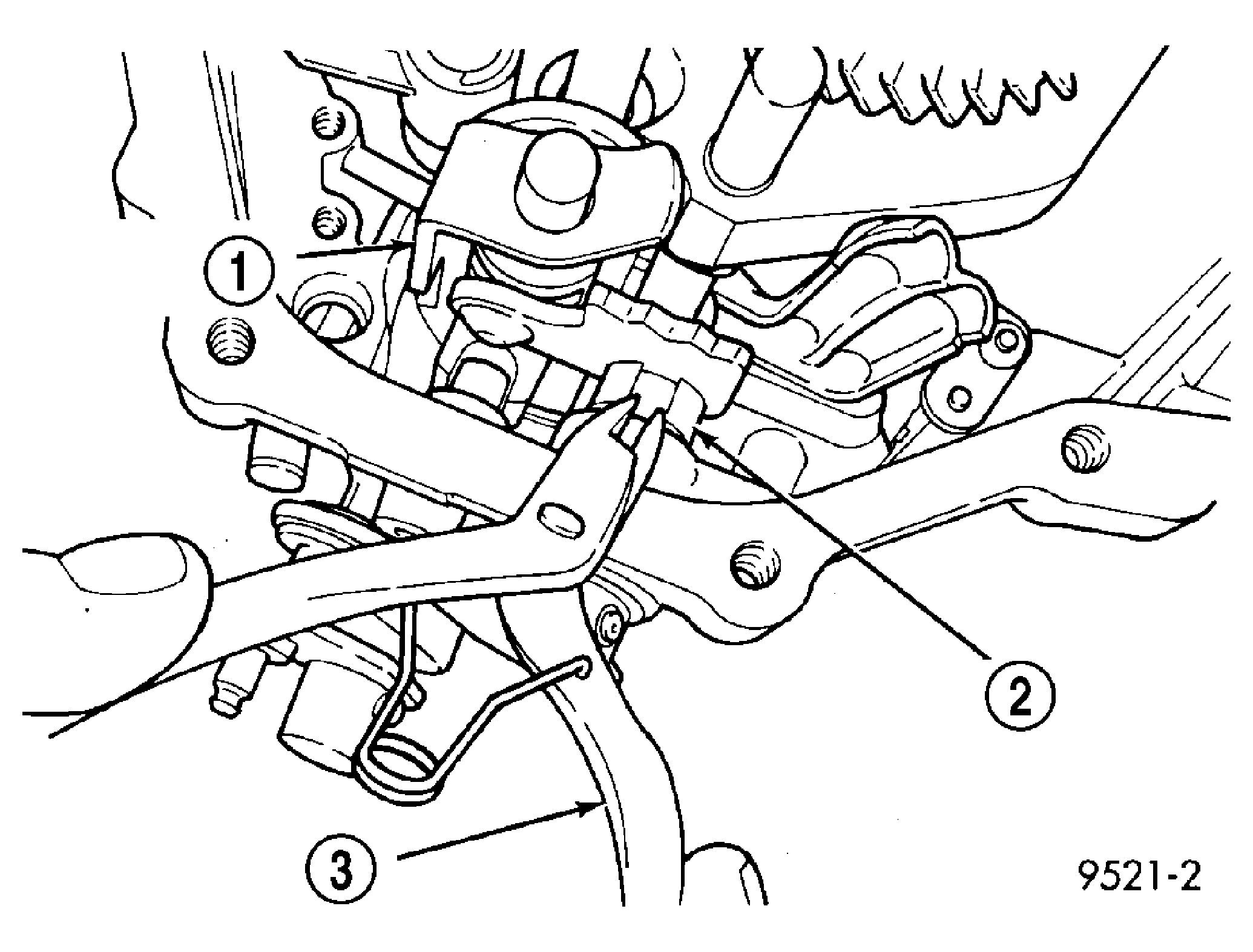

Fig 13: Removing Selector Shaft Spacer

Courtesy of CHRYSLER LLC

1 - SHIFT BLOCKER ASSEMBLY

2 - SELECTOR SHAFT SPACER (PLASTIC)

3 - SNAP RING PLIERS

Using snap-ring pliers (3), remove link shaft spacer (2). See Fig 13.

Fig 14: Selector Shaft
Courtesy of CHRYSLER LLC

1 - SHIFT ASSEMBLY

2 - SELECTOR SHAFT
Pull the link shaft shift pin out of the slot in the blocker assembly. Turn selector shaft (2) up and out of the way. See Fig 14.

Fig 15: END COVER AND SHAFT BOLTS
Courtesy of CHRYSLER LLC
Remove transaxle end cover (2) and rear detent assembly bolts (1).

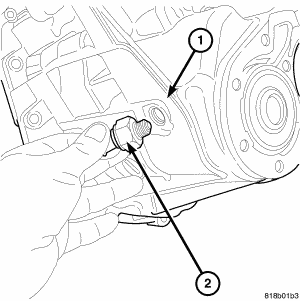

Fig 16: BACKUP LAMP SWITCH
Courtesy of CHRYSLER LLC
Remove the backup lamp switch (2).

Fig 17: Snap Rings Retaining Bearings
Courtesy of CHRYSLER LLC

1 - SNAP RING PLIERS

2 - SNAP RINGS
Remove two snap rings (2) retaining the output shaft and the input shaft to the bearings. See Fig 17.

Fig 18: BENCH FIXTURE T355
Courtesy of CHRYSLER LLC
The Bench Fixture 6785 (4) and adaptors 9761-1 (1), 9761-2 (3), 9761-3 (2), 9761-6 (5) and 9761-7 (6) will be used to remove input and output shafts from the case.

Fig 19: TRANSAXLE ON FIXTURE T355
Courtesy of CHRYSLER LLC
Turn transaxle over. Install transaxle (1) onto Bench Fixture 6785 (2). Verify shim spacers and adaptors are in position on Bench Fixture 6785. Install transaxle into shop press.

Fig 20: Bearing Fixture
Courtesy of CHRYSLER LLC

1 - BEARING FIXTURE

2 - TRANSAXLE CASE

Install Bearing Remover 6768 (1) onto transaxle end bearings. Verify tool is properly aligned to input and output shafts.

CAUTION: The oil dams in the input and output shafts can be damaged while pressing on the shafts if the bearing fixture is not used properly.

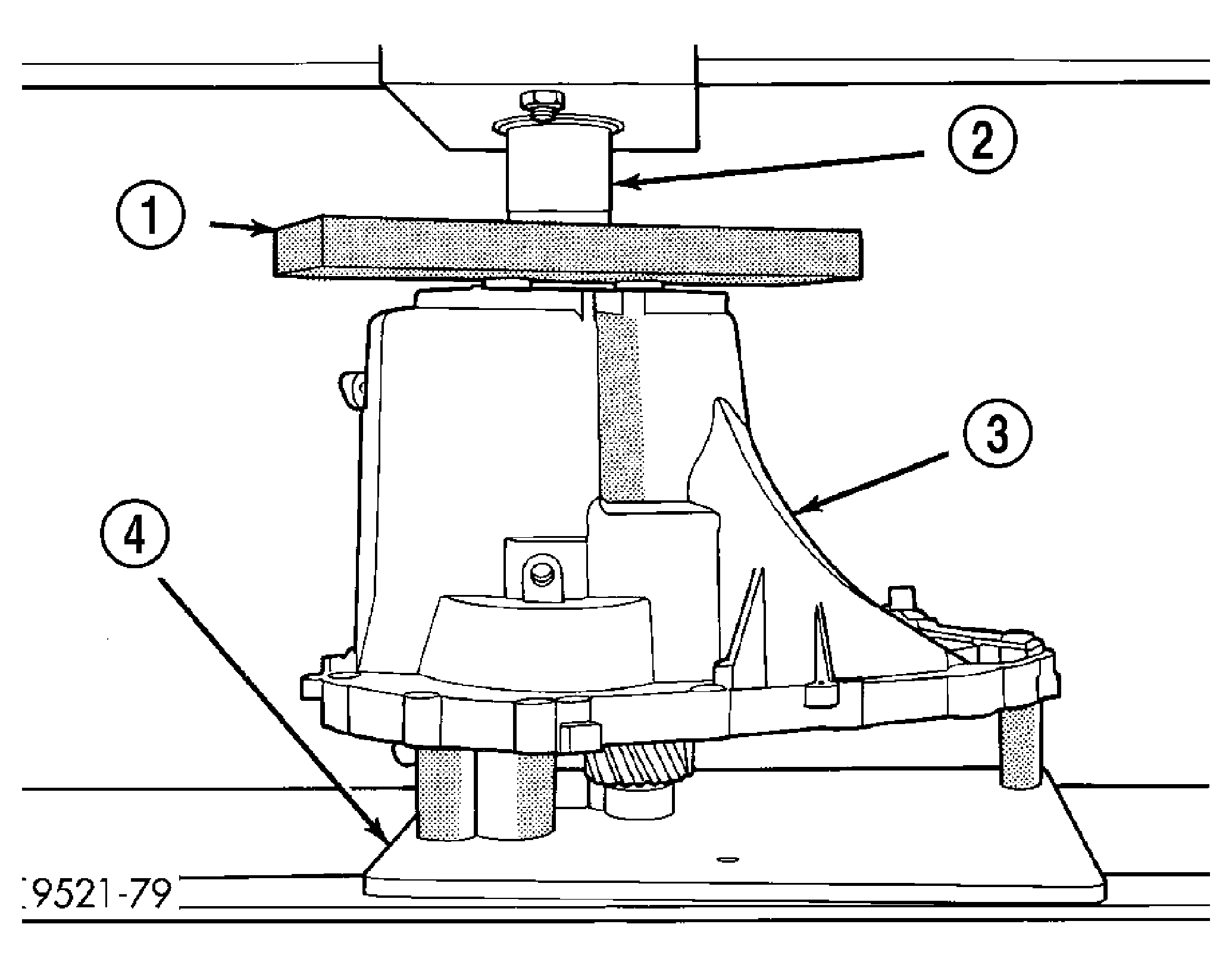

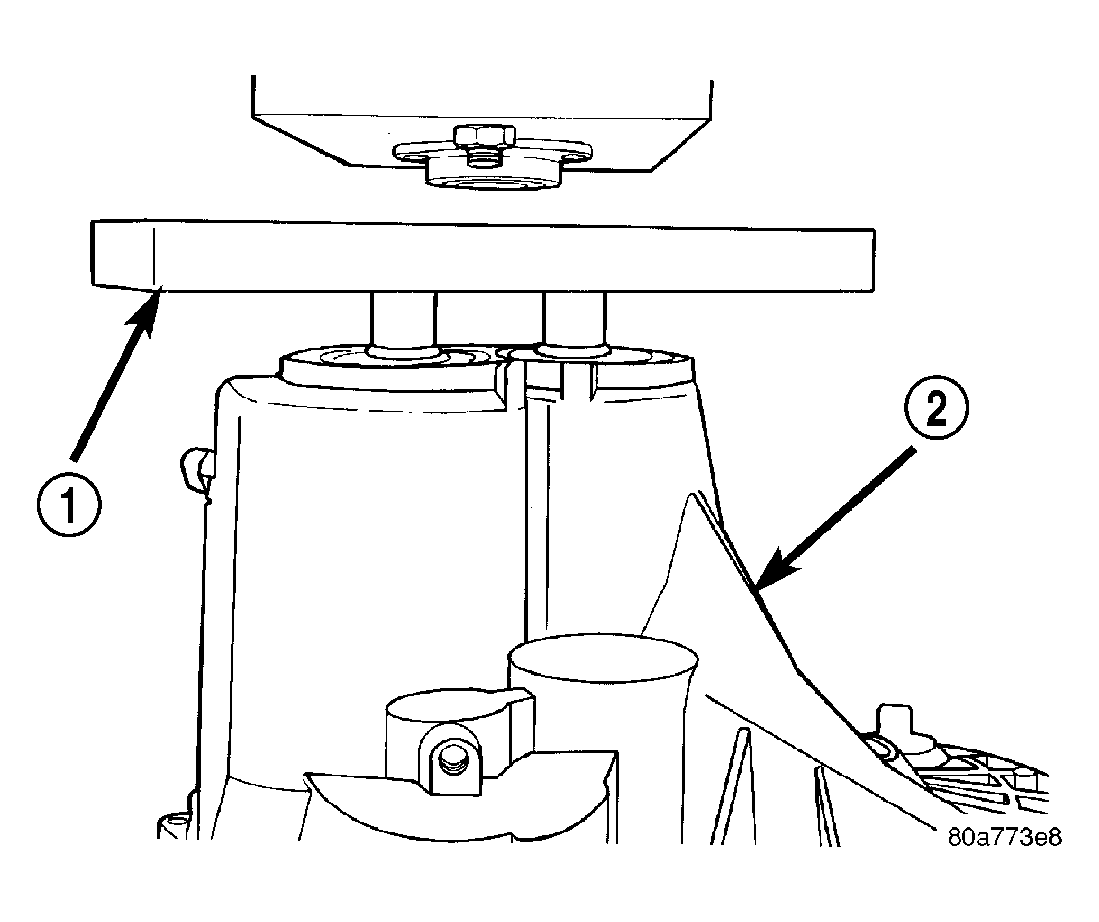

Fig 21: Pressing Gears Out of Case

Courtesy of CHRYSLER LLC

1 - BEARING FIXTURE

2 - PRESS RAM

3 - TRANSAXLE CASE

4 - BENCH FIXTURE

Install transaxle gear case (3) into shop press. Press (2) output and input shaft assemblies out of case.
Remove transaxle from press.

Fig 22: TRANSAXLE ON FIXTURE T355
Courtesy of CHRYSLER LLC
Carefully remove transaxle case (1) from the shaft assemblies and Bench Fixture 6785 (2).

Fig 23: Oil Feed Trough
Courtesy of CHRYSLER LLC

1 - OIL FEED TROUGH
Be sure the oil-feed trough (1) to the end bearings is not damaged.

Fig 24: SHIFT SHAFT ASSY
Courtesy of CHRYSLER LLC
Remove the reverse brake friction cone (1) from the input shaft assembly.
Remove the blocking ring (2) from the input shaft assembly.

Fig 25: SHIFT RAIL ASSY
Courtesy of CHRYSLER LLC
Remove the shift blocker assembly, the reverse shift fork (5) and the detent assembly from the bench fixture (4).
Remove input (2) and output shaft (1) assemblies from Bench Fixture 6785.

CAUTION: The output shaft assembly is serviced as an assembly. Do not try to repair any component on the output shaft. If the 1-2 synchronizer or gear fails, it is necessary to replace the complete output shaft assembly.
