Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| All Wheel Drive (AWD) Control Module | Behind left kick panel. See Figure. |

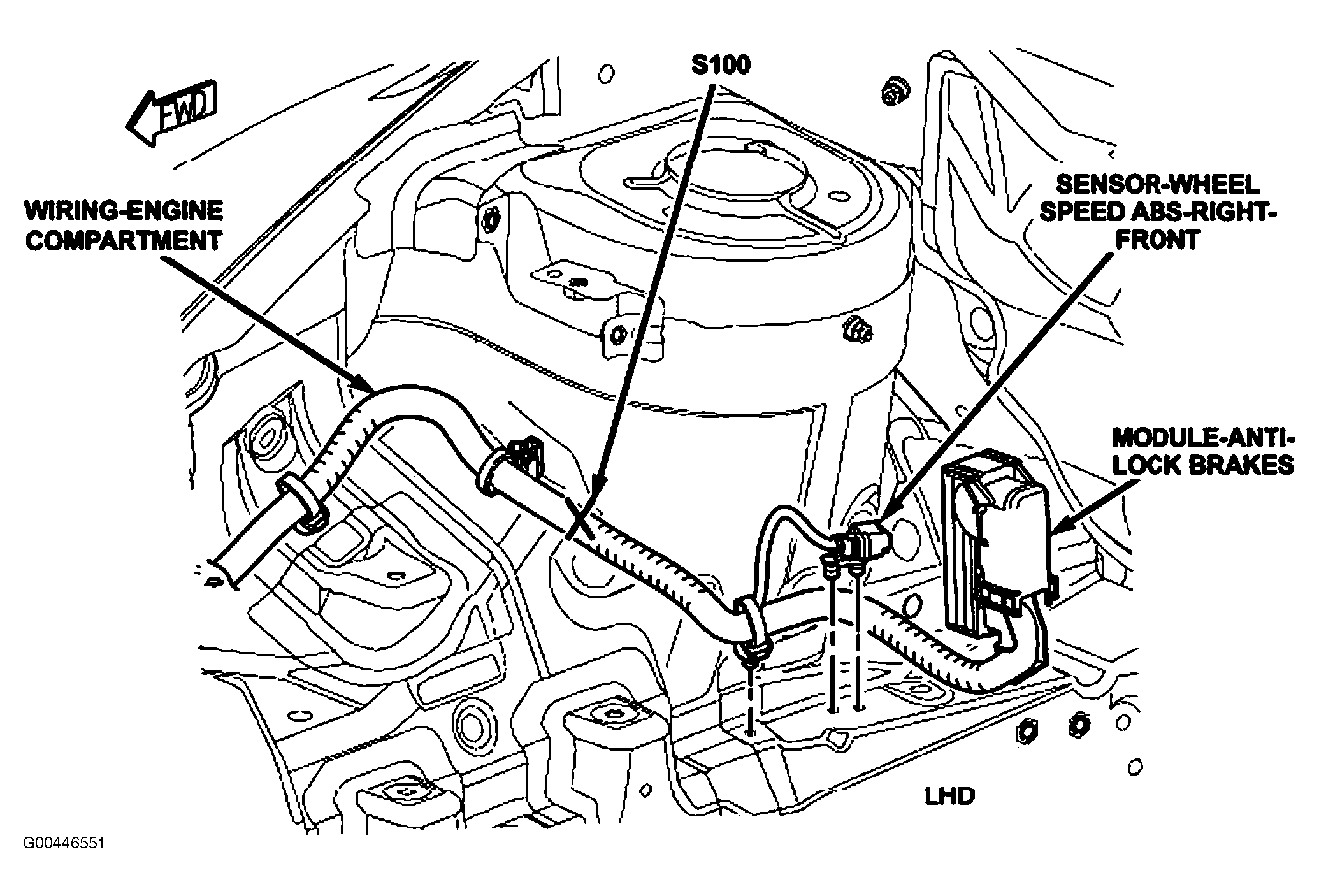

| Anti-Lock Brakes Module | Rear of engine compartment. See Figure. |

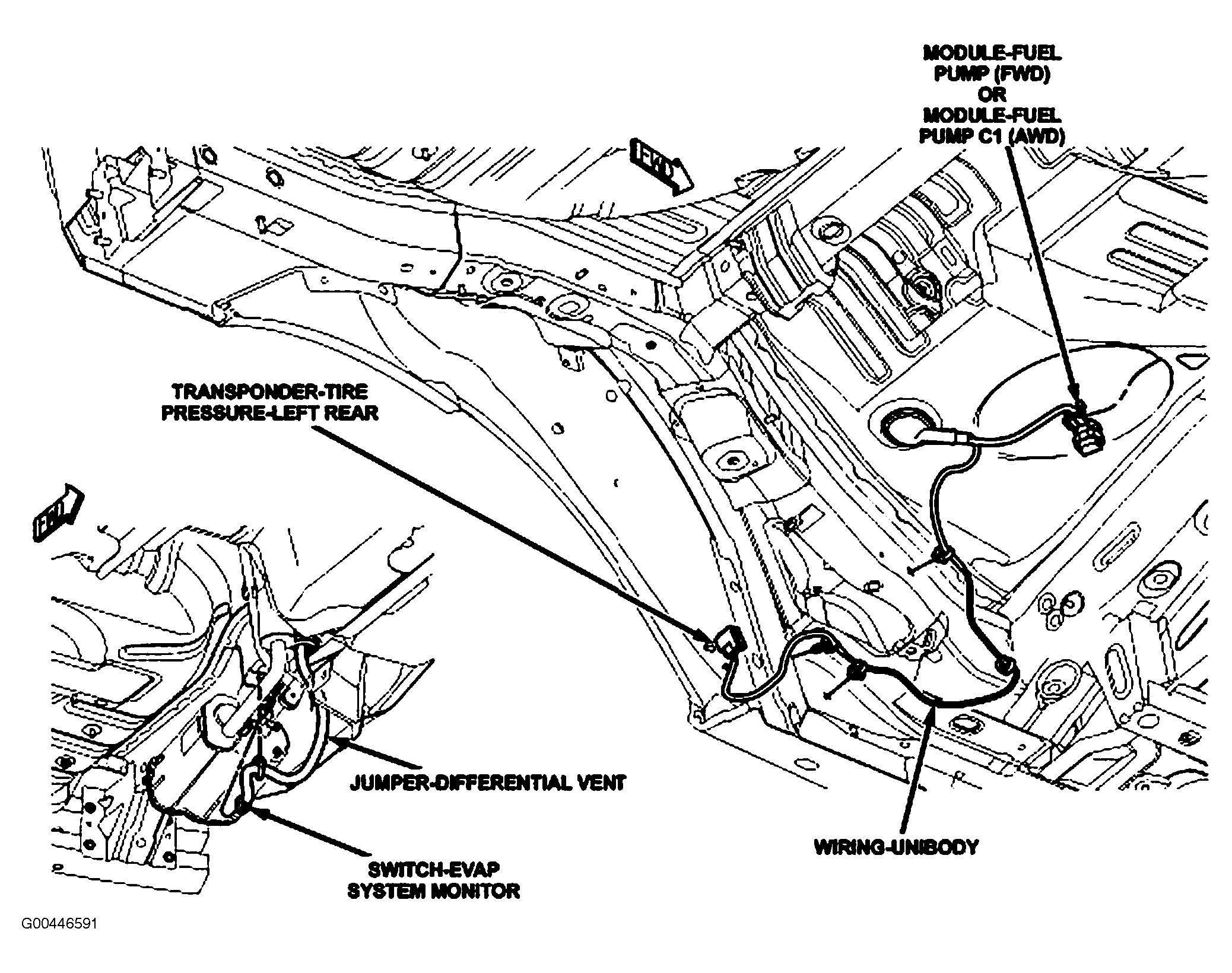

| Fuel Pump Module (AWD) (C1) | Top left side of fuel tank. See Figure. |

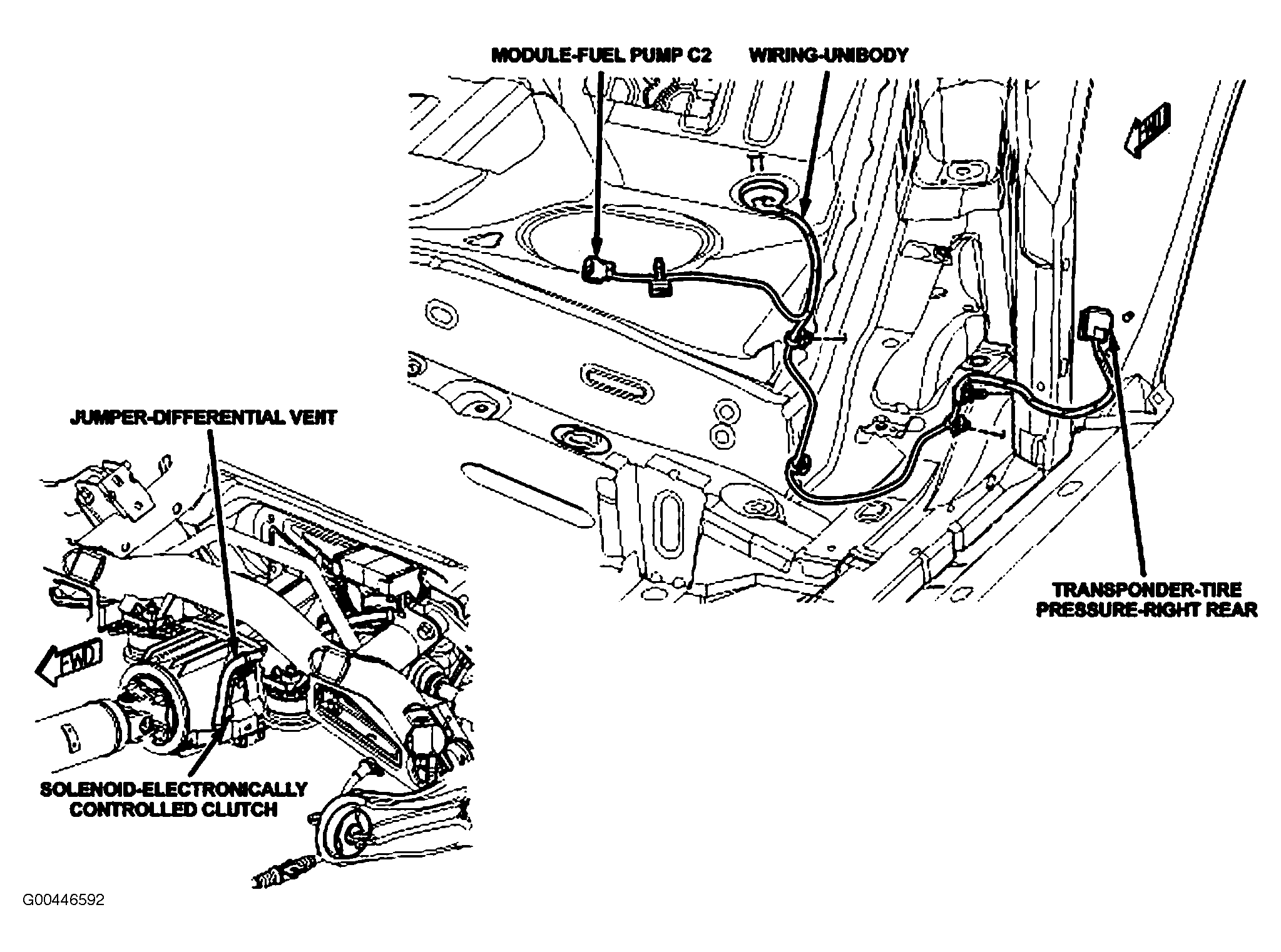

| Fuel Pump Module (AWD) (C2) | Top right side of fuel tank. See Figure. |
| Fuel Pump Module (FWD) (C1) | Top left side of fuel tank. See Figure. |

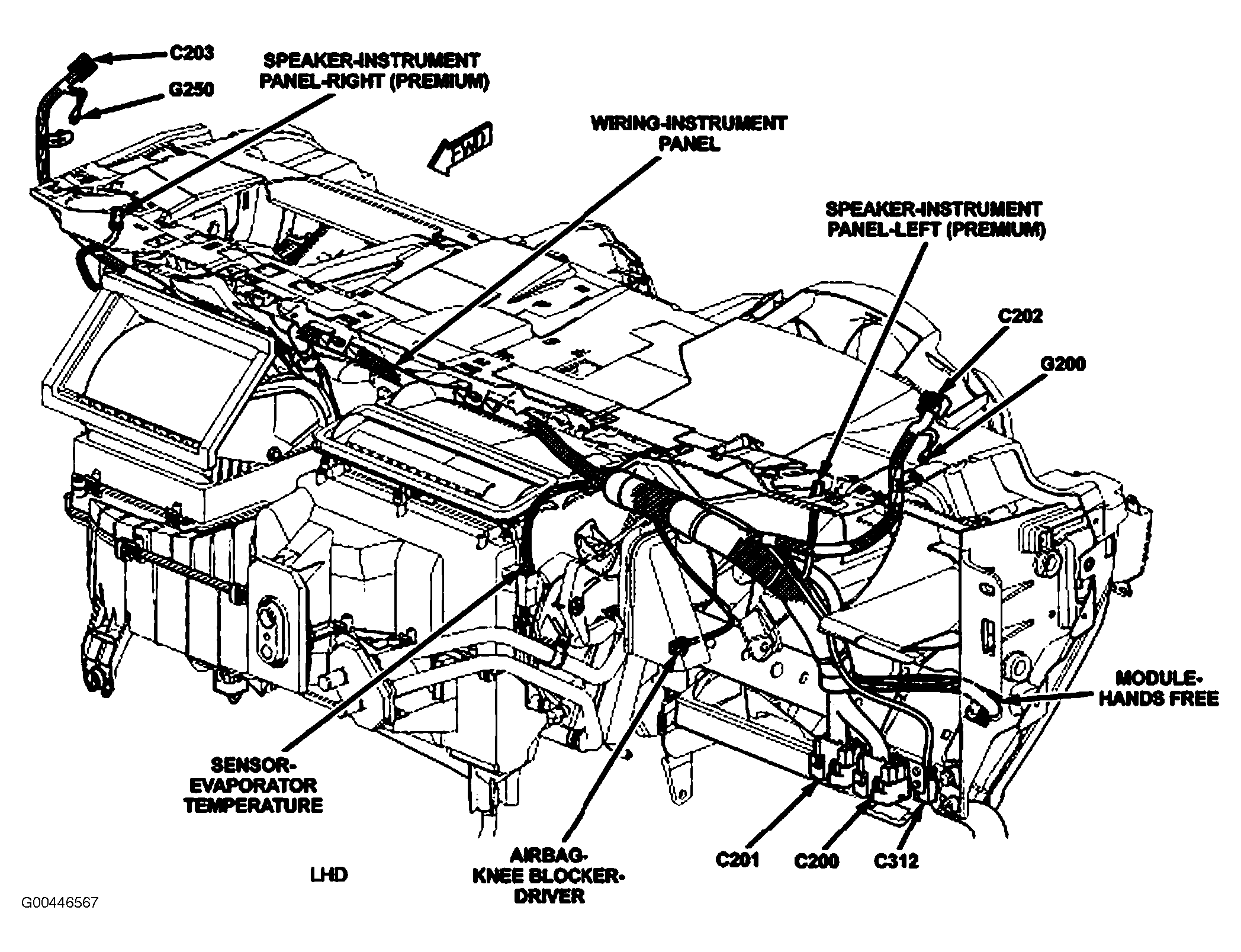

| Hands Free Module | Left end of dash. See Figure. |
| Heated Seat Module | Under driver's seat. See Figure. |

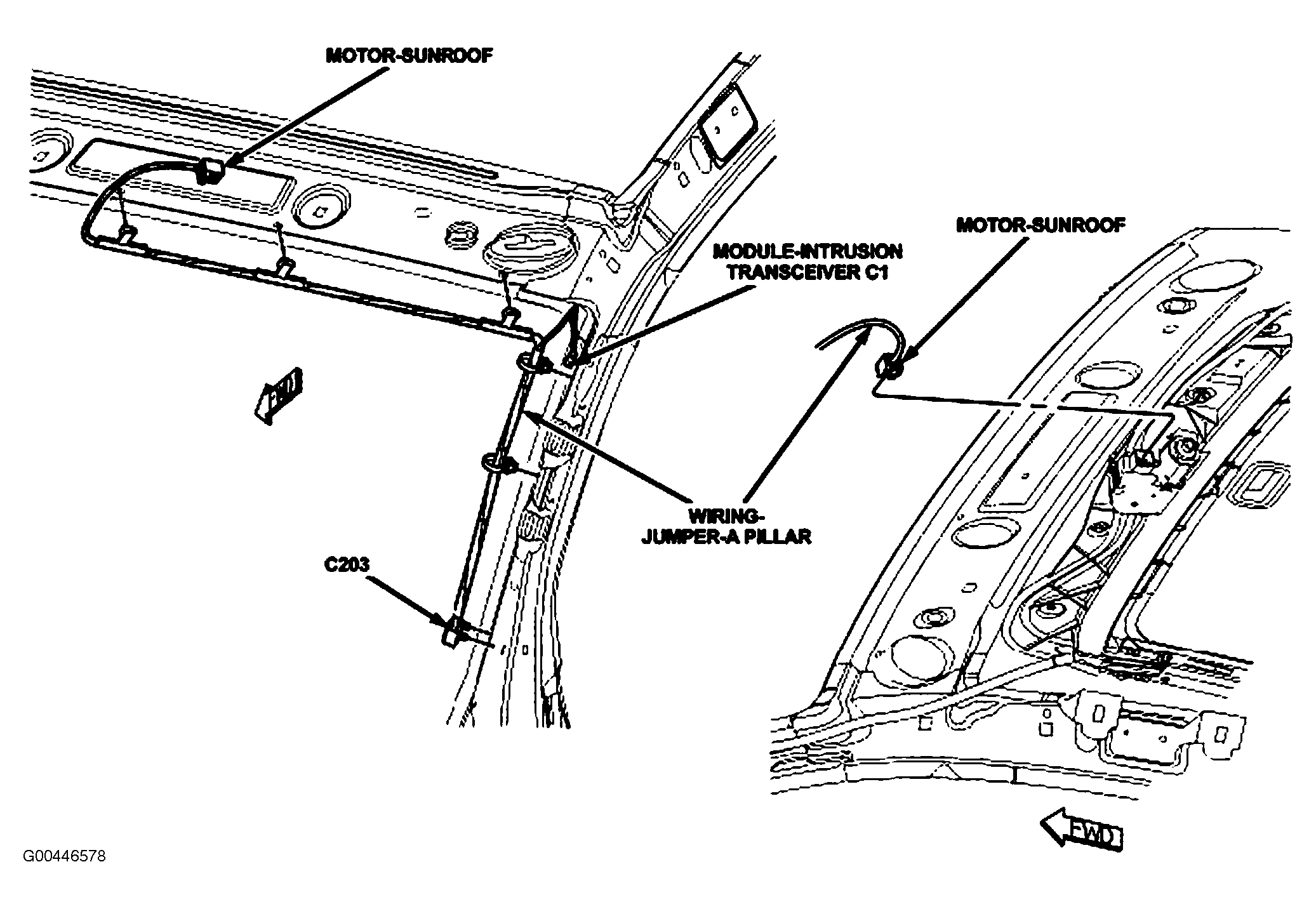

| Intrusion Transceiver Module | Top of right "A" pillar. See Figure. |

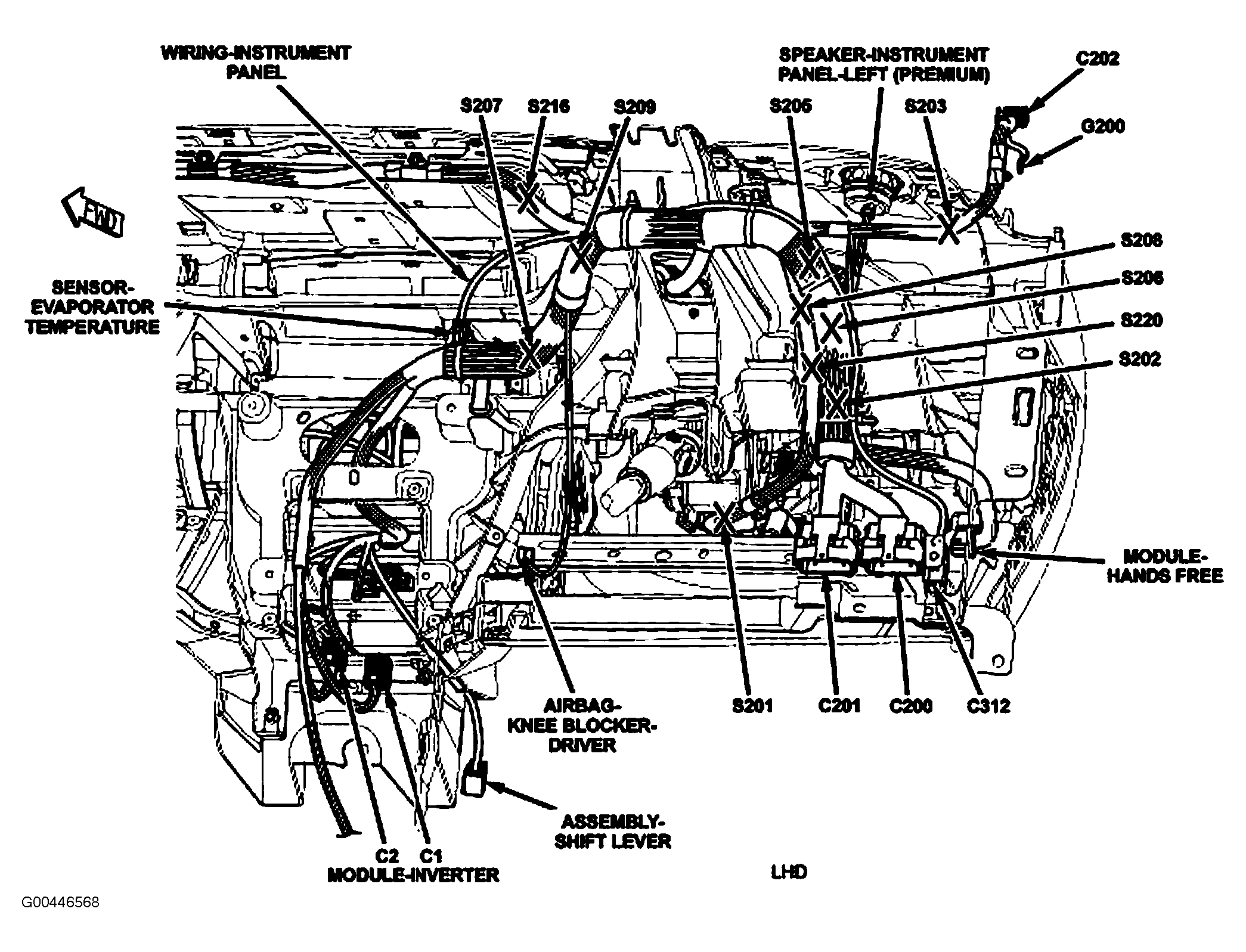

| Inverter Module | Behind center of dash. See Figure. |

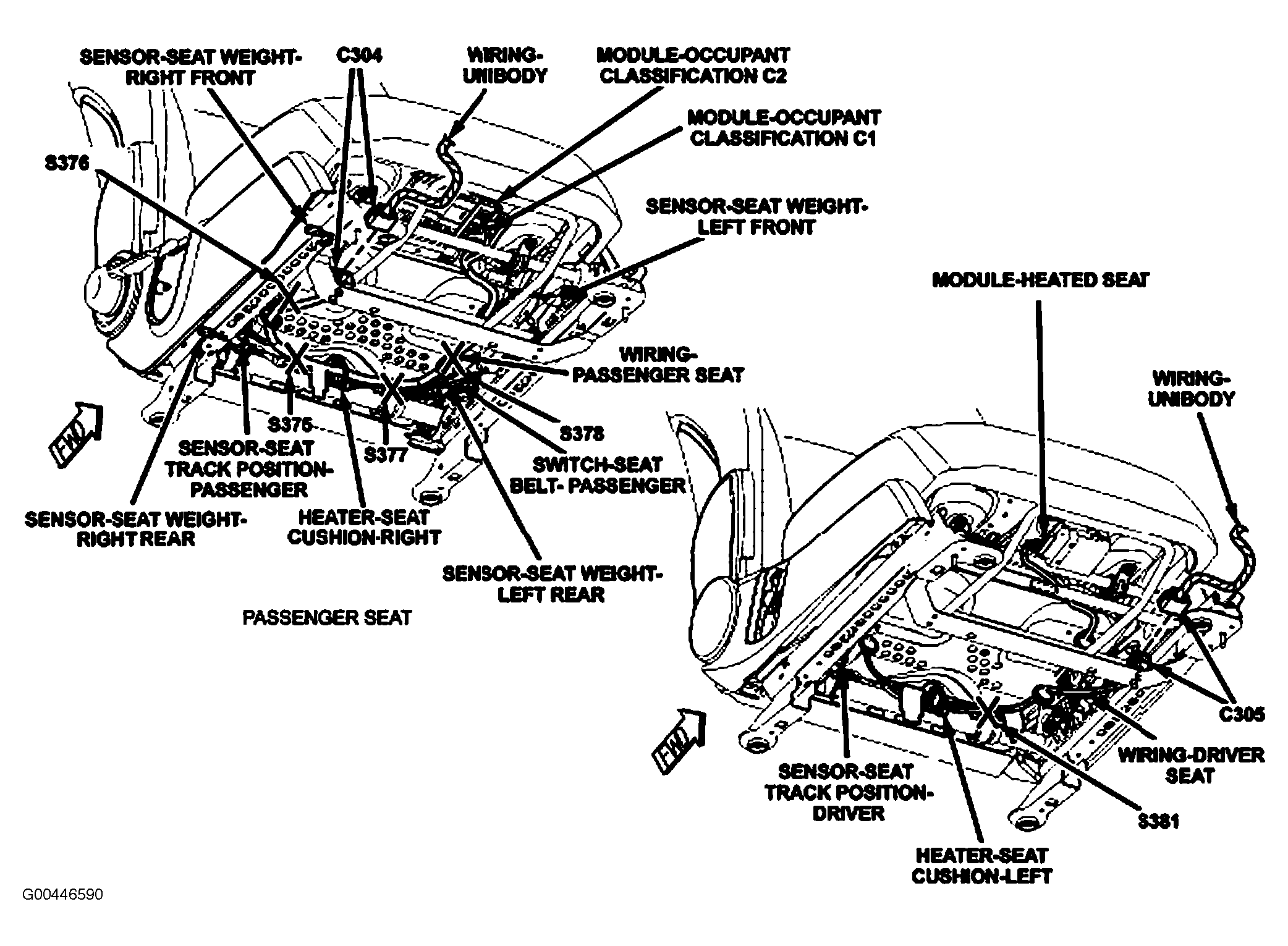

| Occupant Classification Module | Under right front seat. See Figure. |

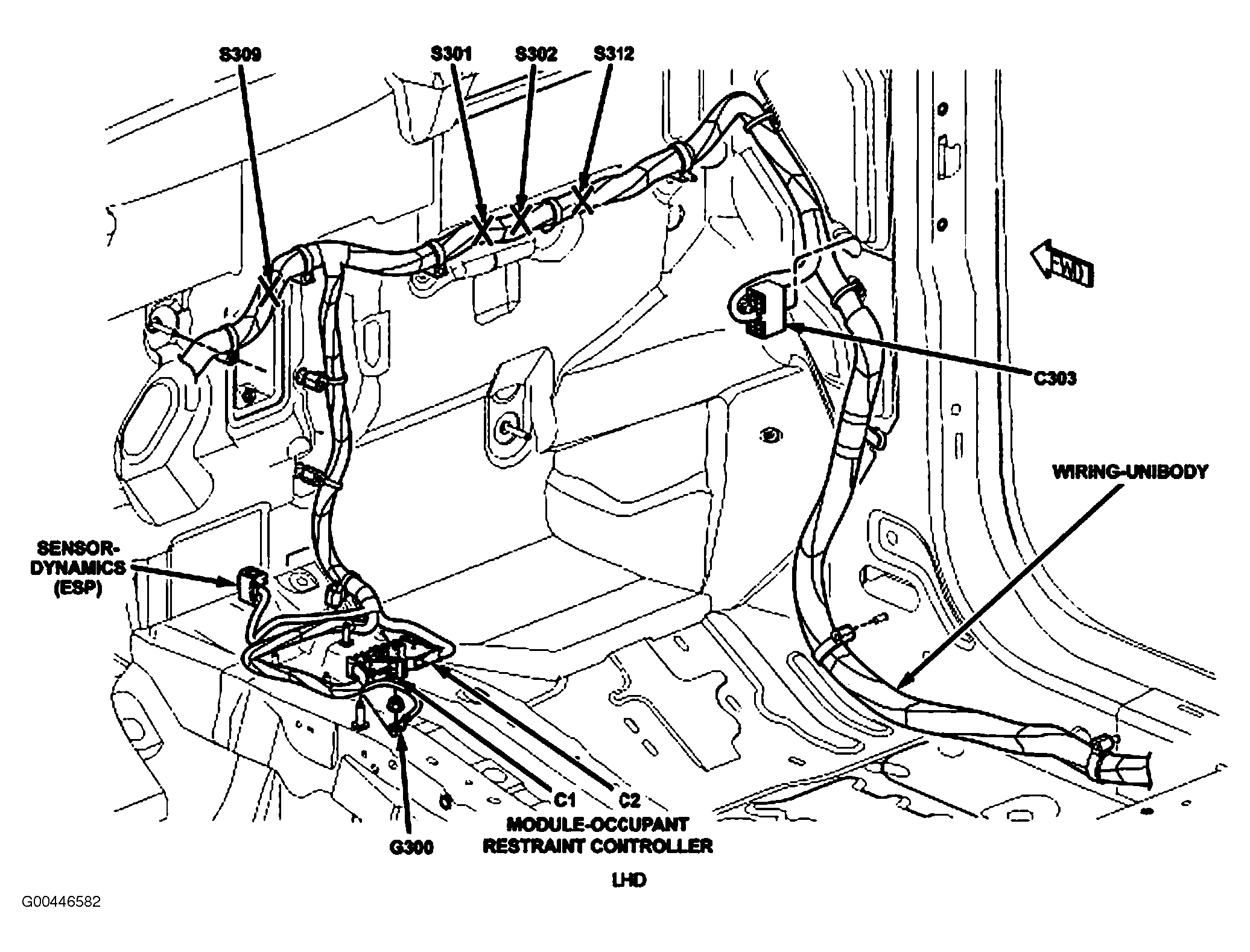

| Occupant Restraint Controller Module | Under front of center console. See Figure. |

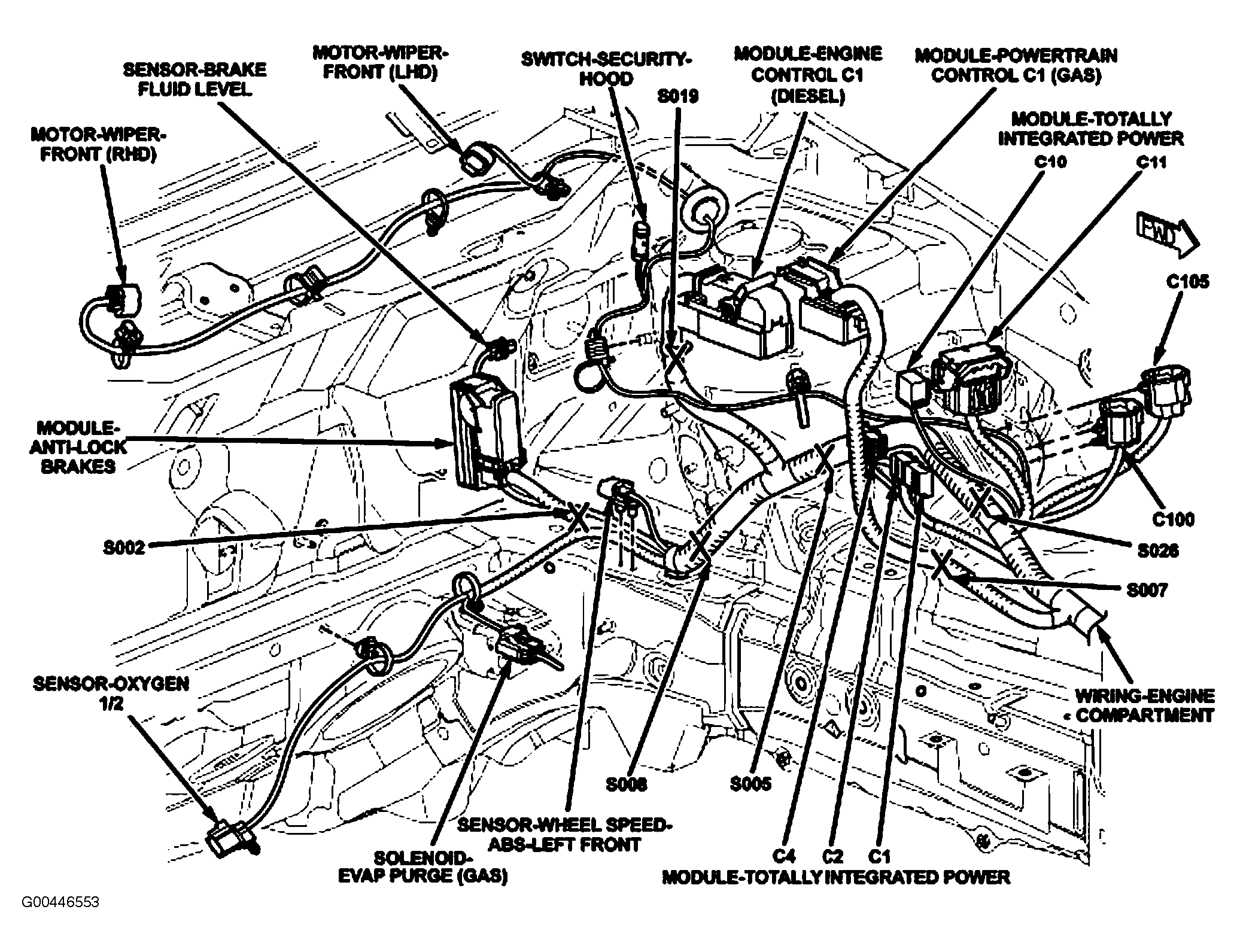

| Powertrain Control Module | Left rear of engine compartment. See Figure. |

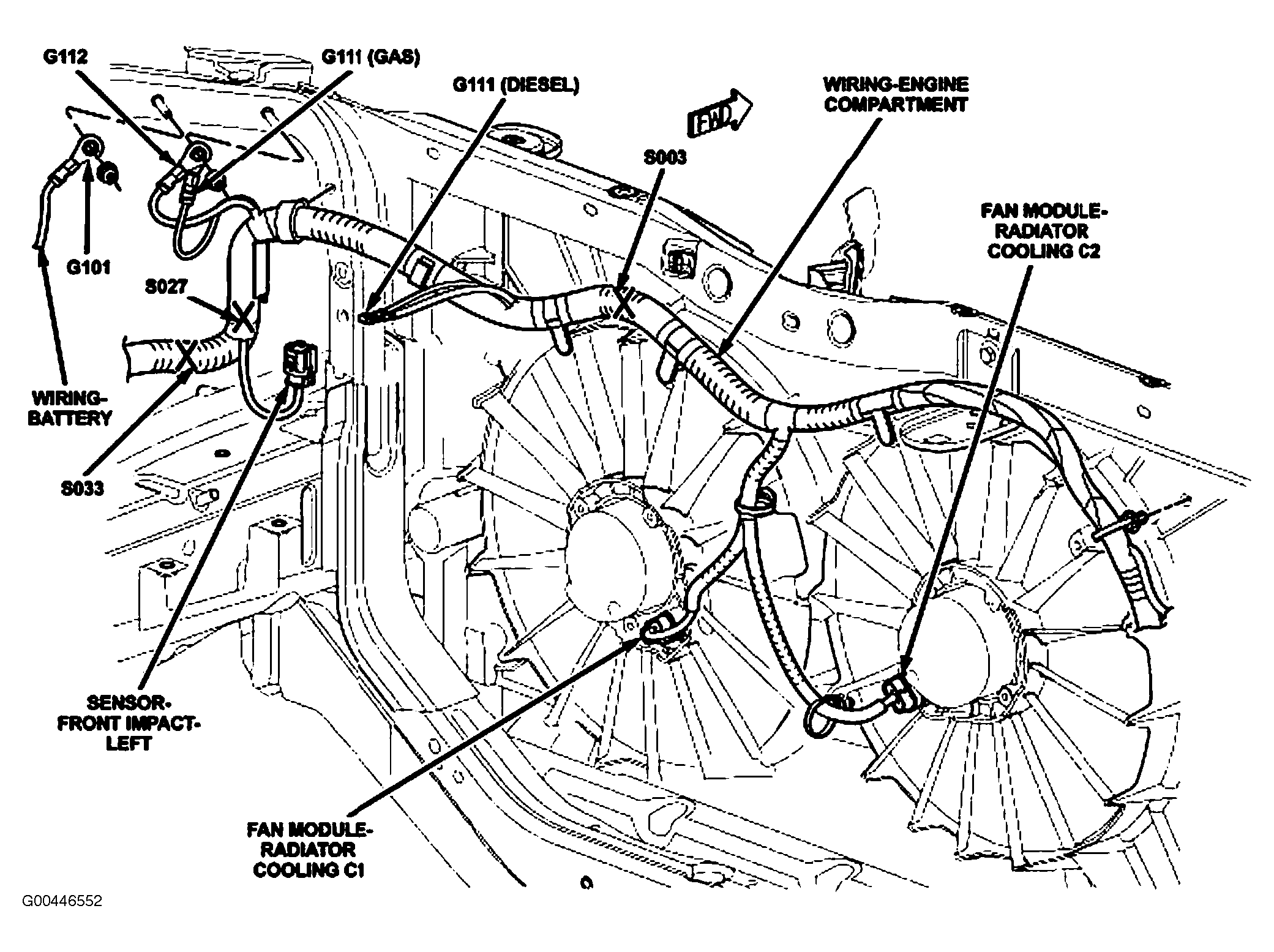

| Radiator Cooling Fan Module (2) | On left/right cooling fan motor. See Figure. |

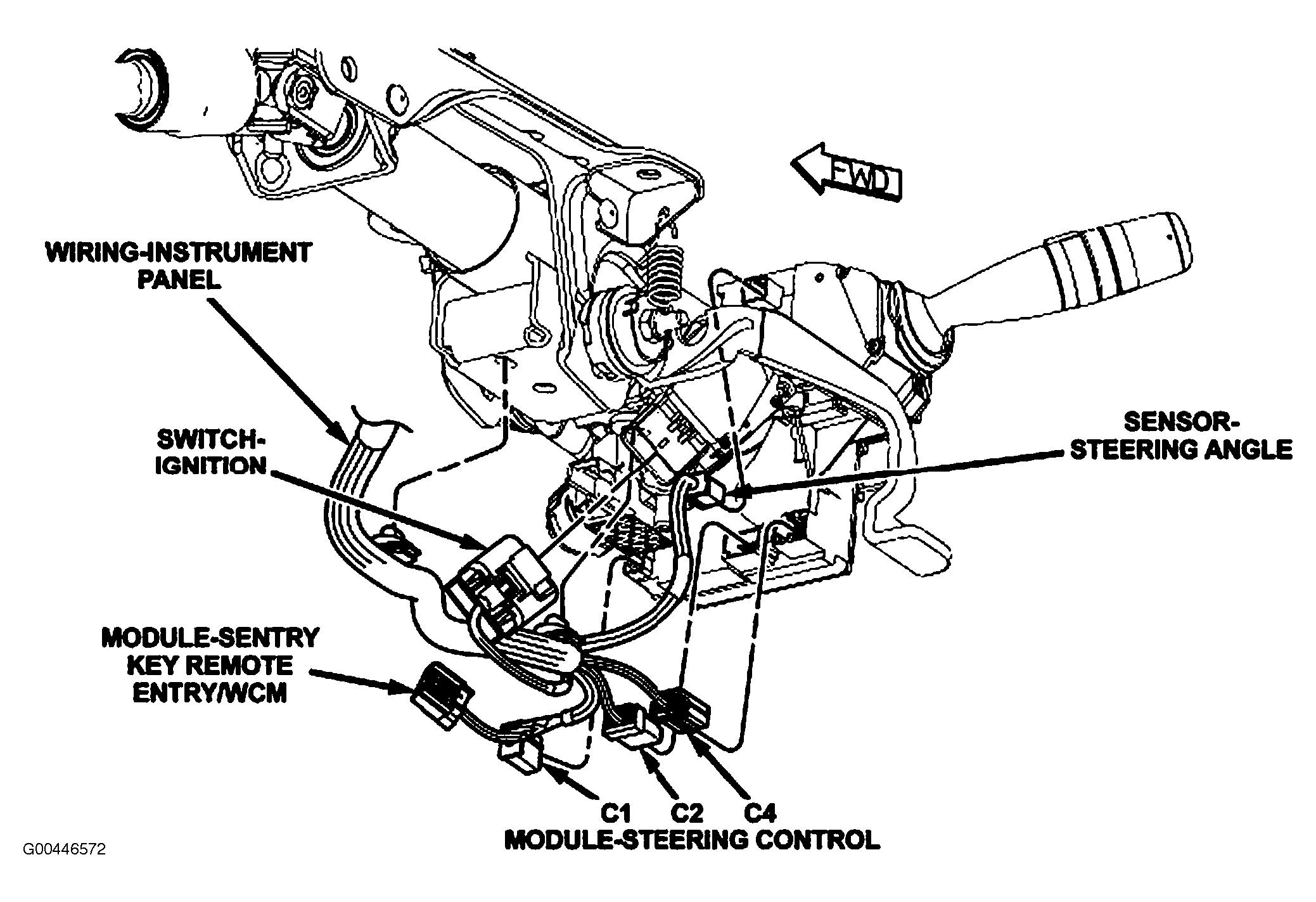

| Remote Key Entry/WCM Sentry Module | Under steering column. See Figure. |
| Steering Control Module | On steering column. See Figure. |
| Totally Integrated Power Module | Left side of engine compartment. See Figure. |

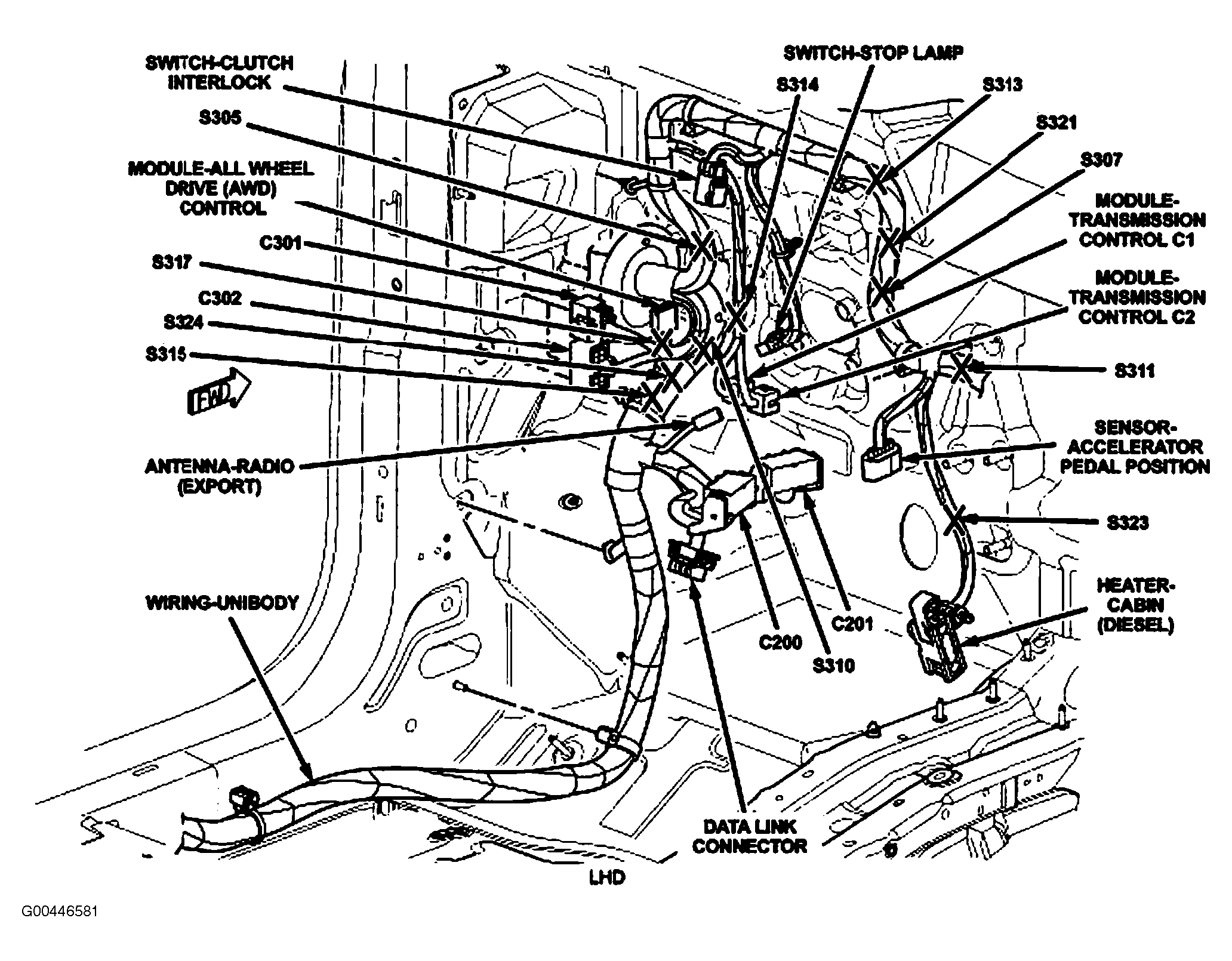

| Transmission Control Module | Behind left kick panel. See Figure. |

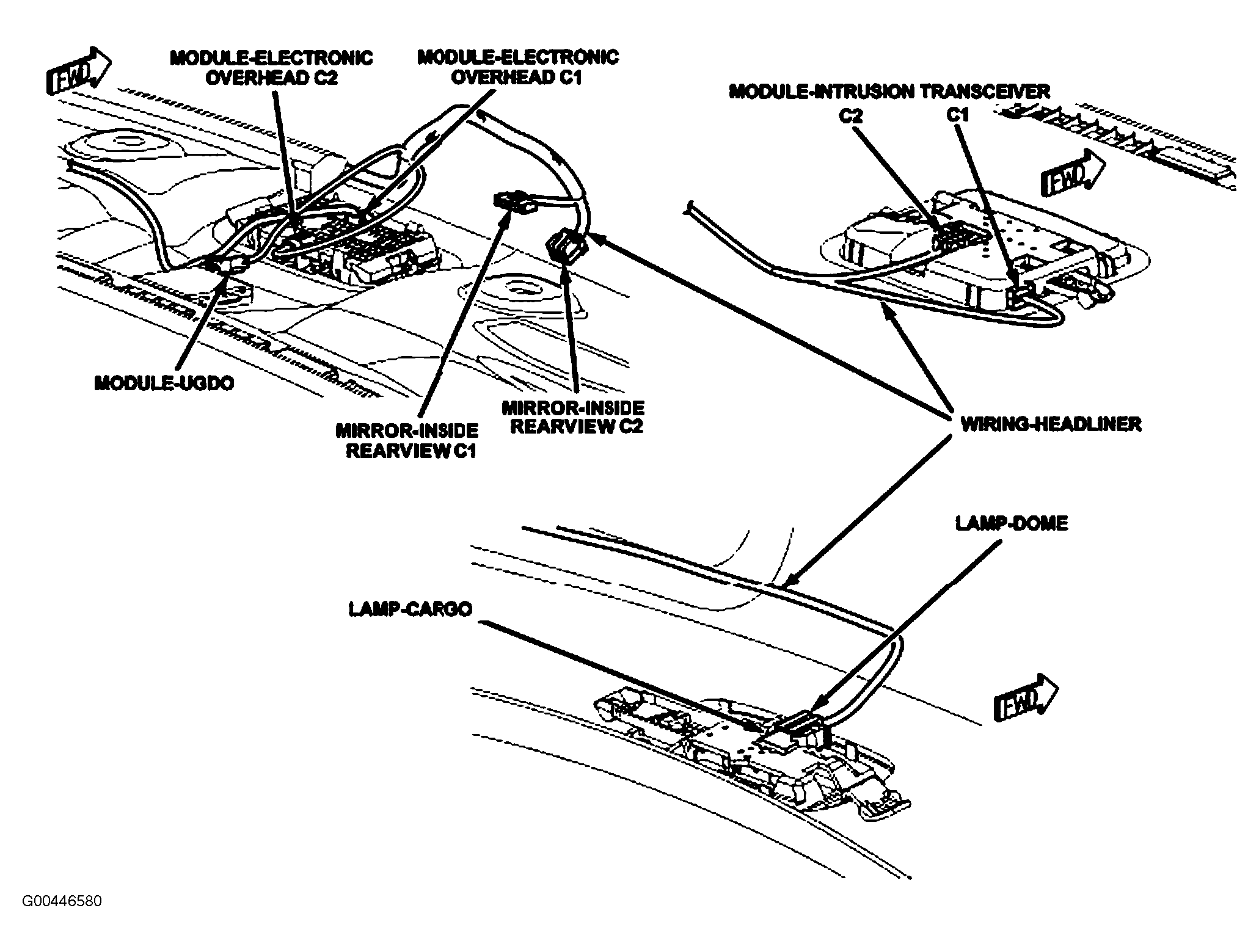

| UGDO Module | Front center of roof. See Figure. |
