Cover-Timing Chain: Removal

WARNING: This page is about a different variant/trim than selected.

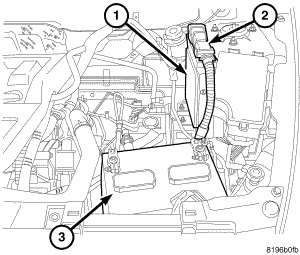

Fig 1: BATTERY
GC0055103Courtesy of CHRYSLER LLC
  1. Remove engine cover by pulling upward.
  2. Perform fuel pressure bleed procedure. Refer to STANDARD PROCEDURE .
  3. Disconnect negative cable at battery (3).

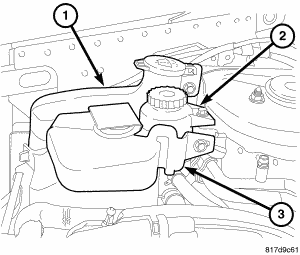

    Fig 2: Coolant Reservoir
    GC0055104Courtesy of CHRYSLER LLC
  4. Remove coolant recovery bottle (3).
  5. Remove windshield washer bottle (1).
  6. Remove power steering reservoir (2) and set aside.

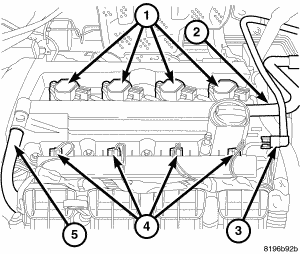

    Fig 3: COIL CONNECTOR
    GC0054590Courtesy of CHRYSLER LLC
  7. Remove make up air hose (2).
  8. Remove PCV hose (5).
  9. Disconnect ignition coil electrical connectors (1).
  10. Remove cylinder head cover. See REMOVAL .

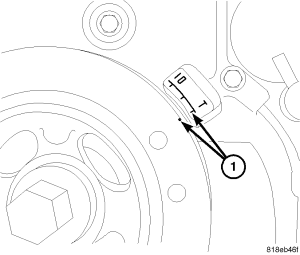

    Fig 4: TDC
    GC0055105Courtesy of CHRYSLER LLC
  11. Raise vehicle.
  12. Remove right lower splash shield.
  13. Set engine to TDC (1).
  14. Remove accessory drive belt. Refer to REMOVAL .

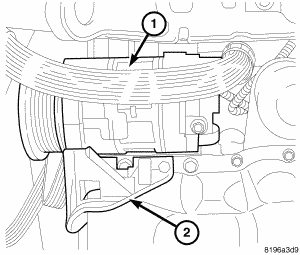

    Fig 5: A/C COMPRESSOR
    GC0055106Courtesy of CHRYSLER LLC
  15. Remove lower A/C compressor (1) retaining bolts.
  16. Remove A/C compressor lower bracket (2).

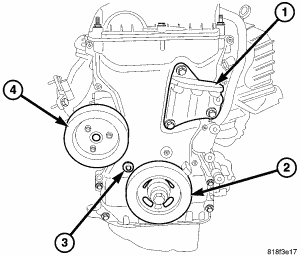

    Fig 6: Engine Front
    GC0055107Courtesy of CHRYSLER LLC
  17. Remove accessory drive belt lower idler pulley.
  18. Remove crankshaft damper (2).
  19. Remove front crankshaft oil seal. See REMOVAL .
  20. Remove water pump pulley (4).
  21. Remove engine mount bracket (1) lower bolt.

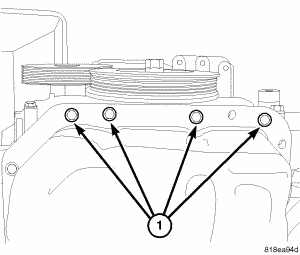

    Fig 7: Timing Chain Cover Lower Bolts
    GC0055108Courtesy of CHRYSLER LLC
  22. Remove timing chain cover lower bolts (1).
  23. Lower vehicle.

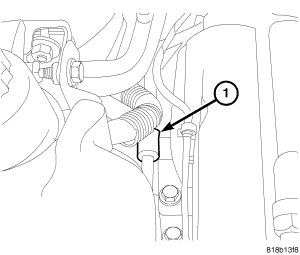

    Fig 8: Power Steering Line Support
    GC0055109Courtesy of CHRYSLER LLC
  24. Remove power steering line support (1).
  25. Remove power steering pump and set aside.
  26. Support engine with a suitable jack and a block of wood under the oil pan.

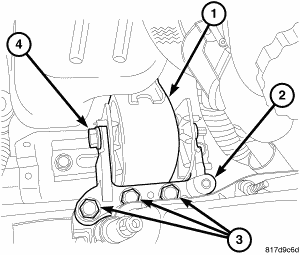

    Fig 9: Right Engine Mount
    GC0055110Courtesy of CHRYSLER LLC
  27. Remove right engine mount to mount bracket bolts (3).
  28. Remove accessory drive belt upper idler pulley.
    Fig 10: Engine Front
    GC0055107Courtesy of CHRYSLER LLC
  29. Remove right engine mount bracket (1).
  30. Remove accessory drive belt tensioner.
  31. Remove timing chain cover retaining bolts.

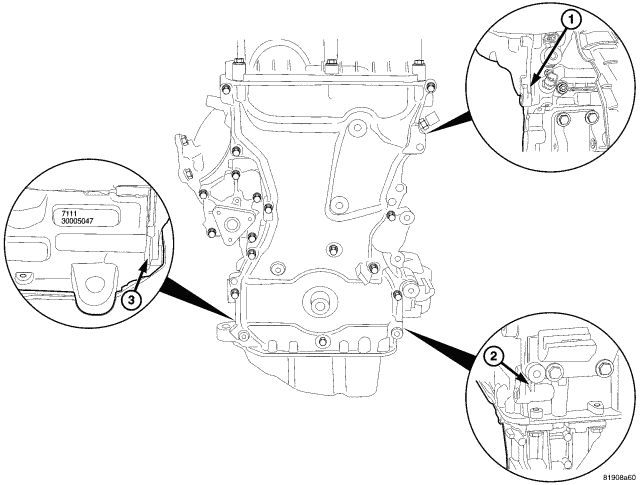

    Fig 11: TIMING CHAIN COVER PRY POINTS
    GC0055111Courtesy of CHRYSLER LLC
  32. Remove timing chain cover using pry points (1,2,3).
    Fig 12: TIMING CHAIN COVER REMOVAL
    GC0055112Courtesy of CHRYSLER LLC
  33. Remove timing chain cover (1) out through the bottom of the vehicle.
