Sensor-Oil Temperature: Installation

WARNING: This page is about a different variant/trim than selected.

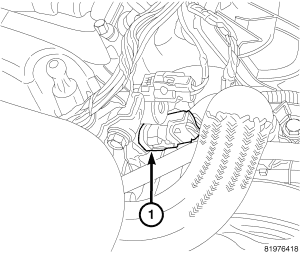

Fig 1: OIL TEMPERATURE SENSOR
GC0057355Courtesy of CHRYSLER LLC
  1. If re-using the oil temperature sensor, coat the threads with Mopar® thread sealant.
  2. Install oil temperature sensor (1). Tighten to 8 N.m (71 in. lbs.).
  3. Connect electrical connector.
