Sensor/Switch-Engine Oil Psi: Installation

WARNING: This page is about a different variant/trim than selected.

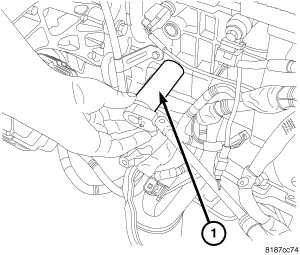

Fig 1: OIL SENDER
GC0057353Courtesy of CHRYSLER LLC
NOTE: If the oil pressure sensor is removed, it must be replaced with a new  sensor.
CAUTION: The oil pressure switch has tapered threads, over tightening could crack the engine block.
  1. Install oil pressure sending unit using oil pressure socket C-4597 (1) torque to 8 N.m (71 in. lbs.).
  2. Connect electrical connector.
