Engine Mounting: Mount-Rear: Removal

WARNING: This page is about a different variant/trim than selected.

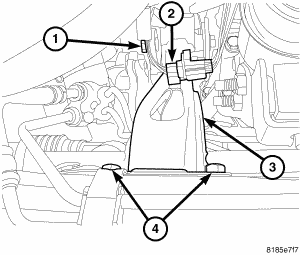

Fig 1: REAR MOUNT-ATX
GC0057320Courtesy of CHRYSLER LLC
  1. Remove rear mount retaining bolts (4).
  2. Remove rear mount through bolt (1).
  3. Remove oxygen sensor connector (2) from mount.
  4. Remove rear mount (3).
