Engine Mounting: Mount-Left: Removal

WARNING: This page is about a different variant/trim than selected.

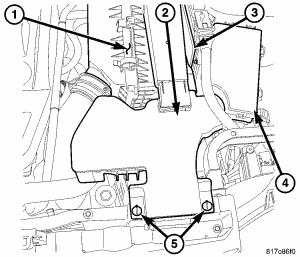

Fig 1: AIR CLEANER INLET
GC0057314Courtesy of CHRYSLER LLC
  1. Remove air cleaner inlet (2) and air cleaner housing (1).

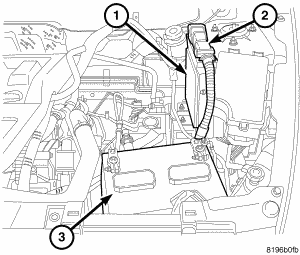

    Fig 2: BATTERY
    GC0057315Courtesy of CHRYSLER LLC
  2. Remove PCM (1).
  3. Remove PCM mounting bracket.
  4. Disconnect negative cable from battery (3).
  5. Support transaxle with a suitable jack.

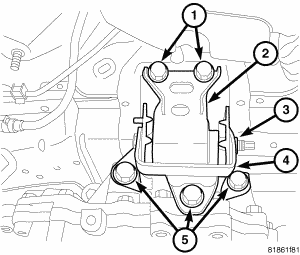

    Fig 3: LEFT MOUNT
    GC0057316Courtesy of CHRYSLER LLC
  6. Remove left mount through bolt (3).
  7. Remove left mount bracket to body frame rail fasteners (1).
  8. Remove mount.
