Engine Mounting: Mount-Left: Installation

WARNING: This page is about a different variant/trim than selected.
Fig 1: LEFT MOUNT
GC0057316Courtesy of CHRYSLER LLC
  1. Position mount (2) in place.
  2. Install left mount to frame rail bolts (1) and torque to 75 N.m (55 ft. lbs.).
  3. Install mount through bolt (3) and torque to 100 N.m (74 ft.lbs.).
  4. Remove jack.
    Fig 2: BATTERY
    GC0057317Courtesy of CHRYSLER LLC
  5. Install PCM mounting bracket.
  6. Install PCM (1).
  7. Connect negative cable to battery (3).

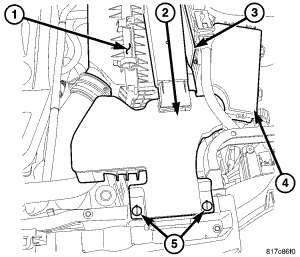

    Fig 3: AIR CLEANER INLET
    GC0057318Courtesy of CHRYSLER LLC
  8. Install air cleaner housing (1) and air cleaner inlet (2).
