Engine Mounting: Mount-Front: Installation

WARNING: This page is about a different variant/trim than selected.

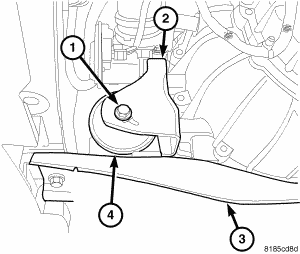

Fig 1: FRONT MOUNT THROUGH BOLT
GC0057319Courtesy of CHRYSLER LLC
  1. Position mount (4) and torque bolts to 47 N.m (35 ft. lbs.).
  2. Install fore aft member (3) and torque bolts to 100N.m (74 ft. lbs.).
  3. Install mount through bolt (1) and torque to 47 N.m (35 ft. lbs.).
  4. Lower vehicle.
