Engine Block: Frame-Ladder: Removal

WARNING: This page is about a different variant/trim than selected.

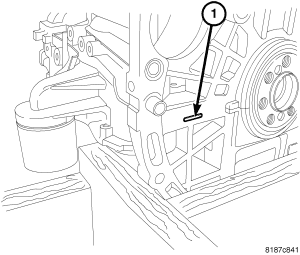

Fig 1: PRY POINT 1
GC0057304Courtesy of CHRYSLER LLC
  1. Remove oil pan. See REMOVAL .
  2. Remove oil pump. See REMOVAL .
  3. Remove ladder frame retaining bolts.
  4. Remove ladder frame using pry point cast in the rear of the block (1).

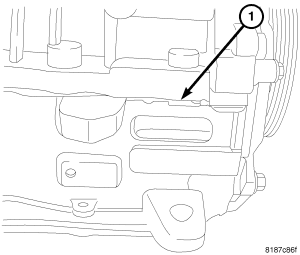

    Fig 2: PRY POINT 2
    GC0057305Courtesy of CHRYSLER LLC
  5. To assist in removing the ladder frame another (1) pry point cast in the right side of the block.
