Engine Block: Frame-Ladder: Installation

WARNING: This page is about a different variant/trim than selected.

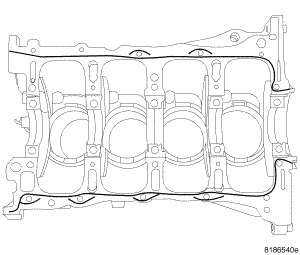

Fig 1: SEALING LADDER FRAME

Courtesy of CHRYSLER LLC

NOTE: Parts must be assembled before within 10 before RTV skins.

Apply a 2 mm bead of RTV as shown.

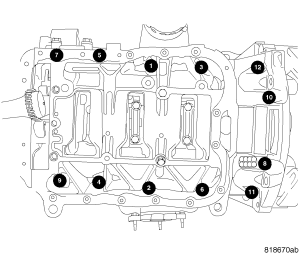

Fig 2: LADDER FRAME TORQUE
Courtesy of CHRYSLER LLC
Install bolts and torque as shown following a two step method.
1. First: All to 10 N.m (7ft. lbs.)
2. Second: All to 22 N.m (16 ft. lbs.)
Install oil pump. See INSTALLATION .
Install oil pan. See INSTALLATION .
