Engine Block: Damper-Vibration: Removal

WARNING: This page is about a different variant/trim than selected.

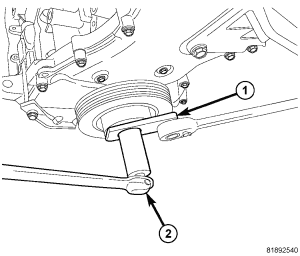

Fig 1: DAMPER REMOVAL
GC0057302Courtesy of CHRYSLER LLC
  1. Remove accessory drive belts. Refer to REMOVAL .
  2. Install Damper holder 9707 (1).
  3. Remove crankshaft damper bolt.
  4. Pull damper off crankshaft.
