1.8L Engine
WARNING: This page is about a different variant/trim than selected.
The 1.8 Liter (110 cu. in.) in-line four cylinder engine is a double overhead camshaft with mechanical lash buckets and four valves per cylinder design. This engine is NOT free-wheeling; meaning that the pistons will contact the valves in the event of a timing chain failure.
The cylinders are numbered from front of the engine to the rear. The firing order is 1-3-4-2.

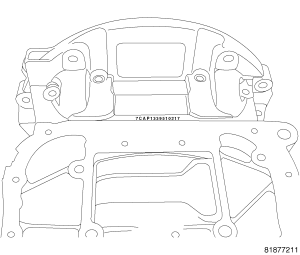

The engine serial number is located on the rear of the cylinder block. The serial number contains engine build date information.
