Element-Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.

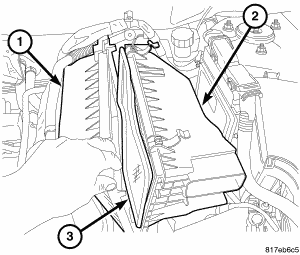

Fig 1: AIR FILTER
GC0057173Courtesy of CHRYSLER LLC
  1. Install new filter element (3).

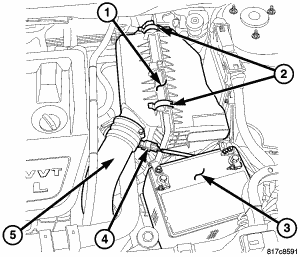

    Fig 2: AIR CLEANER HOUSING
    GC0057174Courtesy of CHRYSLER LLC
  2. Place cover over air cleaner housing. Snap clasps (2) in place.
  3. Install air inlet tube (5).
  4. Connect intake air temperature sensor connector (4).

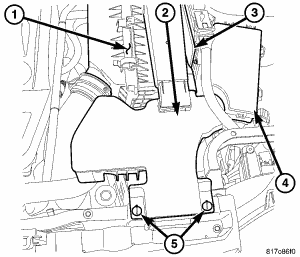

    Fig 3: AIR CLEANER INLET
    GC0057175Courtesy of CHRYSLER LLC
  5. Install fresh air inlet (2) on air cleaner housing (1) and lock retainers (5).
