Fuel Injector: Removal

WARNING: Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.

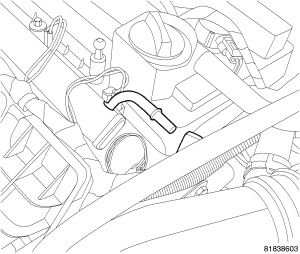

Fig 1: ELECTRICAL CONNECTORS

Courtesy of CHRYSLER LLC

Release the fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
Disconnect the negative battery cable.
Disconnect the electrical connectors from the fuel injectors.

Fig 2: FUEL LINE AT RAIL
Courtesy of CHRYSLER LLC
Fuel line connection at fuel rail.

Fig 3: FUEL LINE CONNECTION
Courtesy of CHRYSLER LLC
Remove the fuel line from the fuel rail.

Fig 4: HARNESS CLIPS
Courtesy of CHRYSLER LLC
Remove wire harness from fuel rail mounting studs.

Fig 5: ELECTRICAL HARNESS REMOVED
Courtesy of CHRYSLER LLC
Remove the 2 bolts to the fuel rail at the lower manifold.

Fig 6: RAIL REMOVAL/INSTALL
Courtesy of CHRYSLER LLC
Remove the fuel rail.

Fig 7: FUEL RAIL ASSEMBLY
Courtesy of CHRYSLER LLC
Remove clip holding fuel injector to fuel rail.

Fig 8: FUEL INJECTOR AND RAIL
Courtesy of CHRYSLER LLC
Remove fuel injector clip and fuel injector from fuel rail.
