Brake Fluid Level Sensor Connector End View
Brake Fluid Level Sensor Connector End View

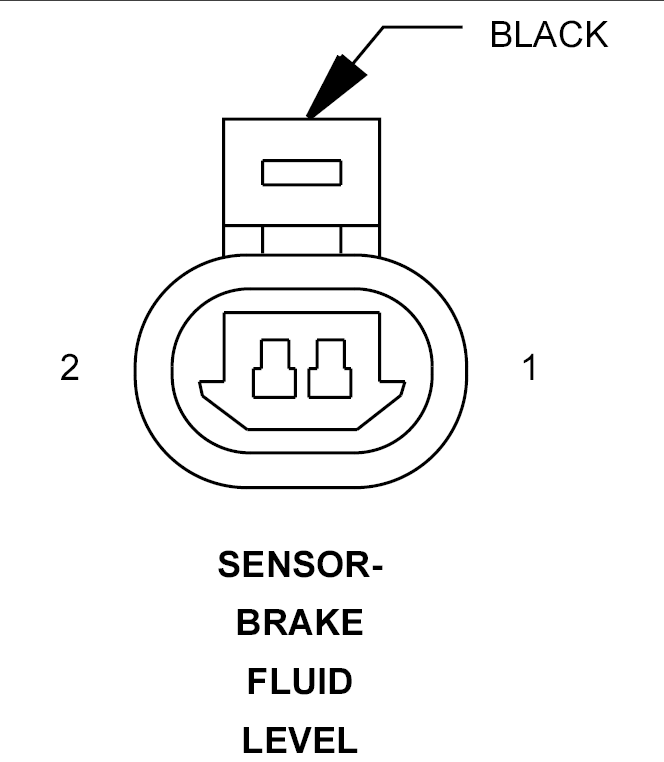

SENSOR-BRAKE FLUID LEVEL - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B20 20DG/RD
BRAKE FLUID LEVEL SWITCH SENSE
2
Z925 20BK/YL
GROUND
