Clutch System: Flywheel: Installation

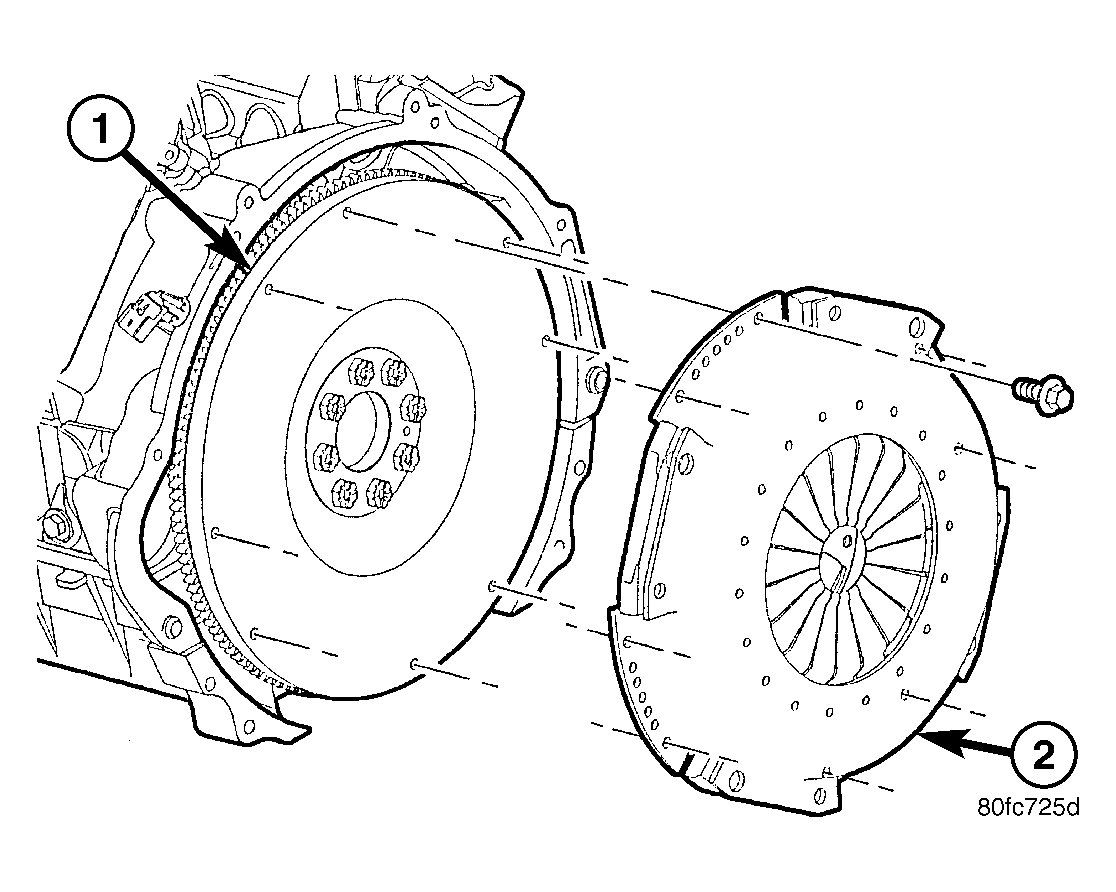

Fig 1: Installing Clutch Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - FLYWHEEL

2 - CLUTCH COVER

1. Clean flywheel bolts and apply thread sealer bolts.
2. Install flywheel (1) on engine and install flywheel bolts. See Fig 1.
3. Tighten flywheel bolts to 74 N.m (55 ft. lbs.).
4. Install clutch assembly (2), clutch housing and transmission.
