Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Behind front of center console. See Figure. |

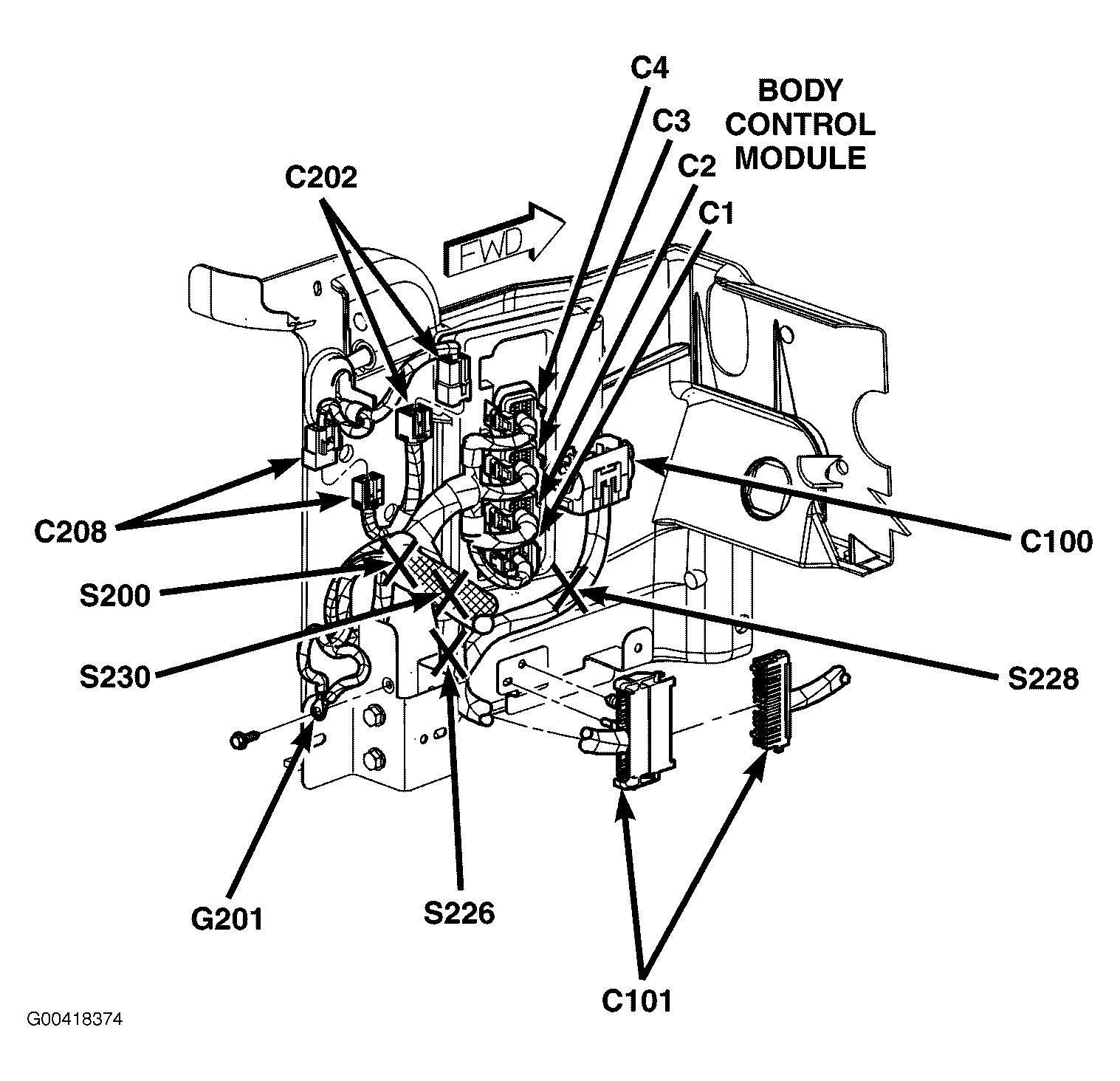

| Body Control Module | Left kick panel. See Figure. |

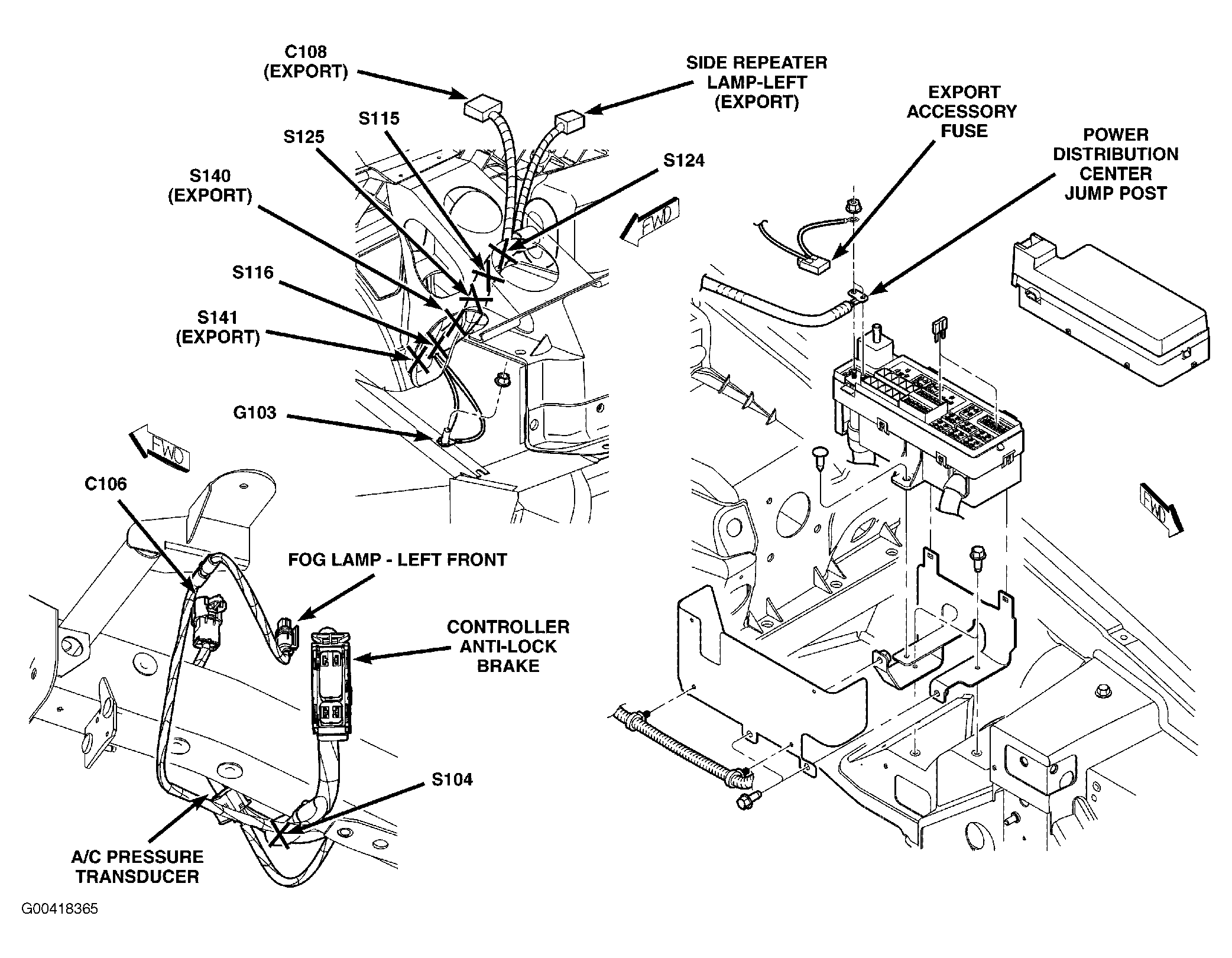

| Controller Anti-Lock Brake | At left front of engine compartment. See Figure. |

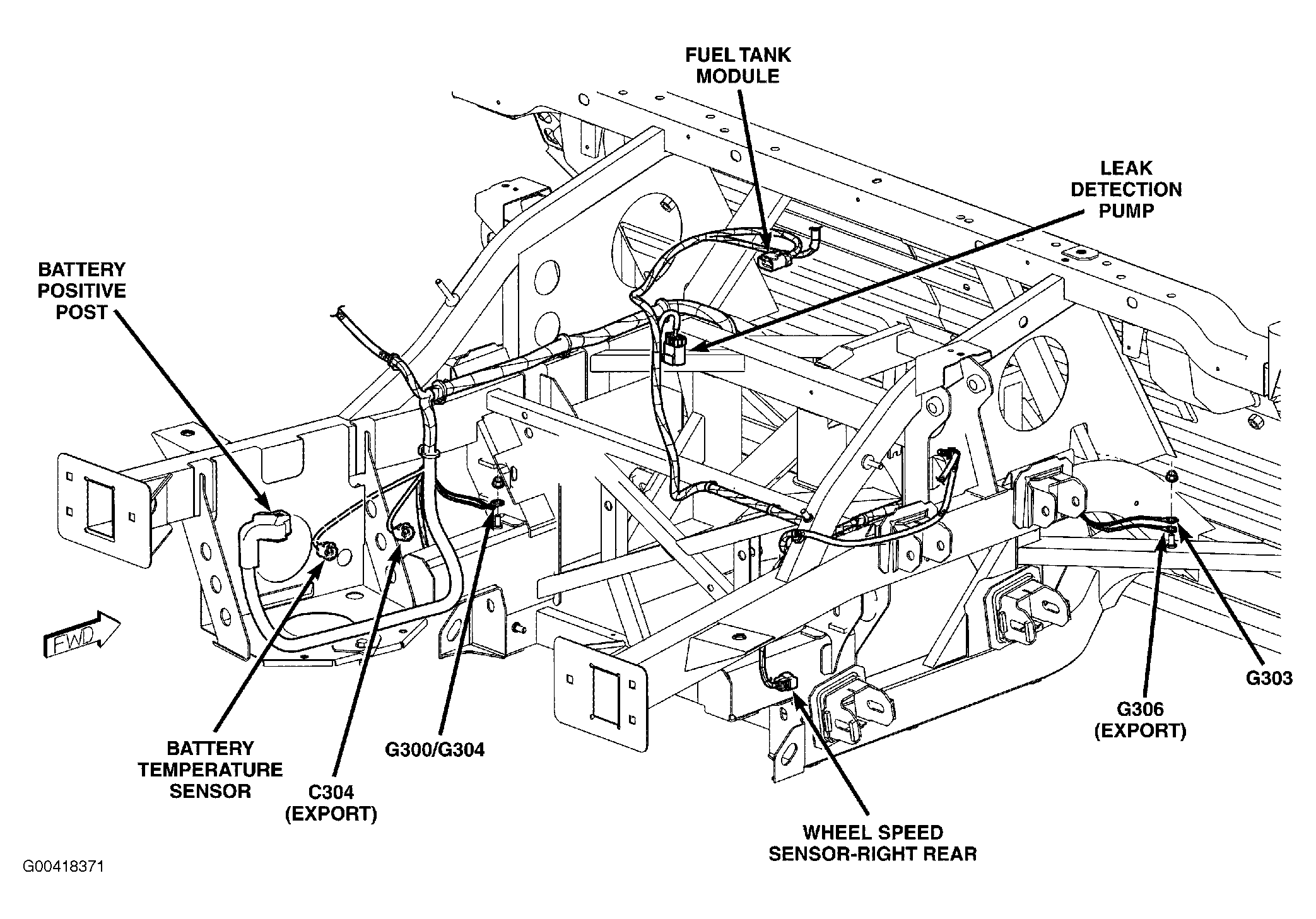

| Fuel Tank Module | In top of fuel tank. See Figure. |

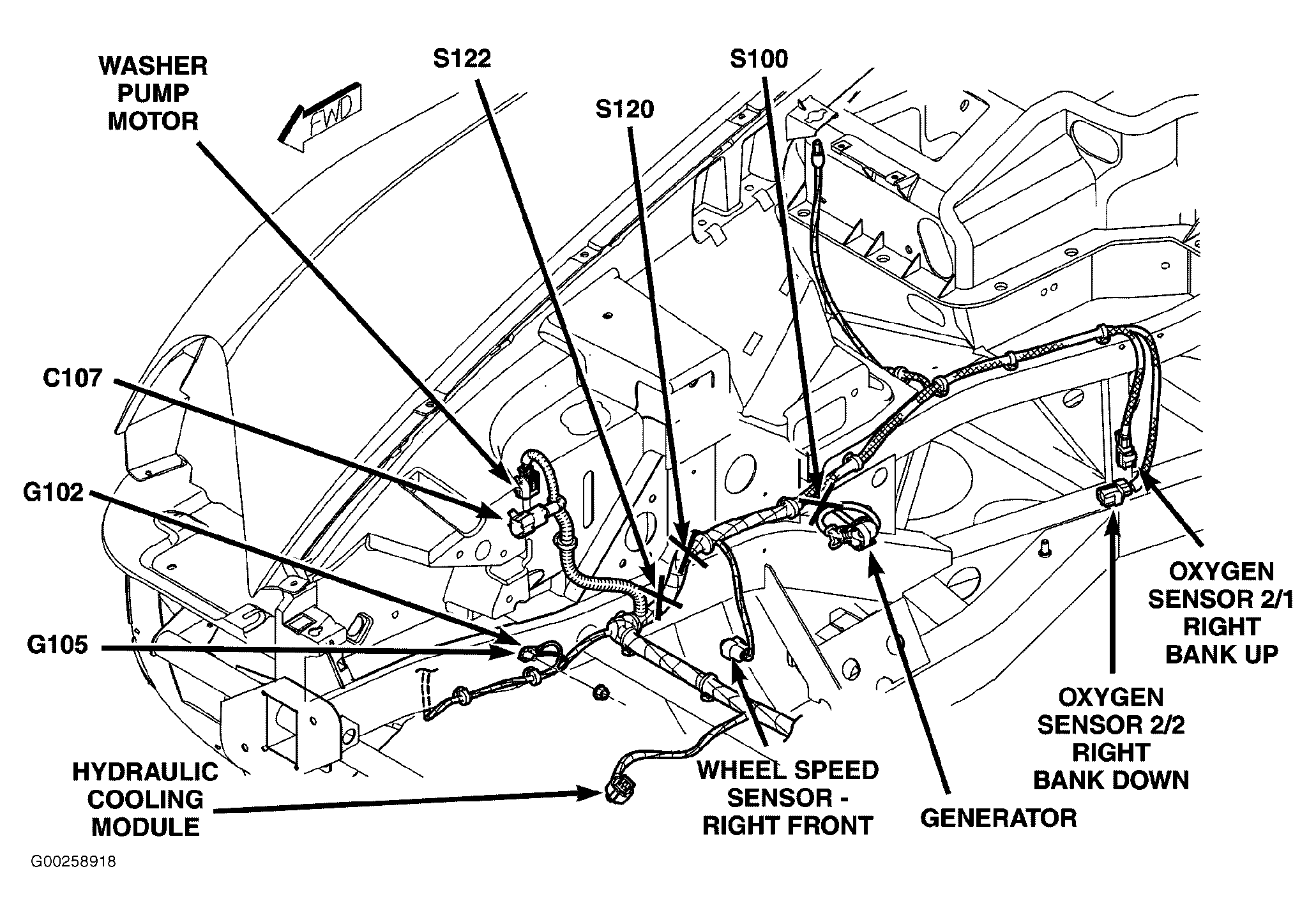

| Hydraulic Cooling Module | At right front of engine compartment. See Figure. |

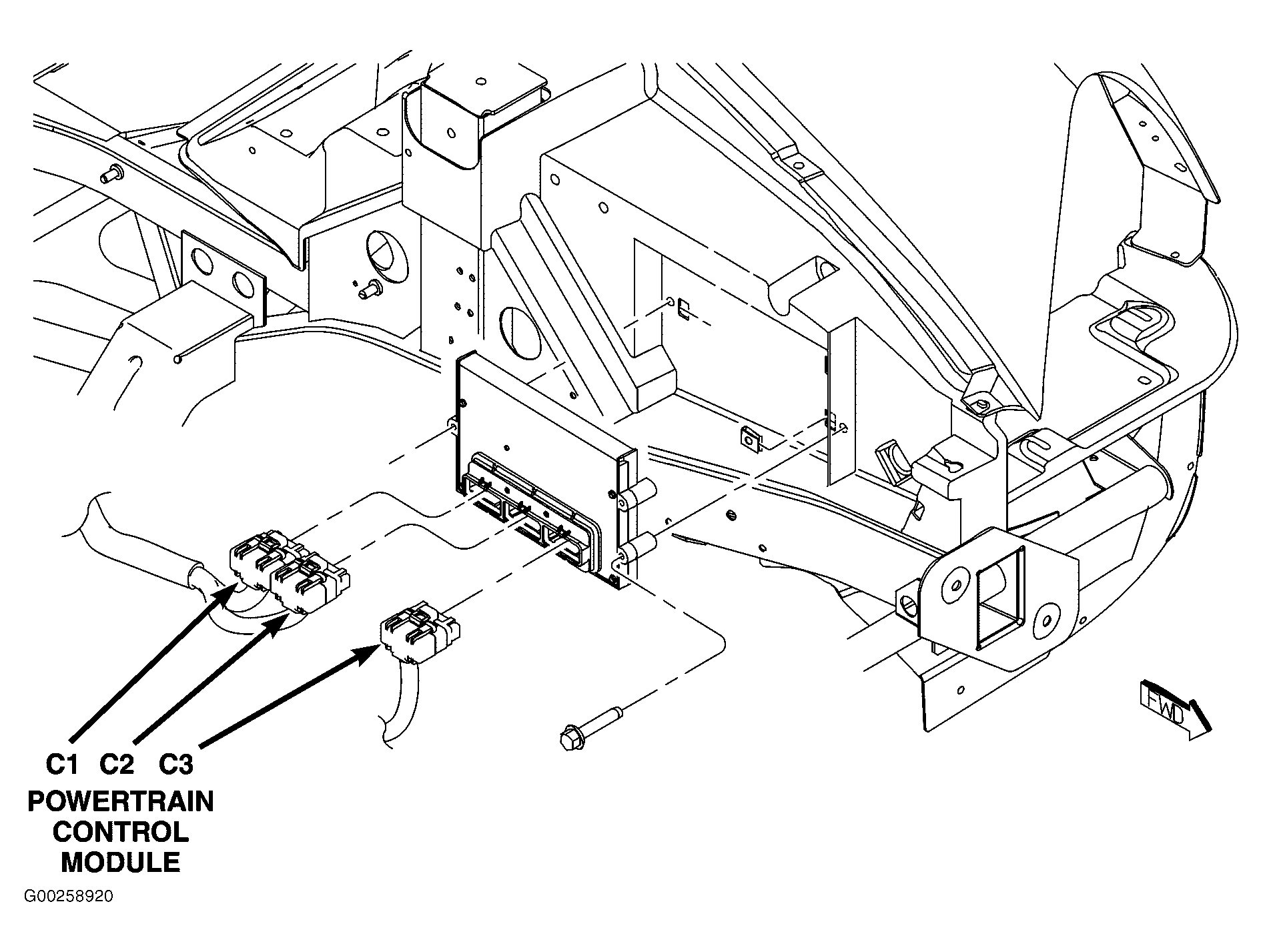

| Powertrain Control Module | At left front of engine compartment. See Figure. |
| Remote Keyless Entry Module | Behind left side of dash. |
| Tire Pressure Monitor Module | Behind center of dash. |

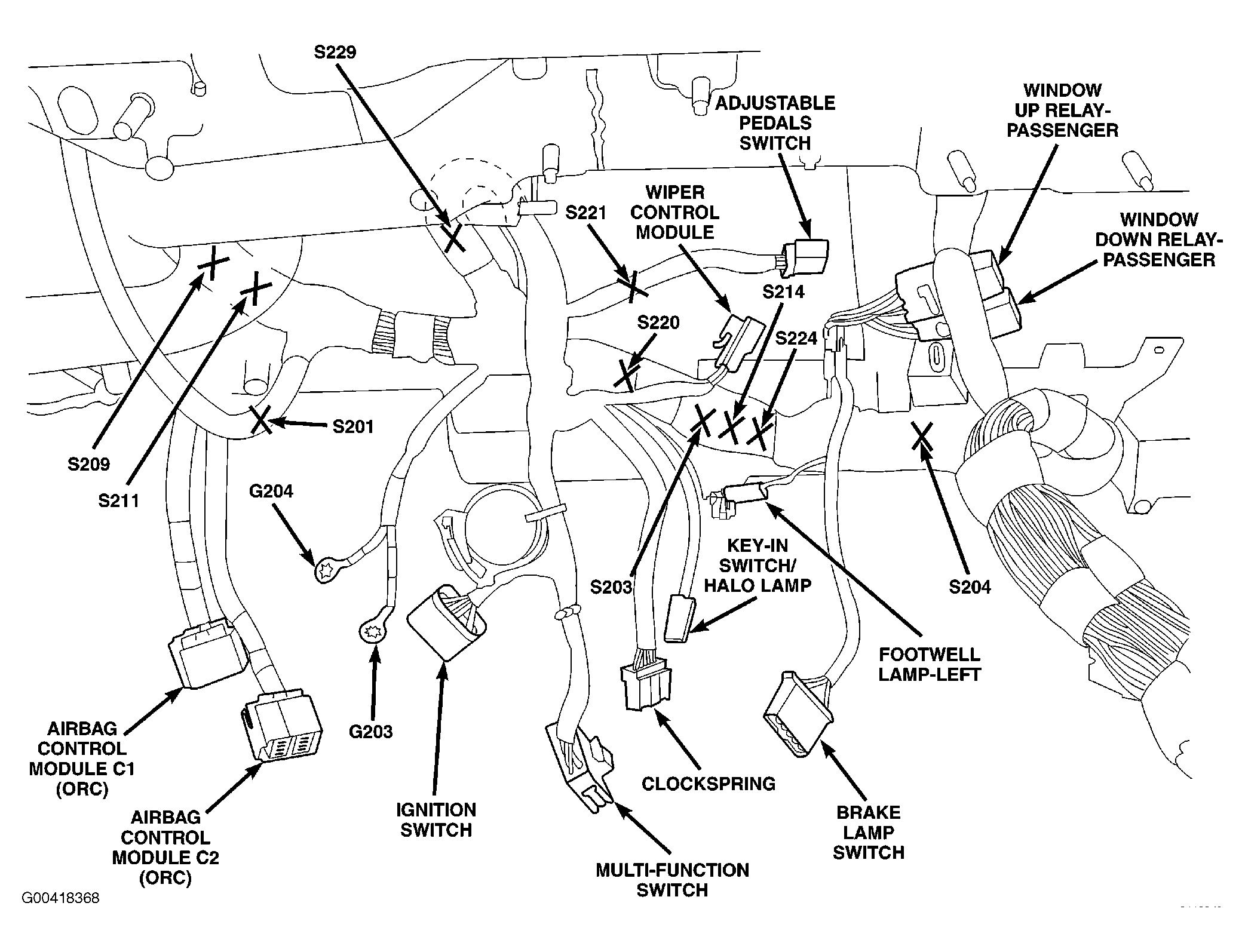

| Wiper Control Module | Behind instrument panel, near steering column. See Figure. |
