Schematic Diagrams

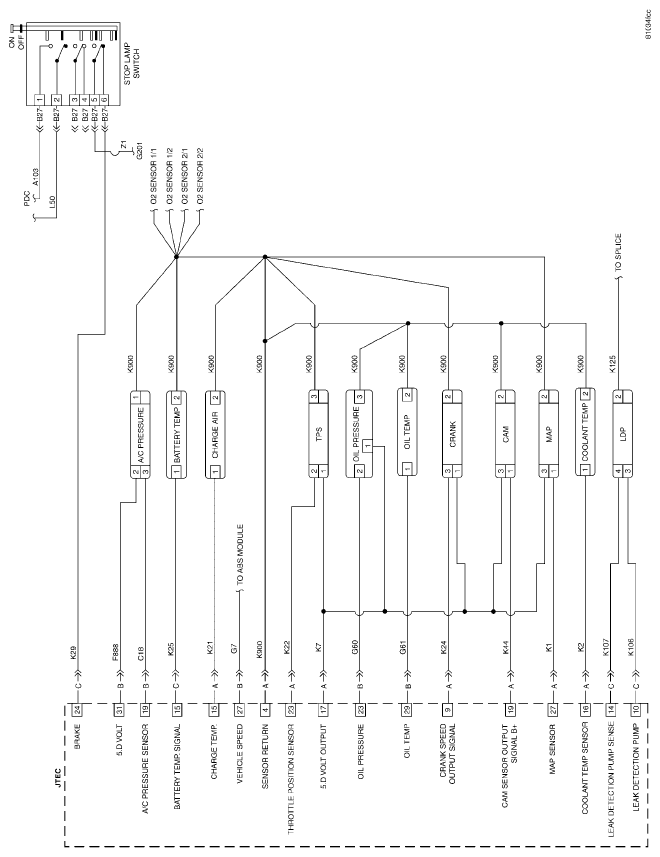

Fig 1: Engine Performance Schematic Diagrams (1 Of 3)
G04763762Courtesy of CHRYSLER

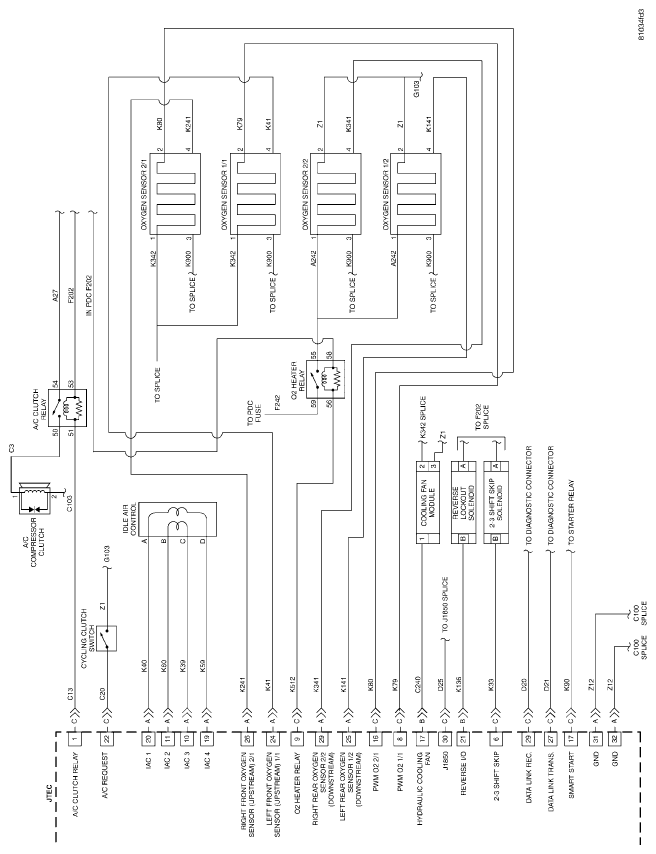

Fig 2: Engine Performance Schematic Diagrams (2 Of 3)
G04763763Courtesy of CHRYSLER

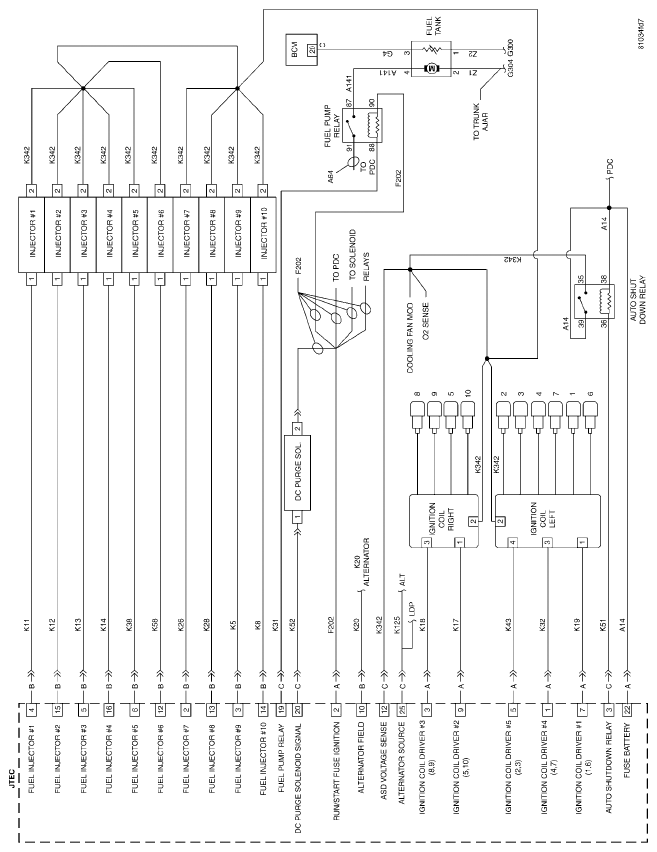

Fig 3: Engine Performance Schematic Diagrams (3 Of 3)
G04763764Courtesy of CHRYSLER
