Dodge and Ram
>>
2006
>>
Viper 2D Convertible
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures
>>
Connector PINOUTS
>>
Power Distribution Center
Power Distribution Center

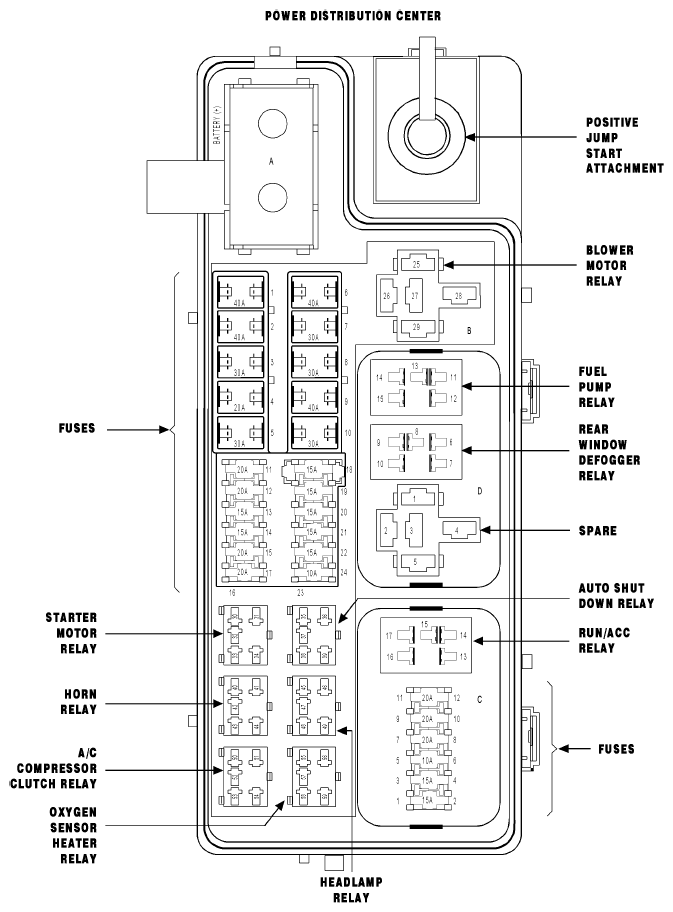

Fig 1: Identifying Power Distribution Center
Courtesy of CHRYSLER

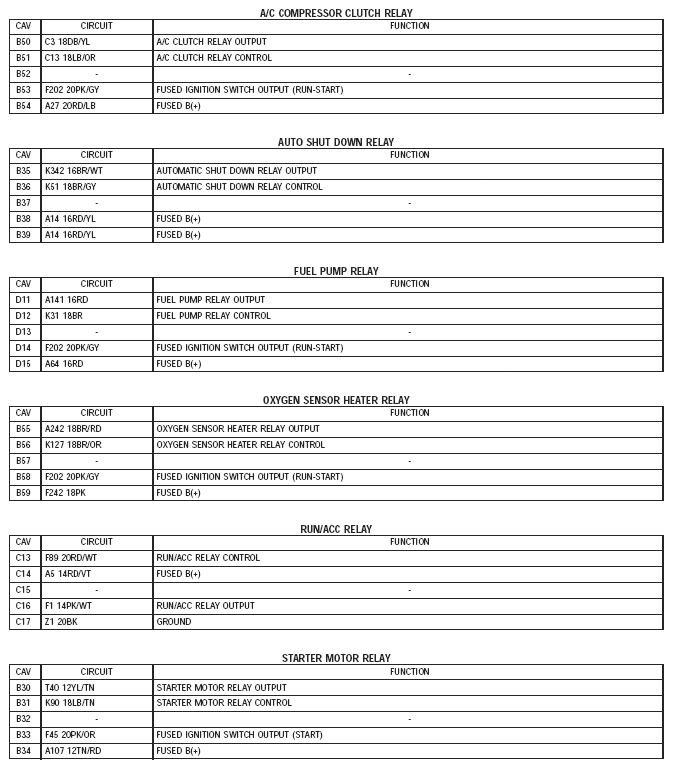

Fig 2: Power Distribution Center Relay Connector Pinouts Reference Chart
Courtesy of CHRYSLER
Courtesy of CHRYSLER
Courtesy of CHRYSLER
