CCV System: Operation

It meters the amount of crankcase vapors drawn out of the engine. The fixed orifice fitting is mounted in each of the valve covers in the rear of the engine. See  Fig 1 .

When the engine is operating, fresh air enters the engine and mixes with crankcase vapors. Manifold vacuum draws the vapor/air mixture through the fixed orifice and into the intake manifold. The vapors are then consumed during engine combustion.

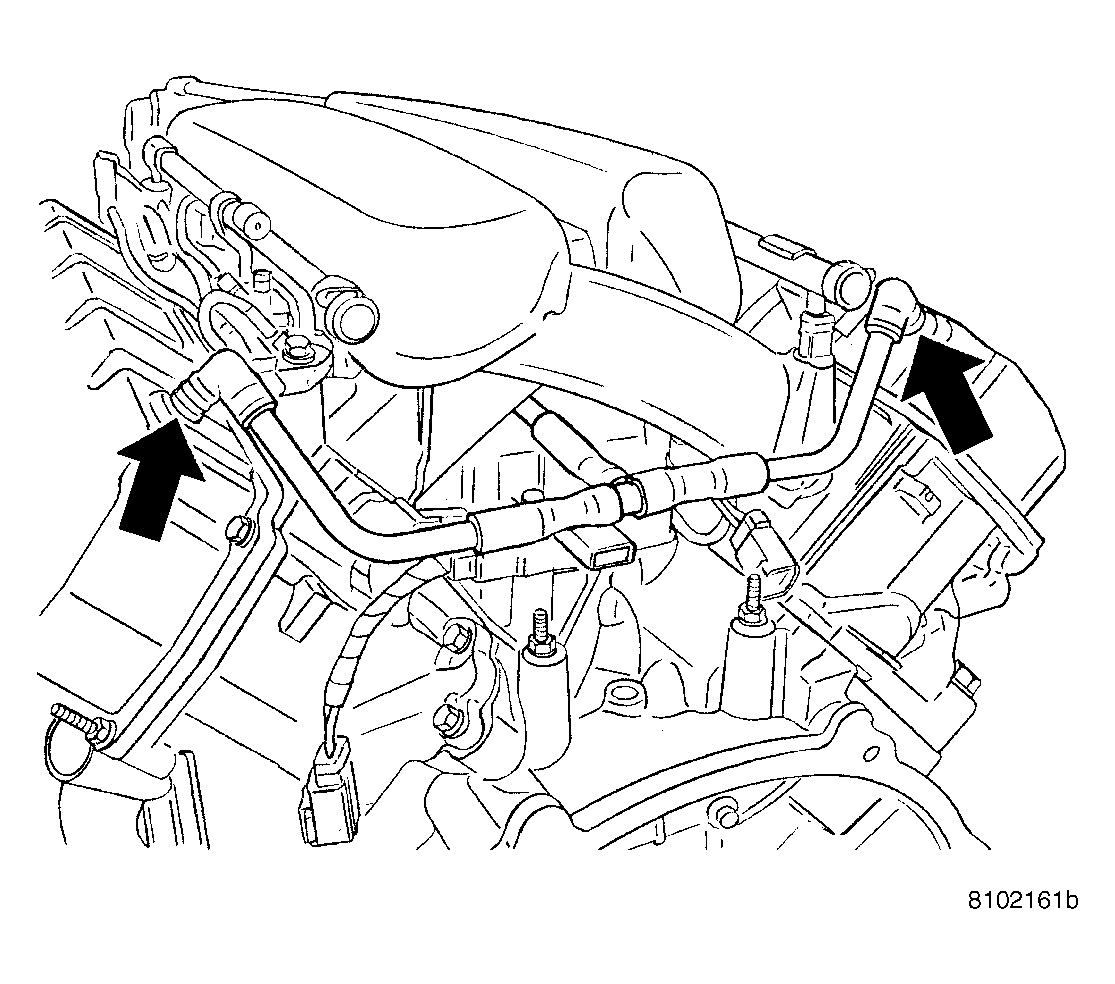

Fig 1: CC Location

Courtesy of DAIMLERCHRYSLER CORP.

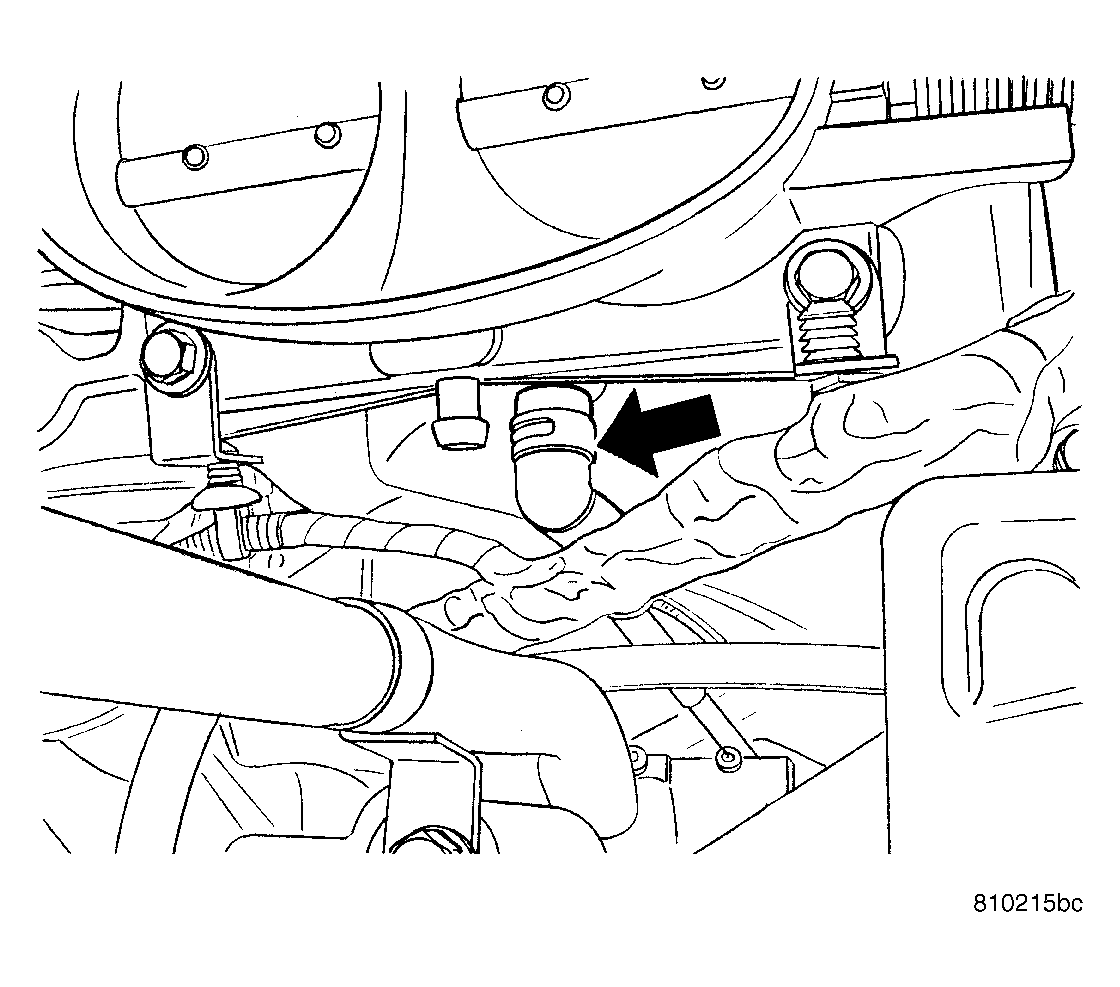

Fig 2: CCV Hose Connection At Throttle Body

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Rear Connection For CCV

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: CCV Hose

Courtesy of DAIMLERCHRYSLER CORP.
