Operation - 8.3L

The Camshaft Position Sensor is located above the water pump and under the throttle body. See Fig 1.

Fig 1: Camshaft Position Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

The camshaft position sensor provides cylinder identification to the Powertrain Control Module (PCM). See Fig 2. The sensor generates pulses. The PCM determines crankshaft position from the camshaft position sensor and crankshaft position sensor inputs. The PCM uses the input to determine fuel injection synchronization and to determine which ignition coil to energize.

Fig 2: Camshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The camshaft position sensor detects when a step down in the camshaft sprocket passes beneath it. See Fig 3. When the sensor detects the step down, the input voltage from the sensor to the PCM switches from low (0.3 volts) to high (5 volts). As the step up returns to the sensor, the input voltage switches back to low (0.3 volts). The paper spacer is not used on Viper. Don't use at all it plugs up the oil pickup screen.  .

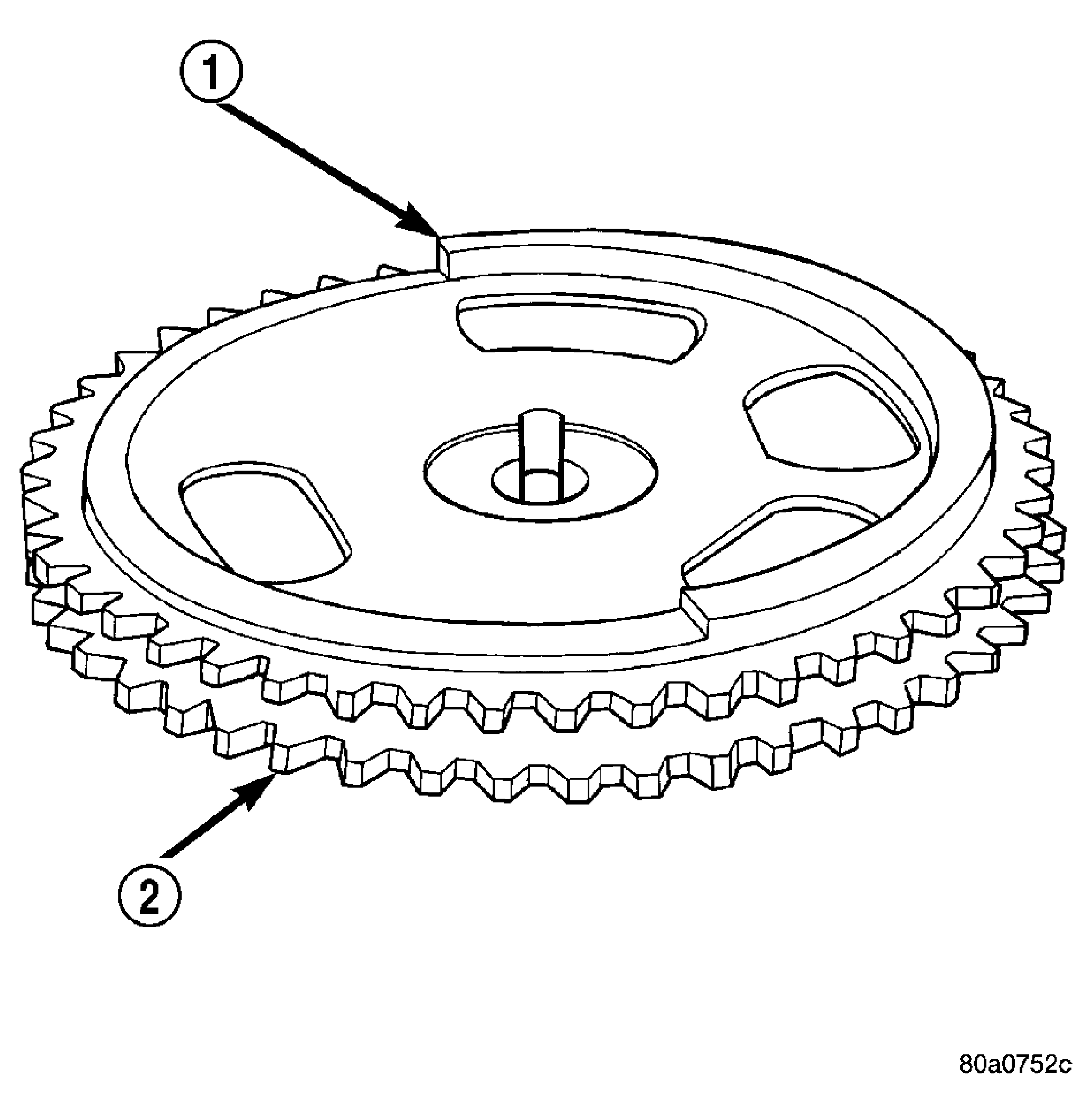

Fig 3: Camshaft Sprocket

Courtesy of DAIMLERCHRYSLER CORP.
