Inlet Air Temperature Sensor: Removal

NOTE: Take care not to damage the thermistor pill when removing the sensor.
  1. Remove the battery cover and disconnect the negative battery cable.
  2. Disconnect the electrical connector from the inlet temperature sensor. See Fig 1.
  3. Remove sensor from inlet hose.

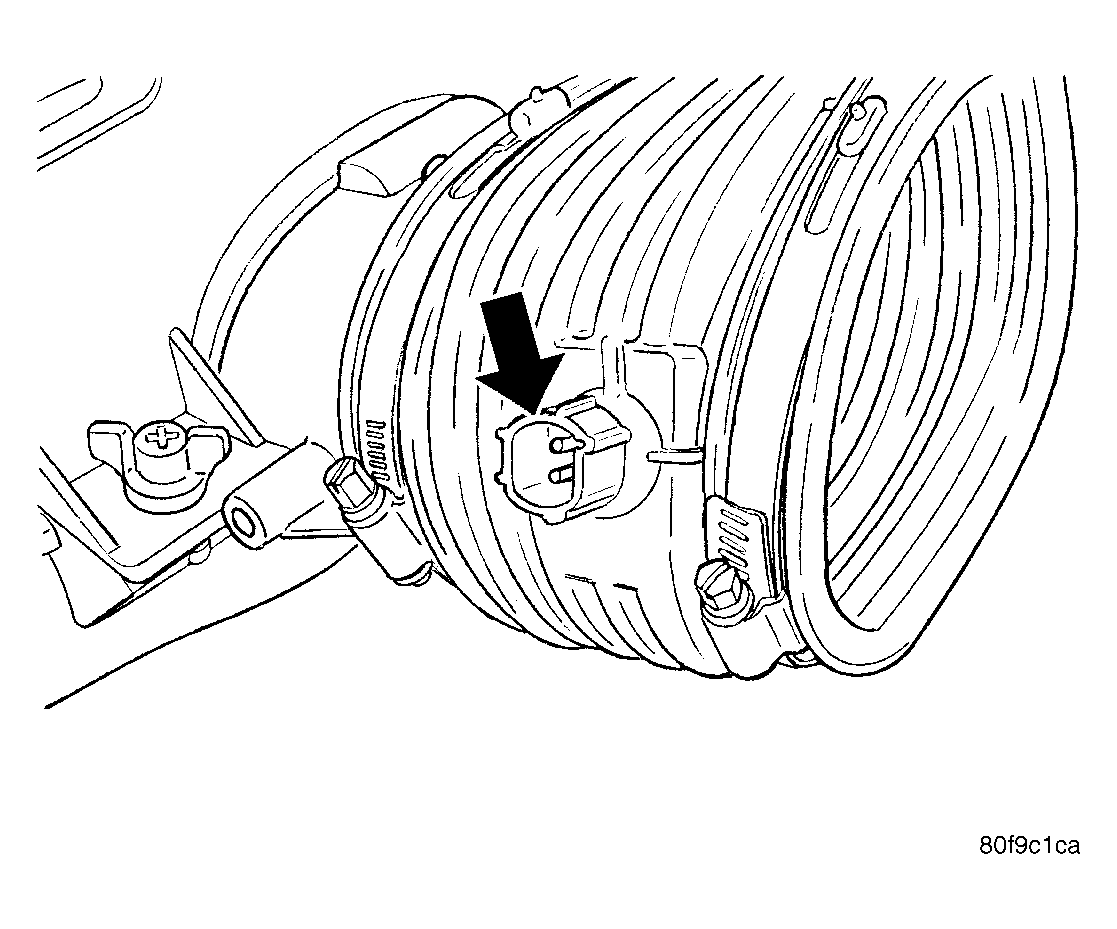

Fig 1: Inlet Air Temp Sensor
GC0006579Courtesy of DAIMLERCHRYSLER CORP.
