Inlet Air Temperature Sensor: Installation

NOTE: Take care not to damage the open thermistor pill when installing the sensor.
  1. Install sensor, use a little water to aid in insertion of sensor. See Fig 1.

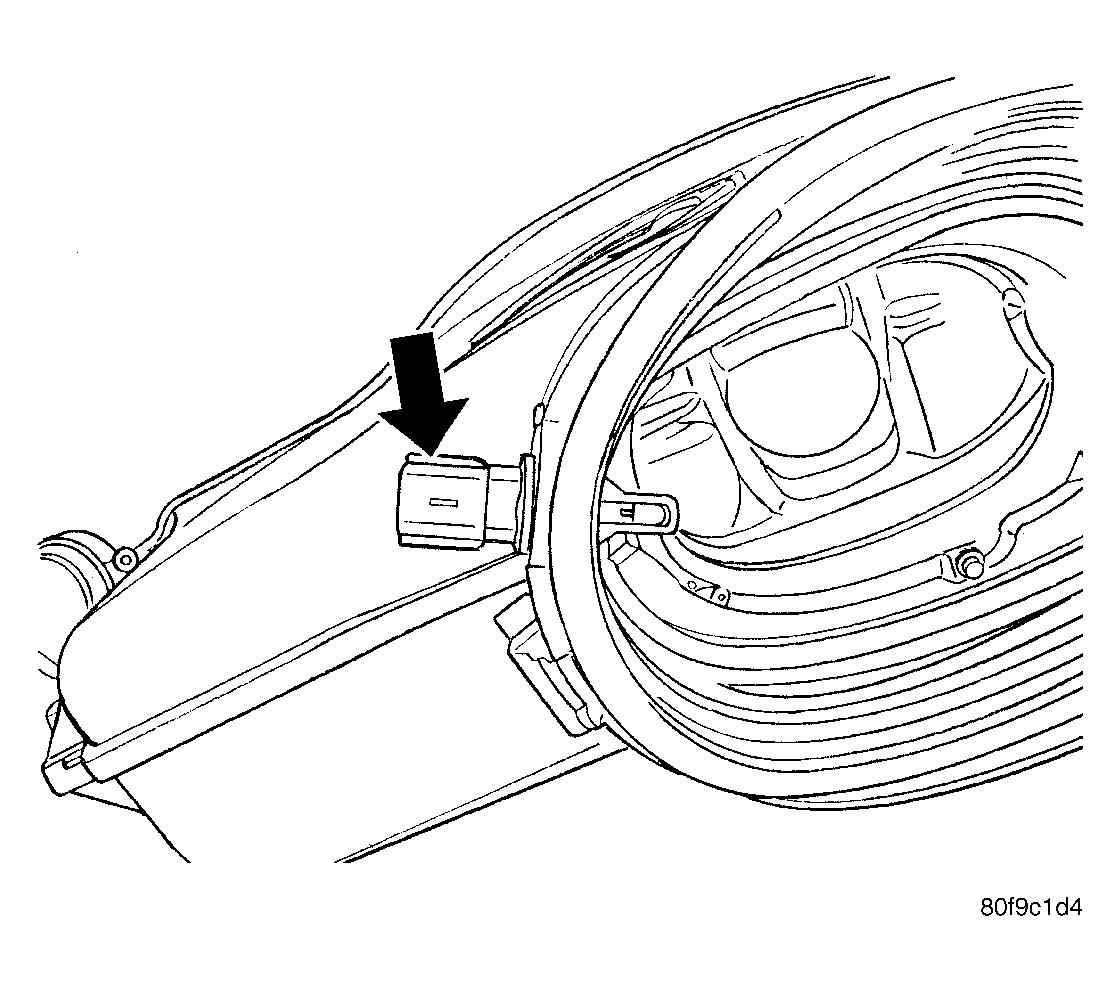

    Fig 1: Sensor Orientation
    GC0006580Courtesy of DAIMLERCHRYSLER CORP.
  2. Make sure that the rib on the sensor matches up with the rib on the inlet hose. The thermistor pill should be in direct contact with the inlet air stream.
  3. Connect the electrical connector.
  4. Connect the negative battery cable and install battery cover.
