Fuel Level Sensor: Removal

Remove fuel pump module. Refer to FUEL PUMP MODULE  . See Fig 1.

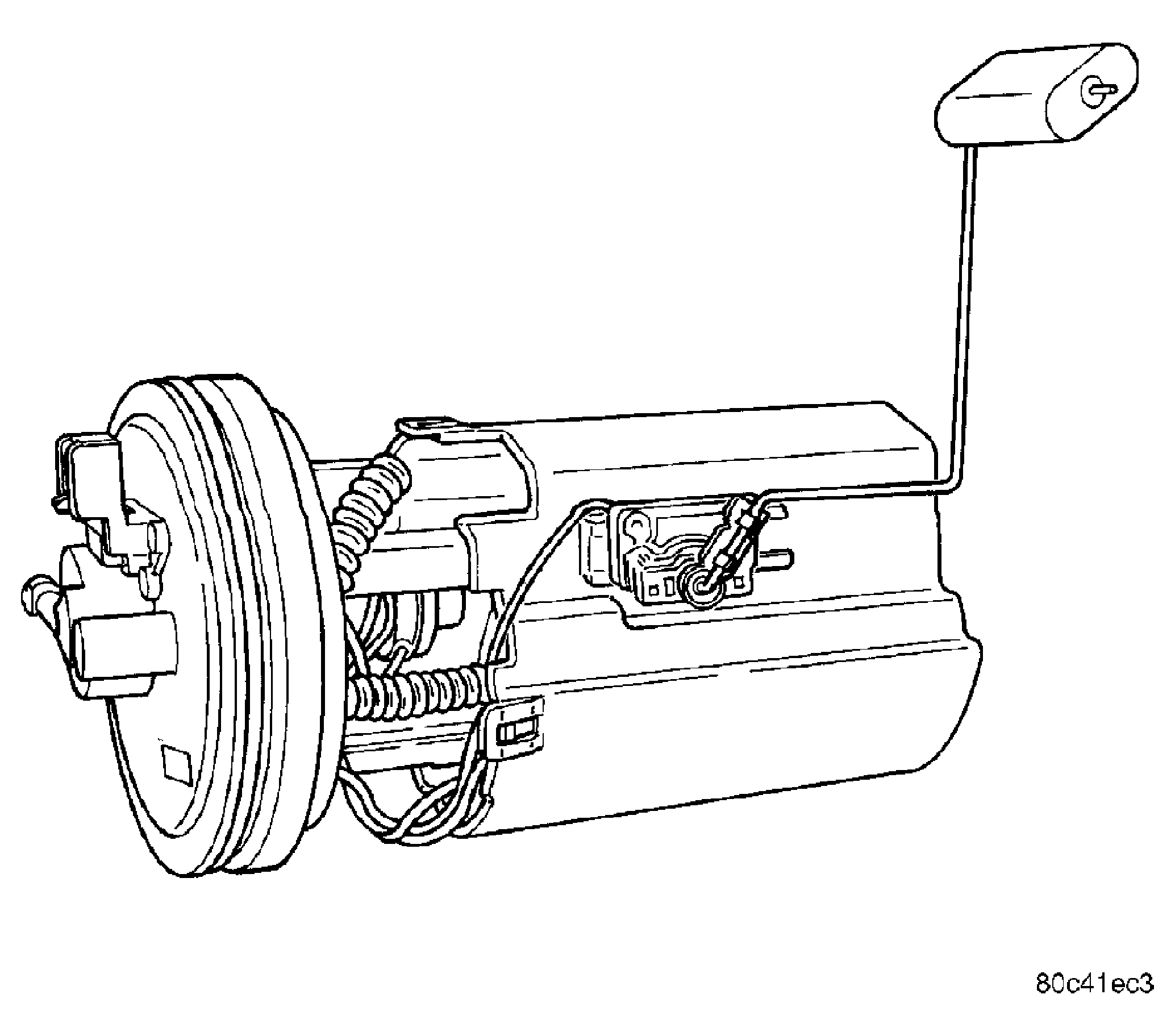

Fig 1: Fuel Pump Module

Courtesy of DAIMLERCHRYSLER CORP.

1. Depress retaining tab and remove the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector. See Fig 2.

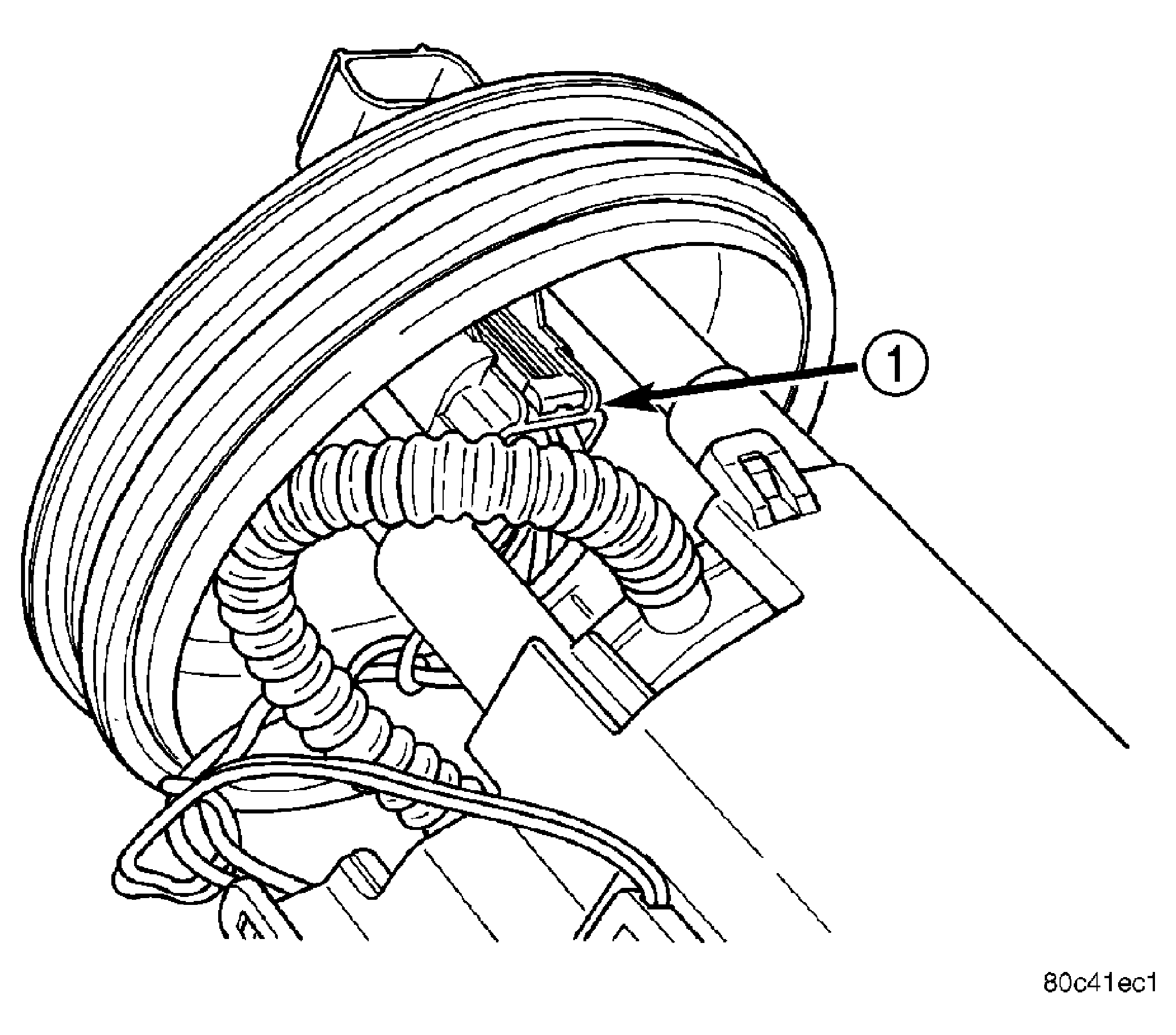

   Fig 2: Fuel Pump/Level Sensor Electrical Connector

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - ELECTRICAL CONNECTOR

2. Pull out the locking wedge. See Fig 3.

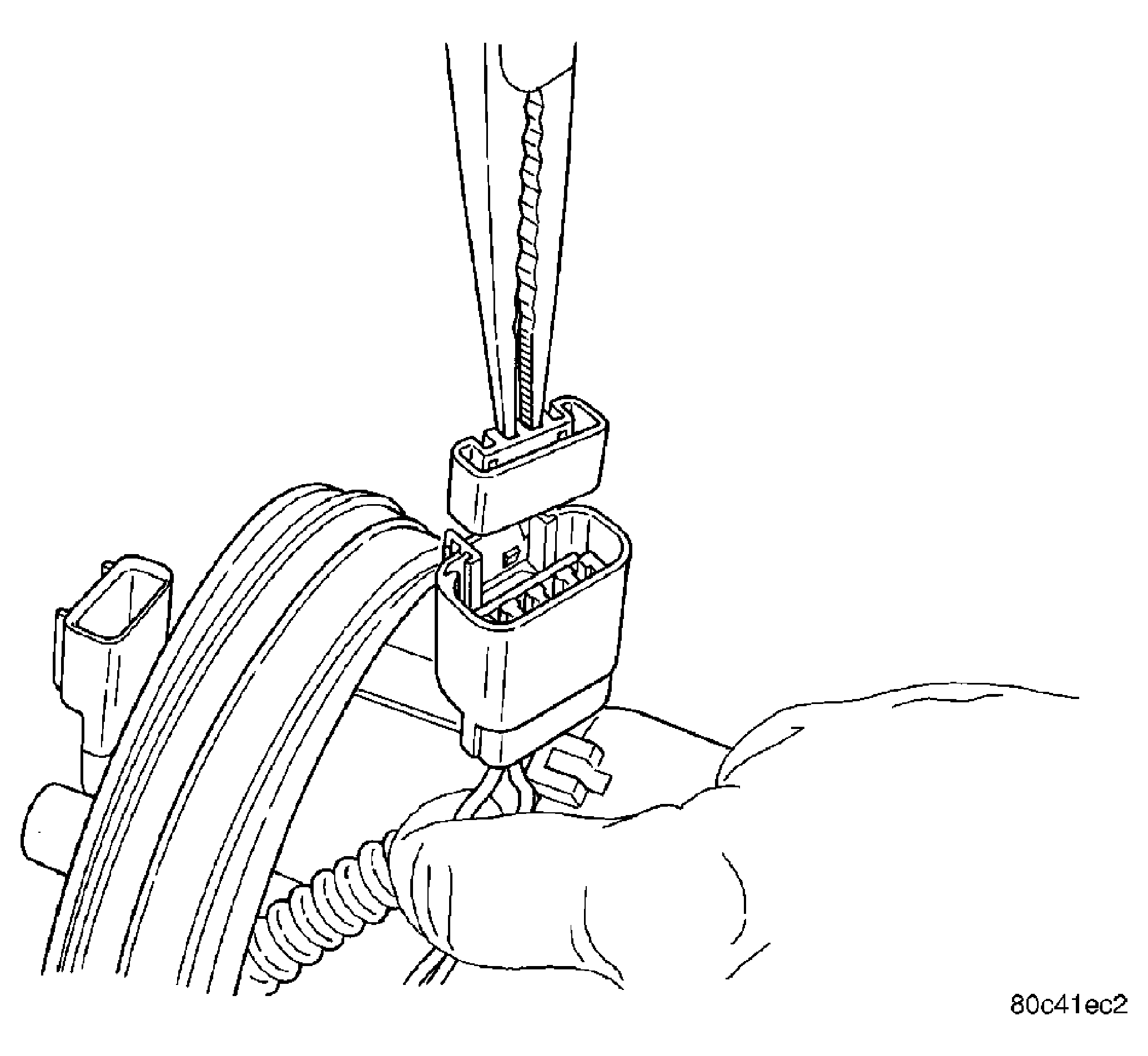

   Fig 3: Wedge Lock

   Courtesy of DAIMLERCHRYSLER CORP.
3. Using a small screwdriver lift locking finger away from terminal and push terminal out of connector. See Fig 4.

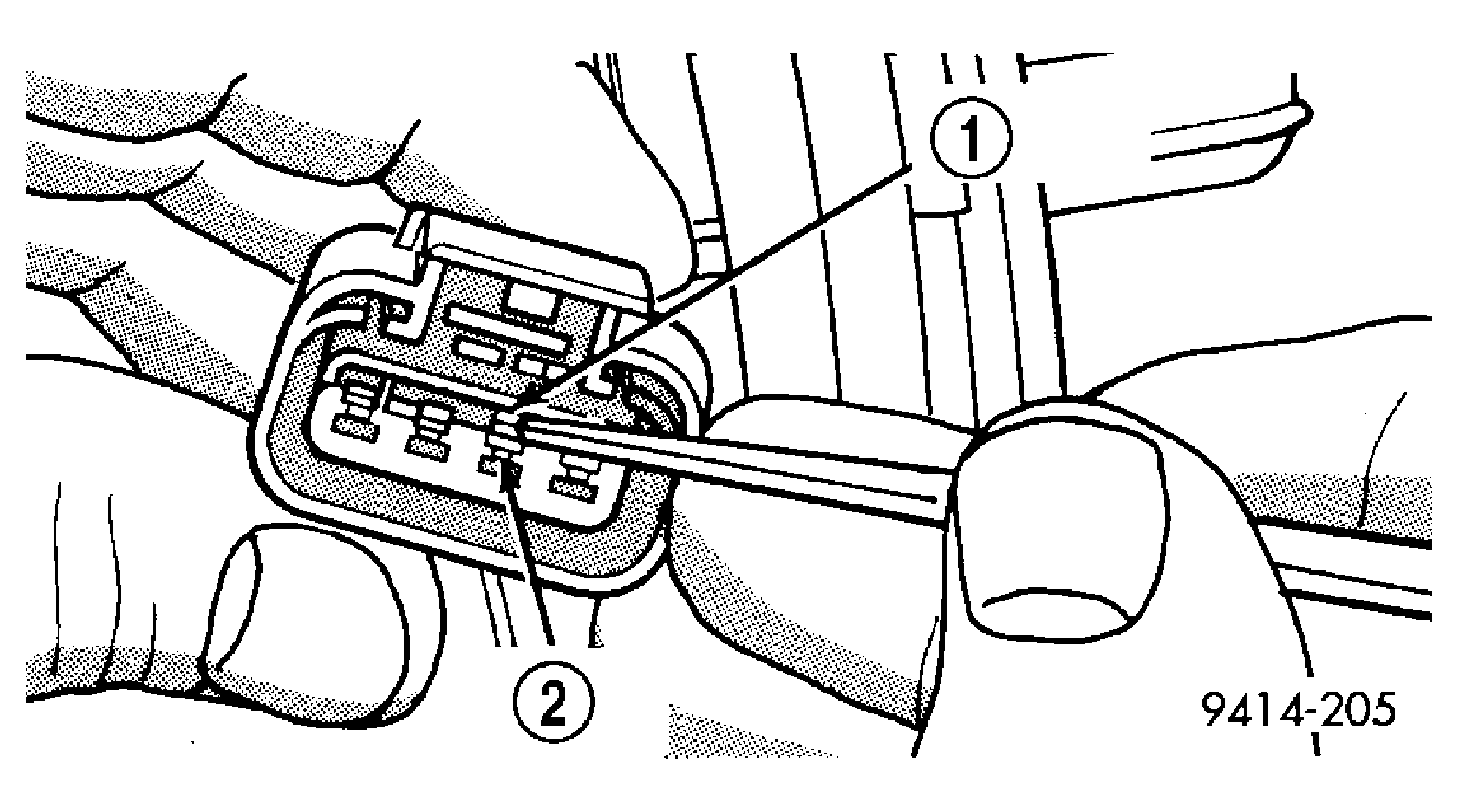

   Fig 4: Wire Terminal Locking Finger

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - LOCKING FINGER

   2 - WIRE TERMINAL

4. Push level sensor signal and ground terminals out of the connector. See Fig 4.
5. Push down on the tab and push level sensor down and out of channel on the side of the pump module. See Fig 5.

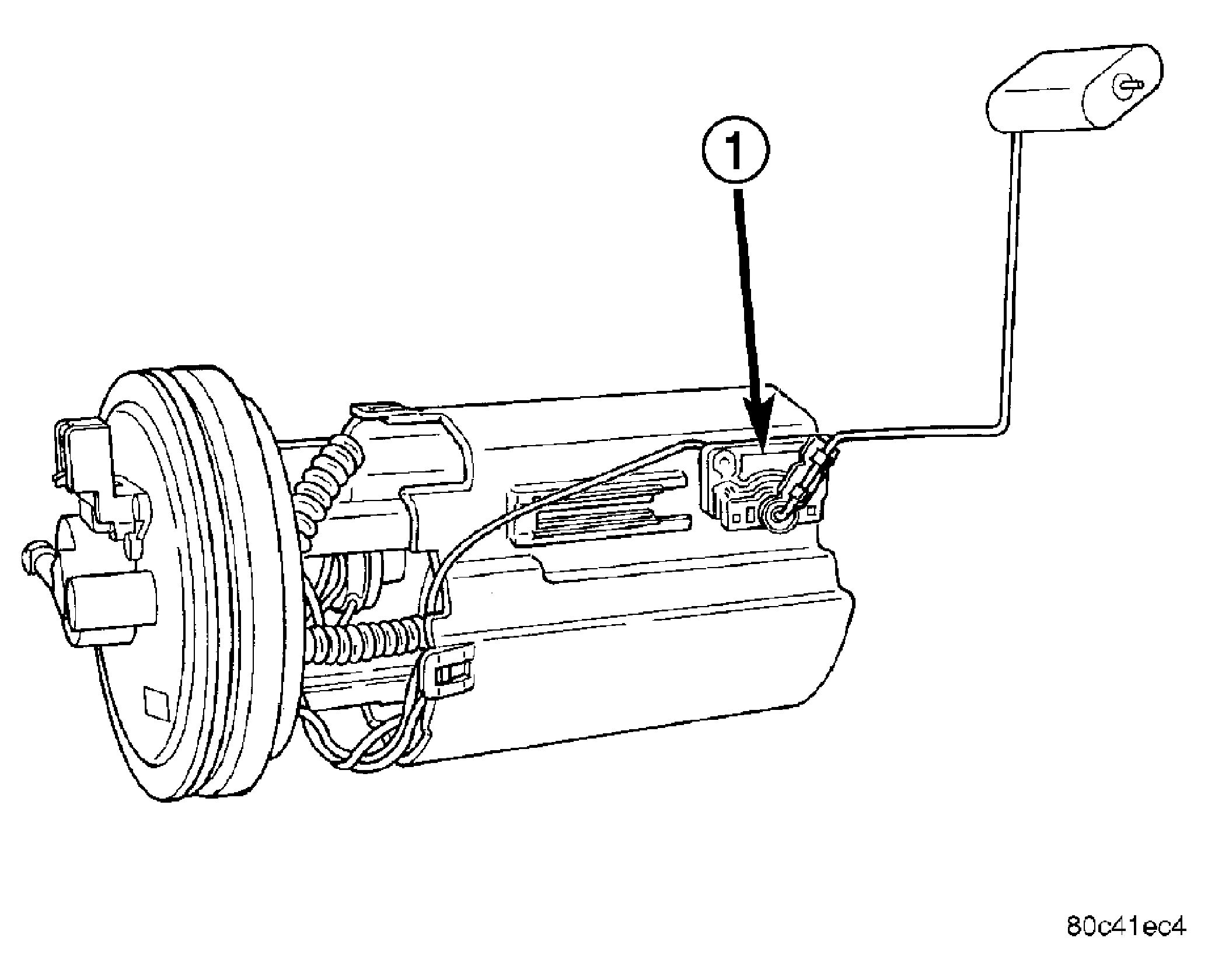

Fig 5: Fuel Level Sensor

Courtesy of DAIMLERCHRYSLER CORP.
