Battery Temperature Sensor: Removal

  1. Make sure ignition switch is in the OFF position and all accessories are OFF.
  2. Refer to BATTERY SYSTEM for removal of battery to access the battery temperature sensor. See Fig 1 and Fig 2
    Fig 1: BATTERY HOLD DOWN
    GC0036401Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect electrical connector.
  4. Remove Battery Temperature Sensor from battery tray.

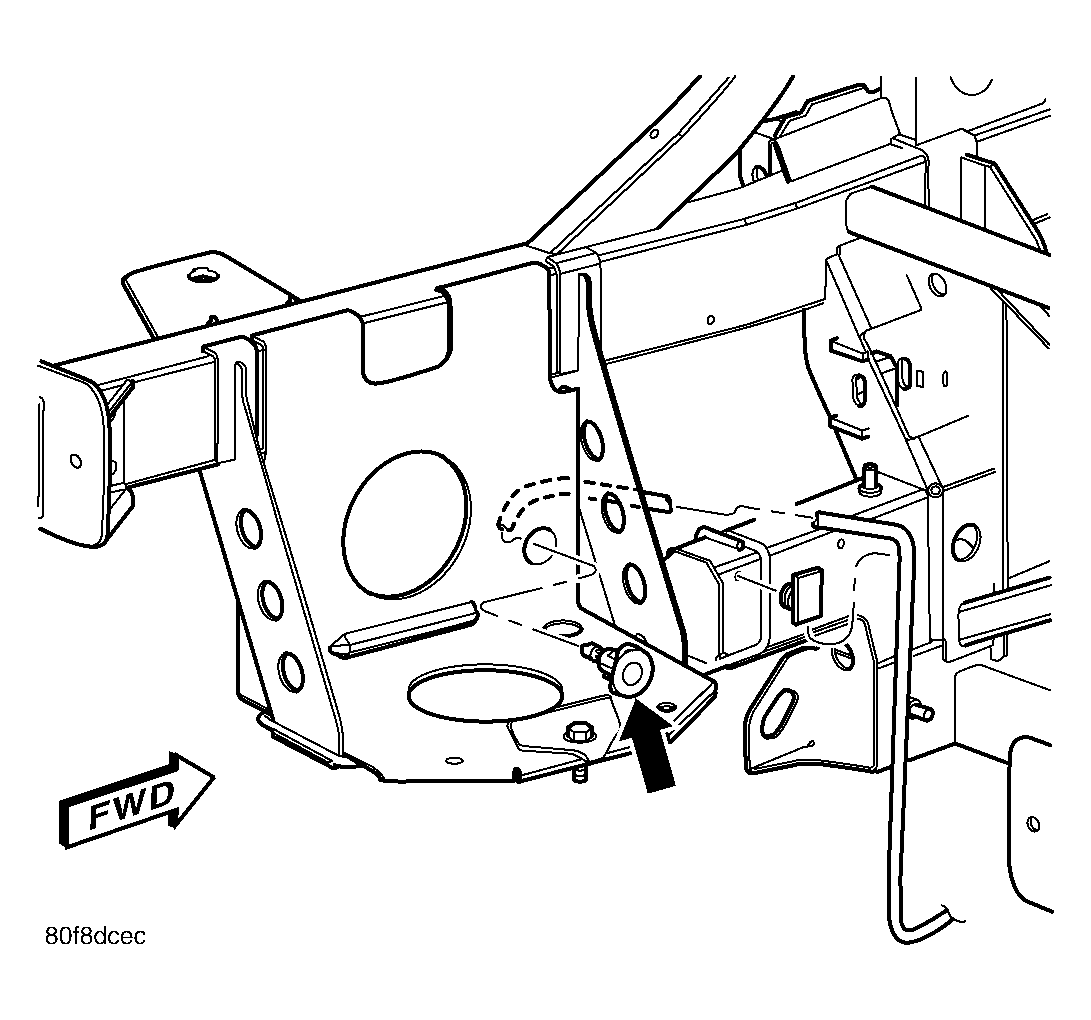

Fig 2: BATTERY TEMPERATURE SENSOR
GC0036400Courtesy of DAIMLERCHRYSLER CORP.
