Lock Cylinder: Removal

Remove the three screws and position aside the lock cylinder cable bracket. See Figure
Remove the nut and remove the lock cylinder. See Fig 1

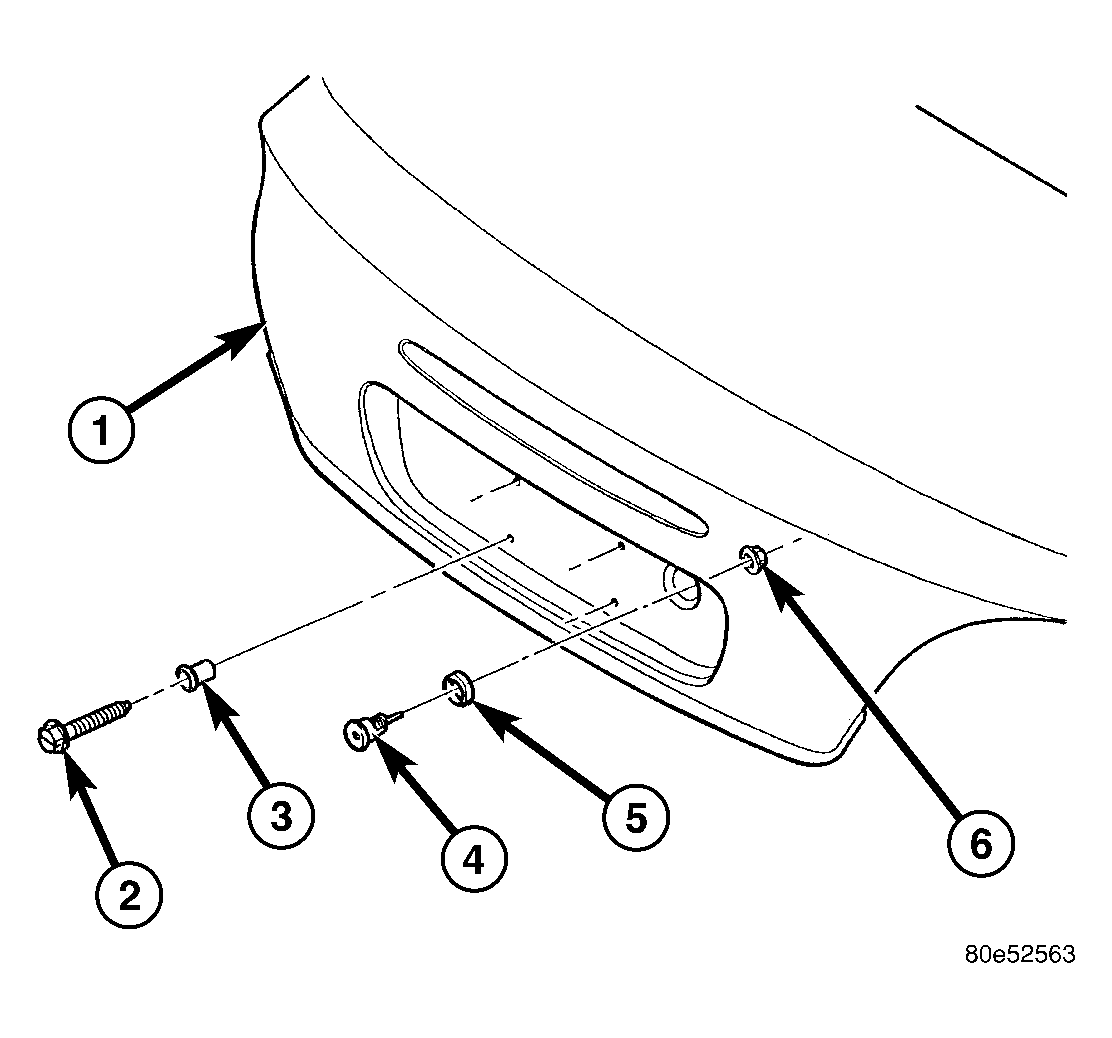

Fig 1: Lock Cylinder

Courtesy of DAIMLERCHRYSLER CORP.

1 - DECKLID

2 - LICENSE PLATE SCREW

3 - RIVET NUT

4 - LOCK SET

5 - LOCK CYLINDER GASKET

6 - SPECIAL LOCK CYLINDER NUT
