Body & Frame: Windows: Interior/Exterior: DECKLID/Liftgate: Latch: Removal

1. Remove the three screws and remove the key cylinder cable bracket. See Fig 1
2. Using a grease pencil or equivalent, lightly mark the outline of the latch on decklid to assist installation.
3. Remove bolts attaching latch to decklid. See Fig 2.
4. Remove latch from vehicle.

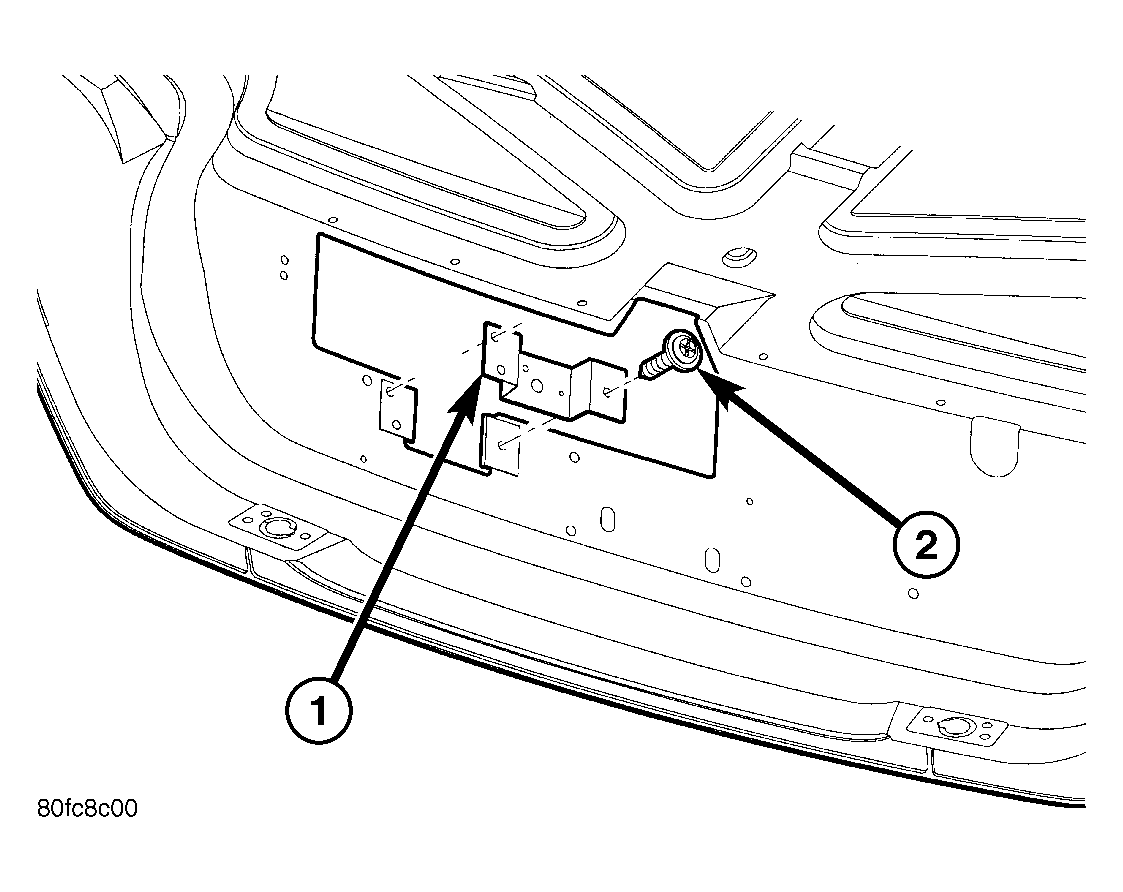

Fig 1: Lock Cylinder Cable Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRACKET

2 - SCREWS (3)

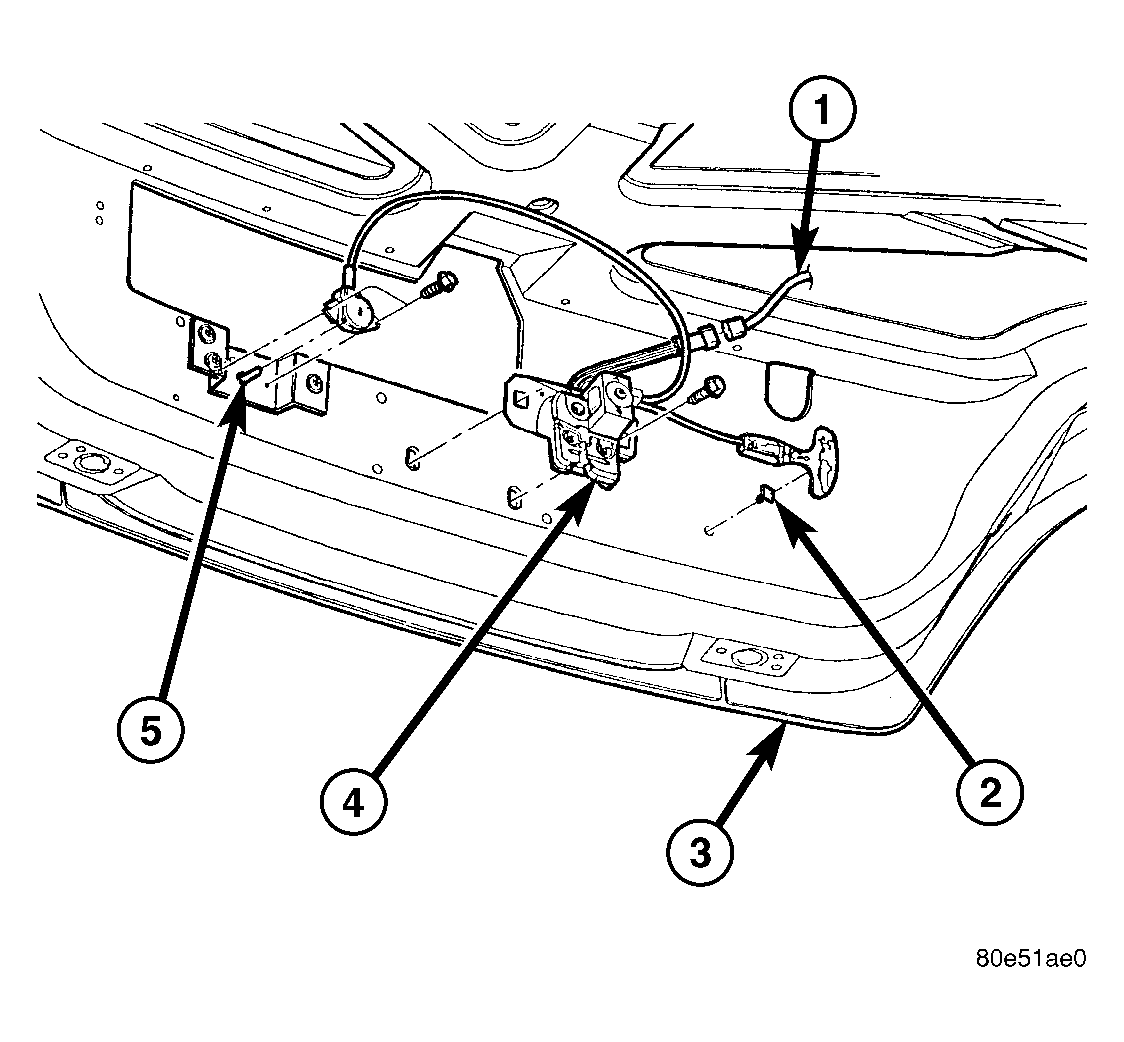

Fig 2: Decklid Latch Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - WIRE HARNESS

2 - PUSH PIN

3 - DECKLID

4 - DECKLID LATCH CABLE ASSEMBLY

5 - LOCK CYLINDER CABLE BRACKET
