Gas Prop: Removal

Open the decklid and support.
Using a small flat bladed tool, or equivalent, release the upper retaining clips while pulling the ball socket away from the ball stud. See Fig 1
NOTE: Lift the clips only enough to release the ball studs. See Fig 2
Slide the lower plastic retaining clip up. See Fig 3
Remove the support cylinder. See Fig 4

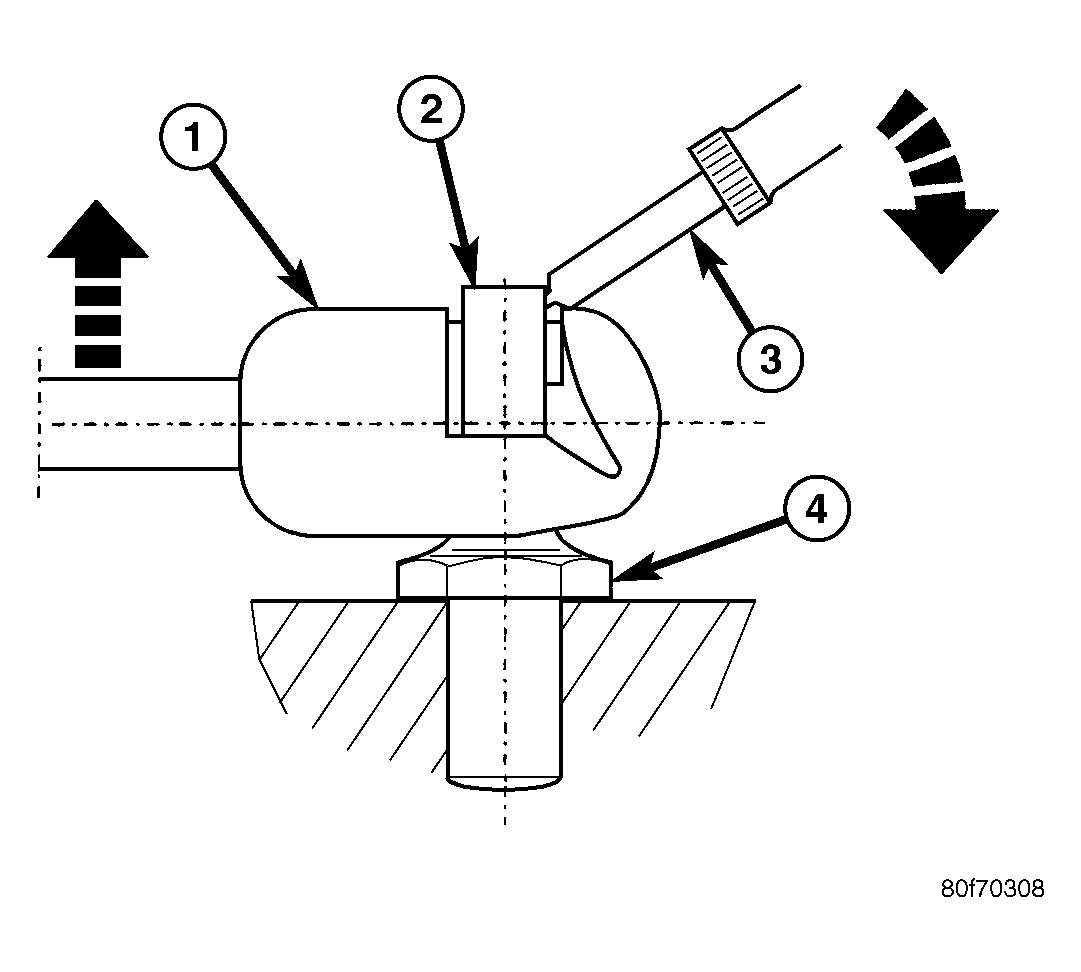

Fig 1: Upper Support Cylinder Removal - Typical

GC0036523

Courtesy of DAIMLERCHRYSLER CORP.

1 - BALL SOCKET

2 - RETAINING CLIP

3 - FLAT BLADED TOOL

4 - BALL STUD

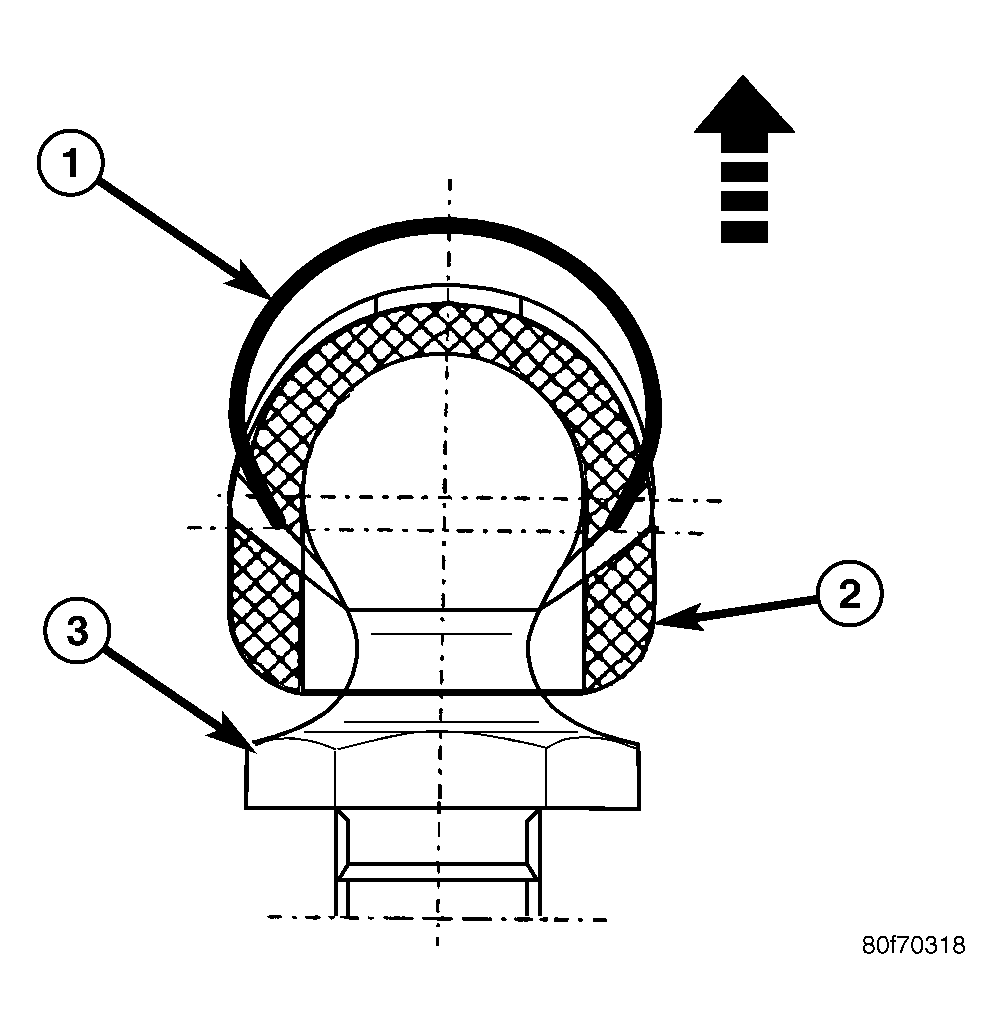

Fig 2: Upper Support Cylinder Retaining Clip

GC0036524

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINING CLIP

2 - BALL SOCKET

3 - BALL STUD

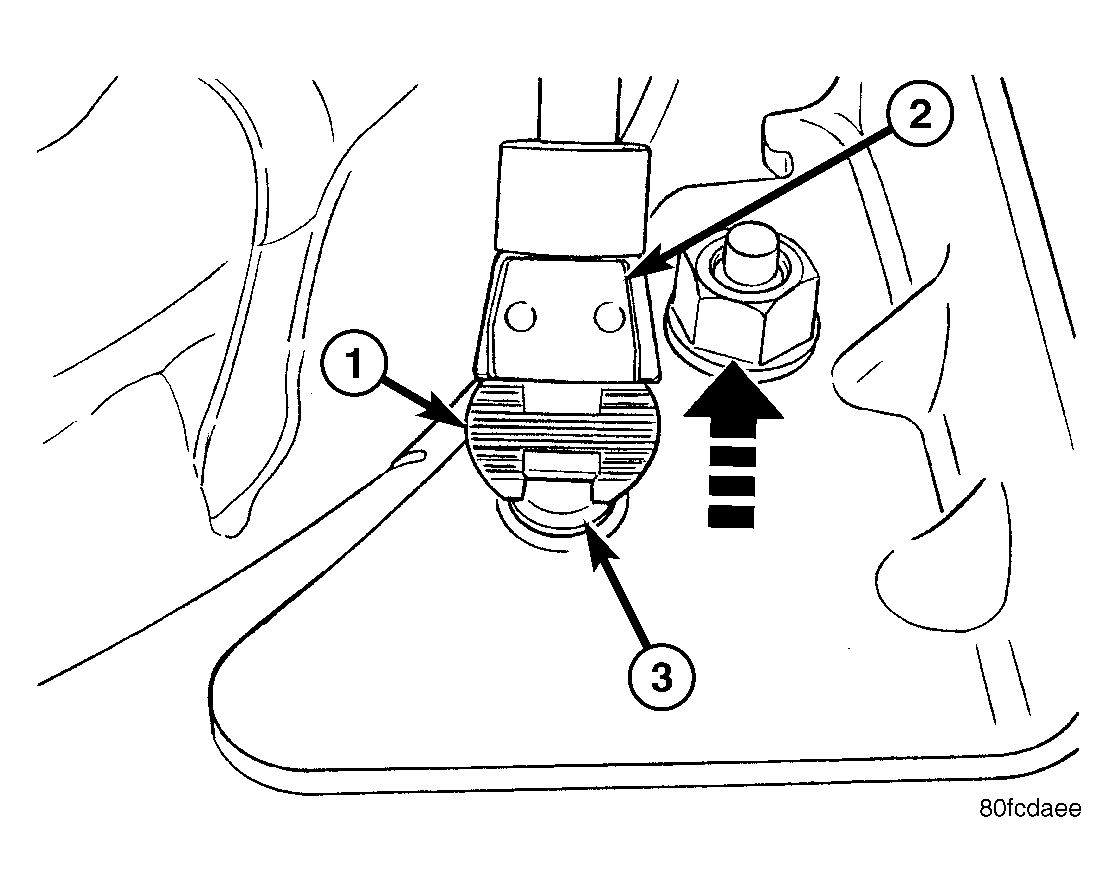

Fig 3: Lower Gas Prop

GC0036525

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINER CLIP

2 - GAS PROP BALL SOCKET

3 - BALL STUD

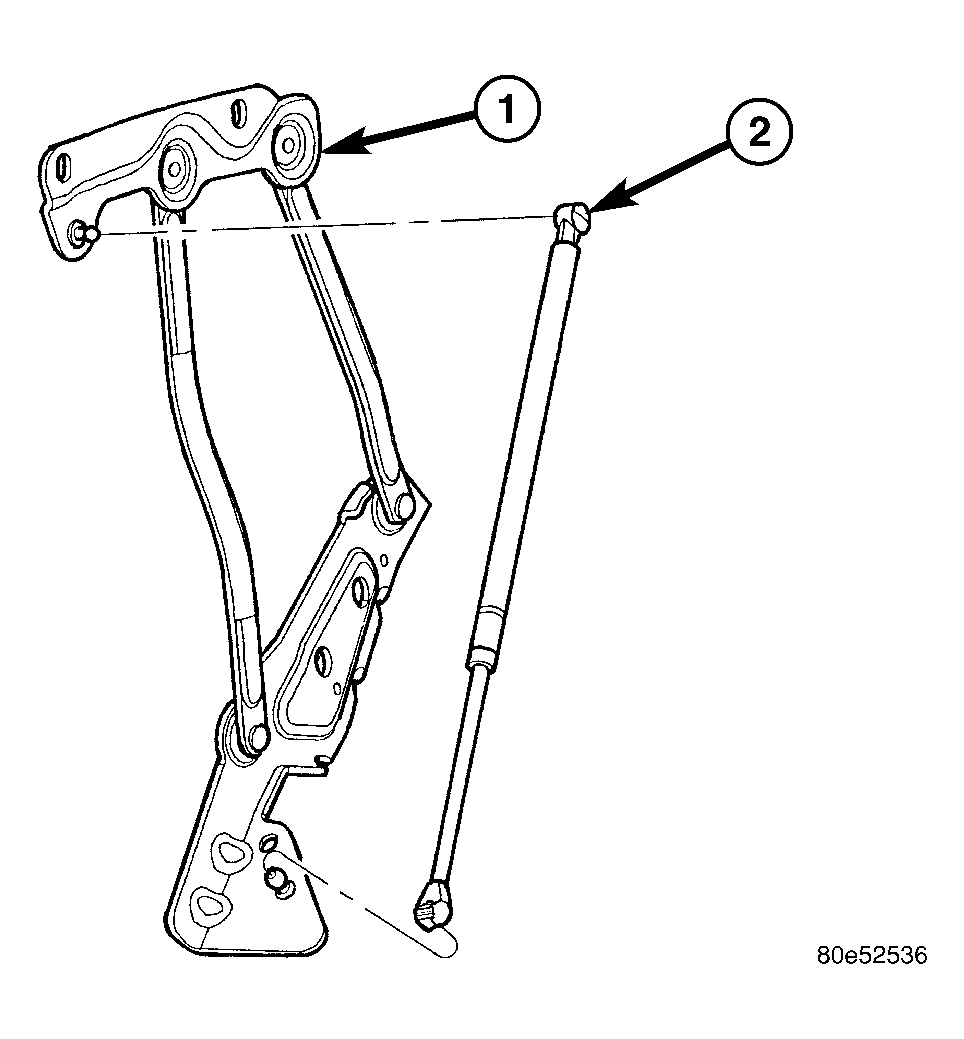

Fig 4: Gas Prop

GC0036522

Courtesy of DAIMLERCHRYSLER CORP.

1 - DECKLID HINGE ASSEMBLY

2 - GAS PROP
