Engine Block Heater: Installation

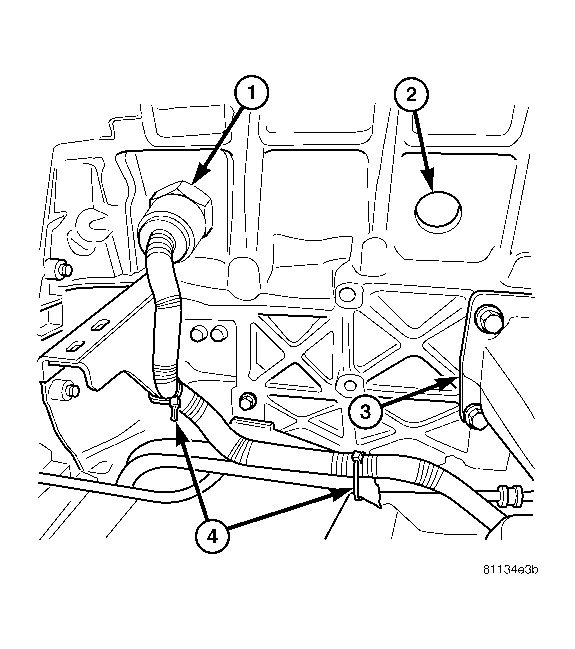

  1. Screw the block heater into the core hole. See Figure.
  2. Route the heater wiring harness away from and interference and secure with wiring tie straps.
  3. Refill the cooling system.
  4. Connect the negative battery cable.
  5. Start the engine and inspect for leaks.
