Seat Belt Turning Loop Adjuster: Installation

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid personal injury or death, during and following any seat belt service, carefully inspect all seat belts, buckles, mounting hardware, retractors, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Never attempt to repair a seat belt component. Always replace damaged or faulty seat belt components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

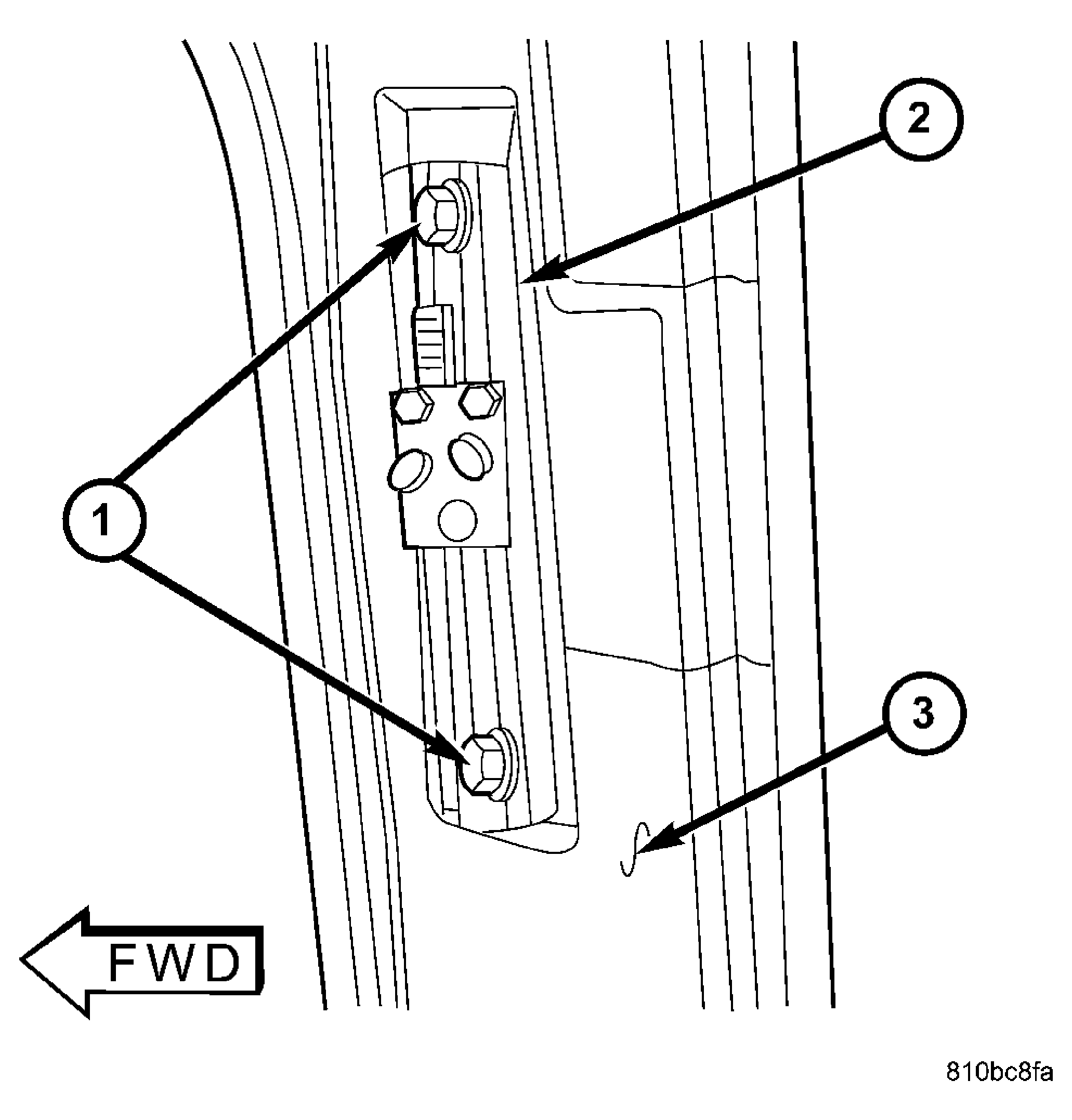

  1. Position the seat belt turning loop height adjuster onto the inner B-pillar. See Figure.
  2. Install and tighten the two screws that secure the seat belt turning loop height adjuster to the upper inner B-pillar. Tighten the screws to 35 N.m (26 ft. lbs.).

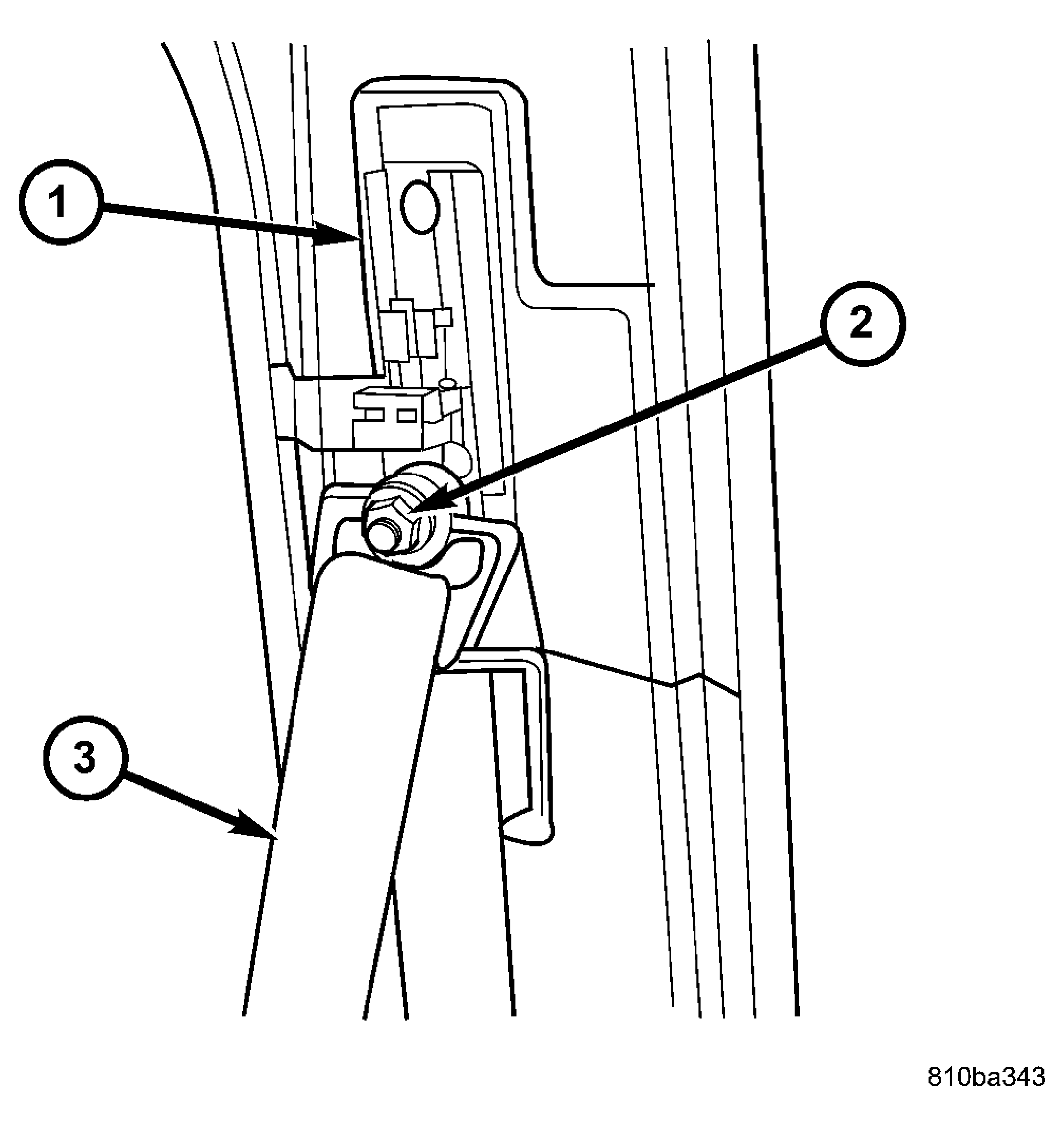

  3. Position the front seat belt turning loop onto the height adjuster on the upper B-pillar. See Figure.
  4. Install and tighten the nut that secures the front seat belt turning loop to the height adjuster. Tighten the nut to 35 N.m (26 ft. lbs.).

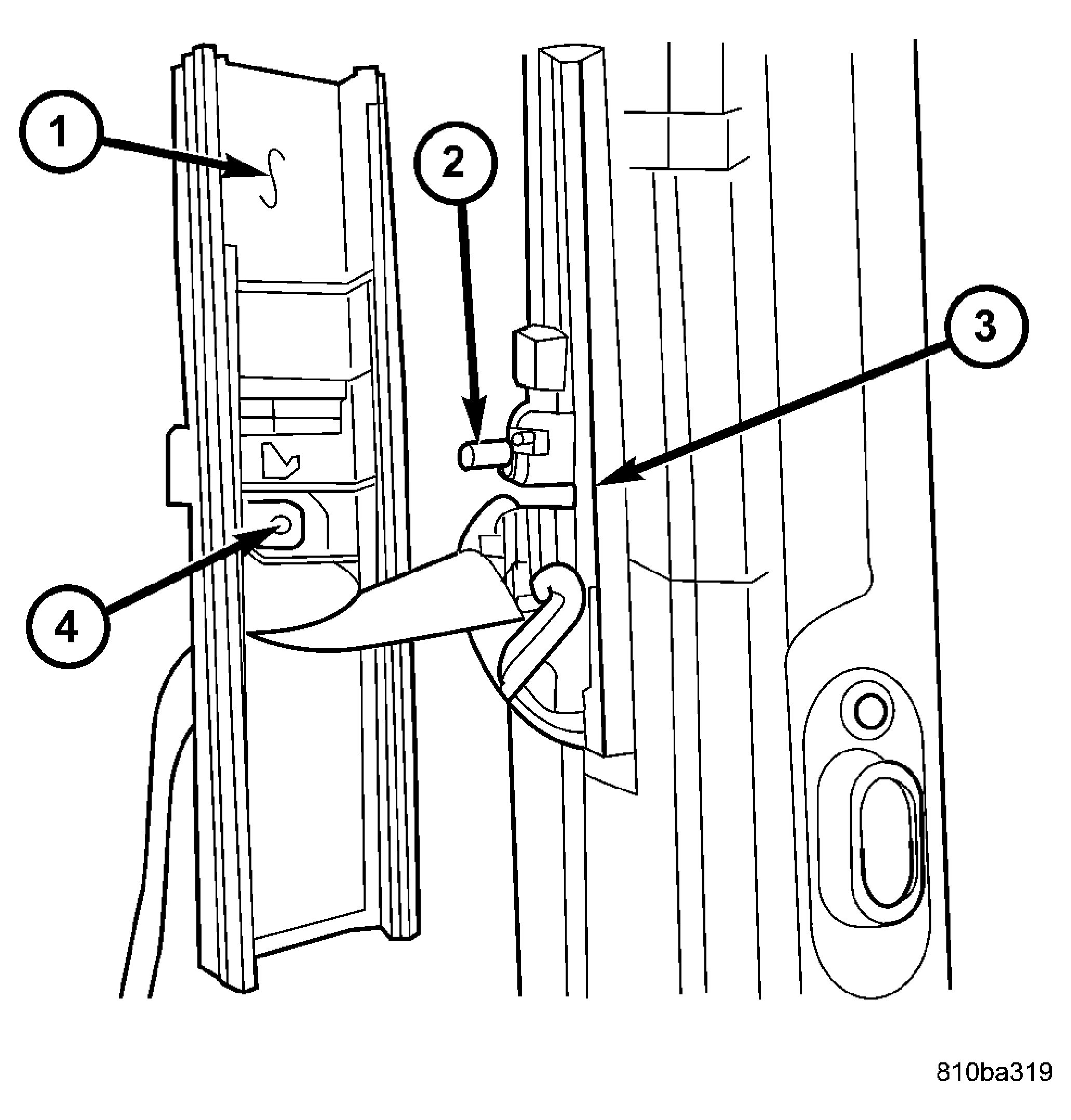

  5. Position the height adjuster trim to the upper B-pillar so that the driver on the back of the trim engages the lug of the height adjuster. See Figure.
  6. Reinstall the trim panel onto the inside of the B-pillar. (Refer to BODY/INTERIOR/B-PILLAR TRIM - INSTALLATION) .
  7. Reconnect the battery negative cable.
